Front Stabilizer Bar: Components: Illustration

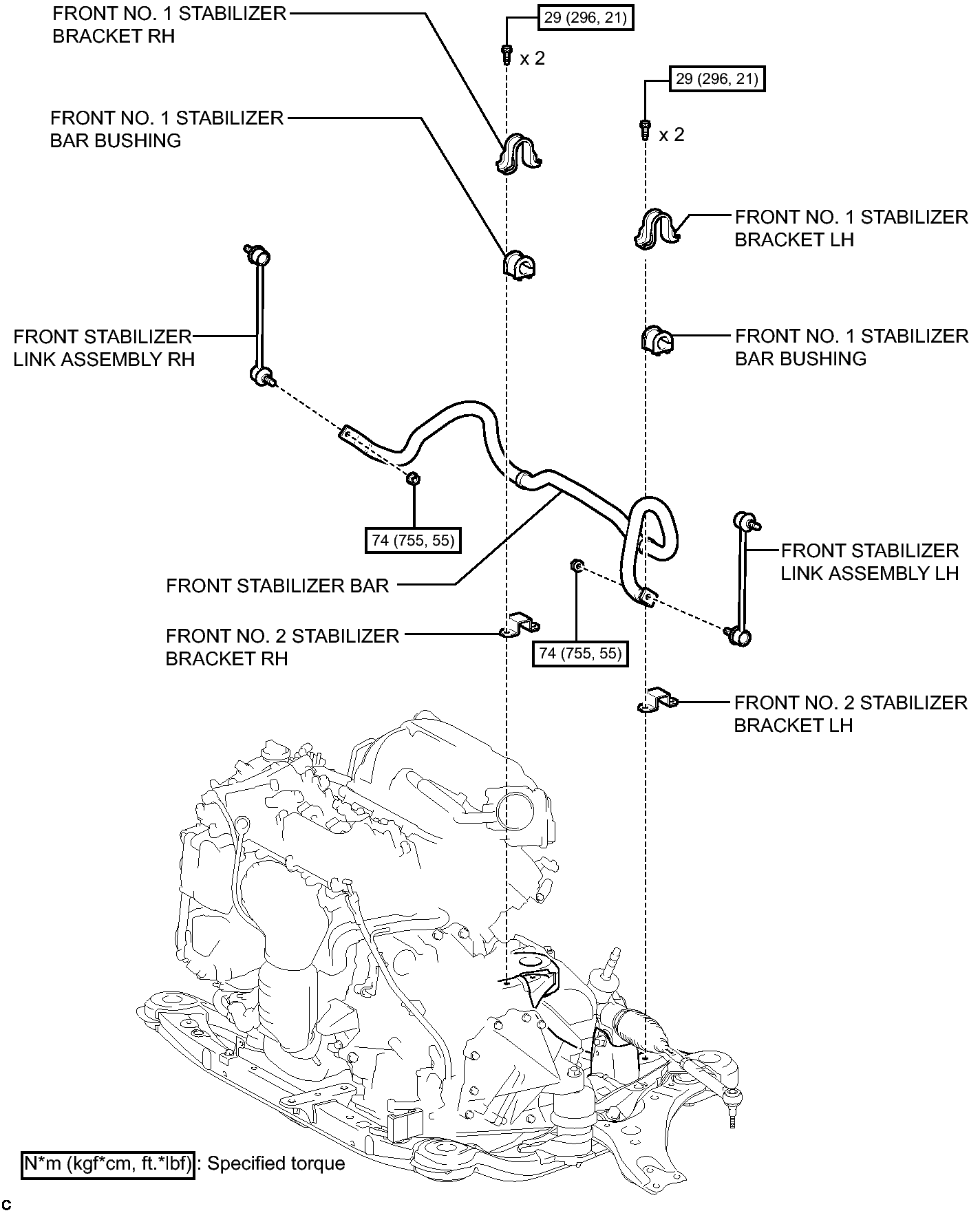

Fig 1: Identifying Front Stabilizer Bar Replacement Components With Torque Specifications

GTY300802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
