Front Shock Absorber: Components: Illustration

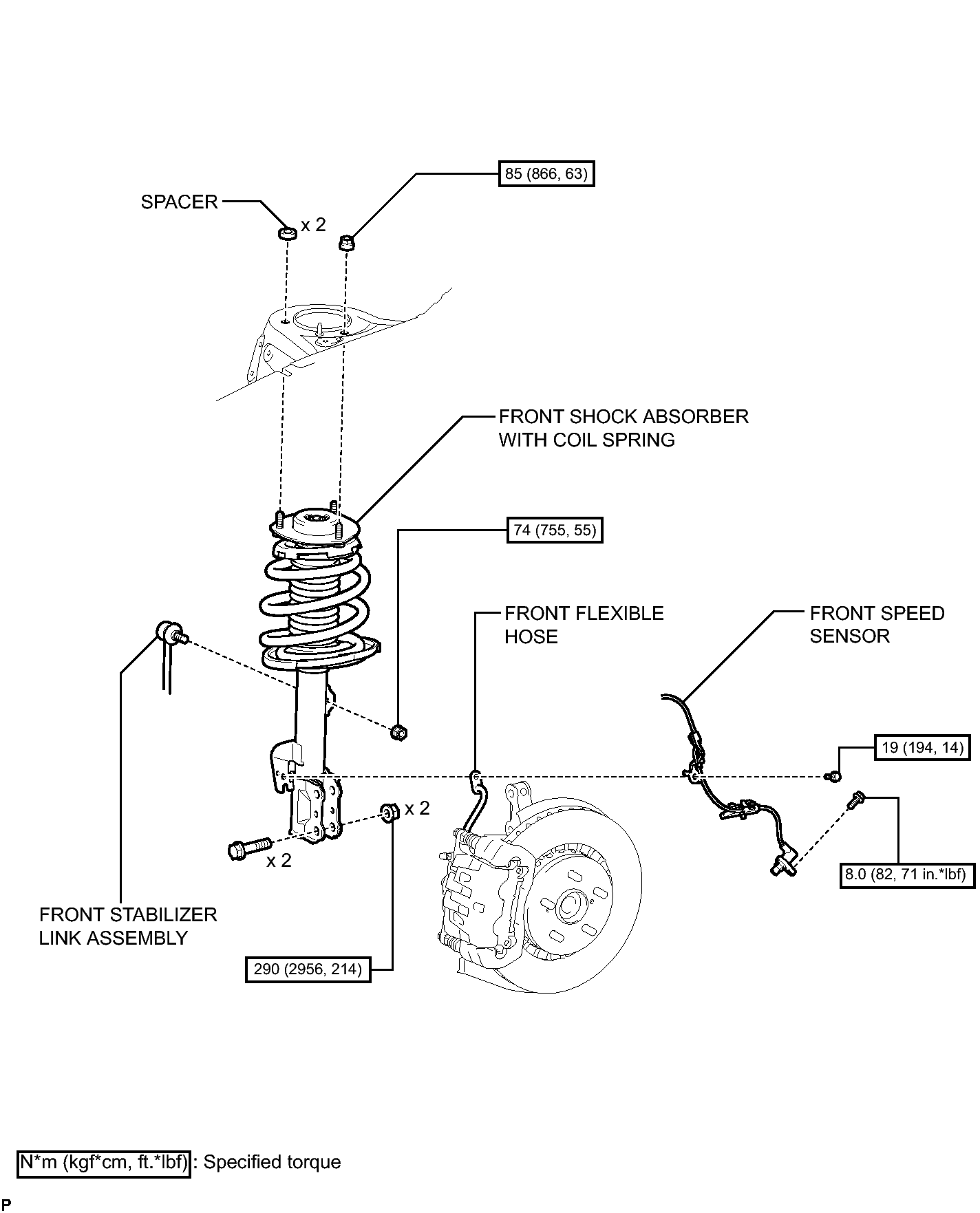

Fig 1: Identifying Front Shock Absorber Replacement Components With Torque Specifications (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

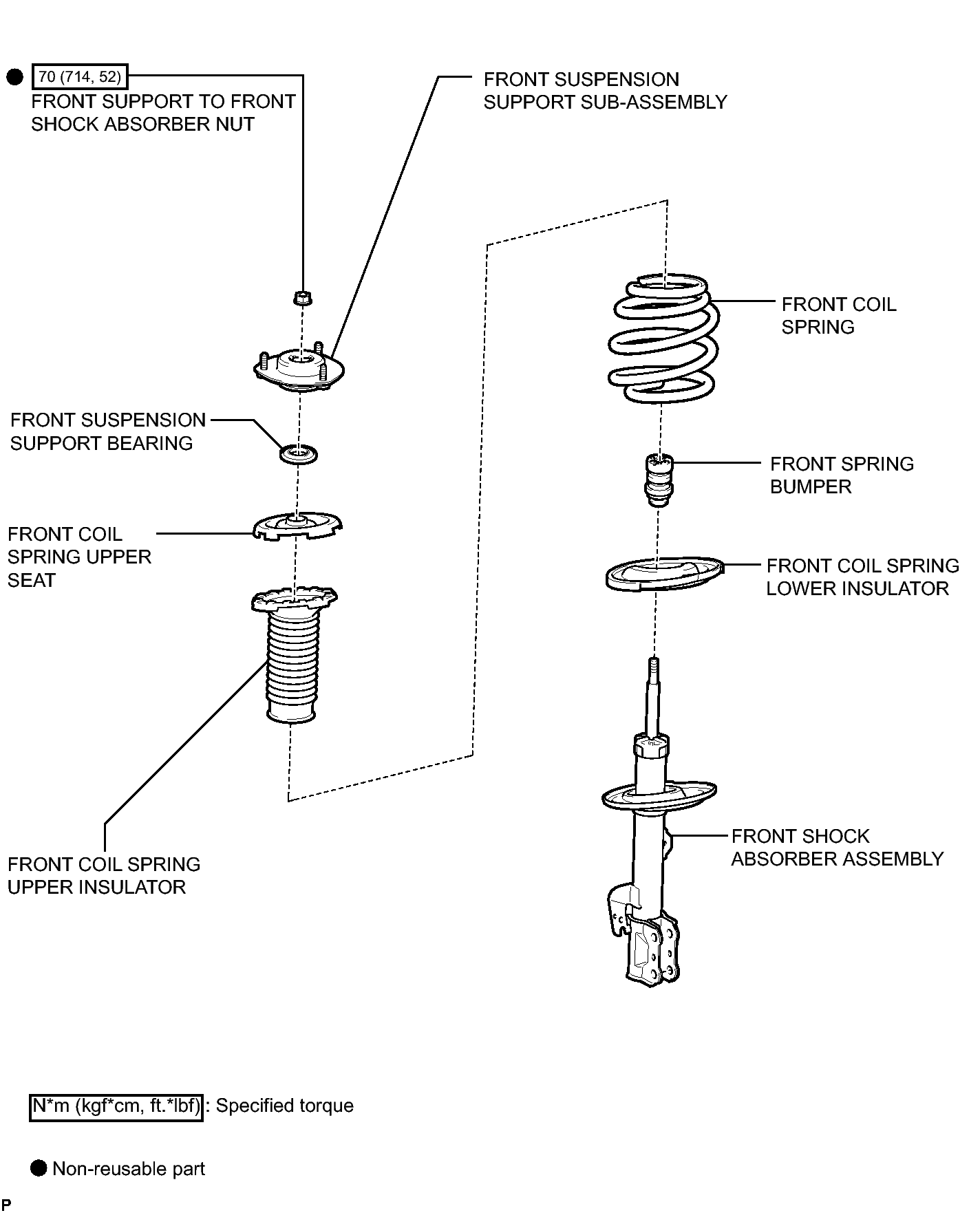

Fig 1: Identifying Front Shock Absorber Replacement Components With Torque Specifications (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Shock Absorber Replacement Components With Torque Specifications (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
