Driver Side Knee Airbag Assembly: Installation: Installation

  1. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Check that the ignition switch is off.
    2. Check that the battery negative (-) cable is disconnected.
      WARNING:

      Wait for at least 90 seconds after disconnecting the cable to prevent airbag deployment.

    3. Install the DLC3 to the driver side knee airbag assembly with the 2 claws.
      Fig 1: Identifying Data Link Connector Claws
      GTY178179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the connector to the driver side knee airbag assembly.

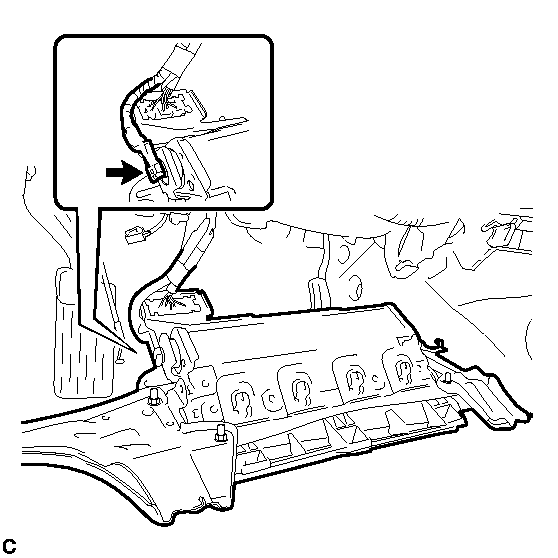

      Fig 2: Locating Driver Side Knee Airbag Connector
      GTY186631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When handling the airbag connector, take care not to damage the airbag wire harness.

    5. Support the driver side knee airbag assembly with one hand as shown in the illustration.
      Fig 3: Supporting Driver Side Knee Airbag Assembly With Hand
      GTY168942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Temporarily install the driver side knee airbag assembly with the 2 hooks.

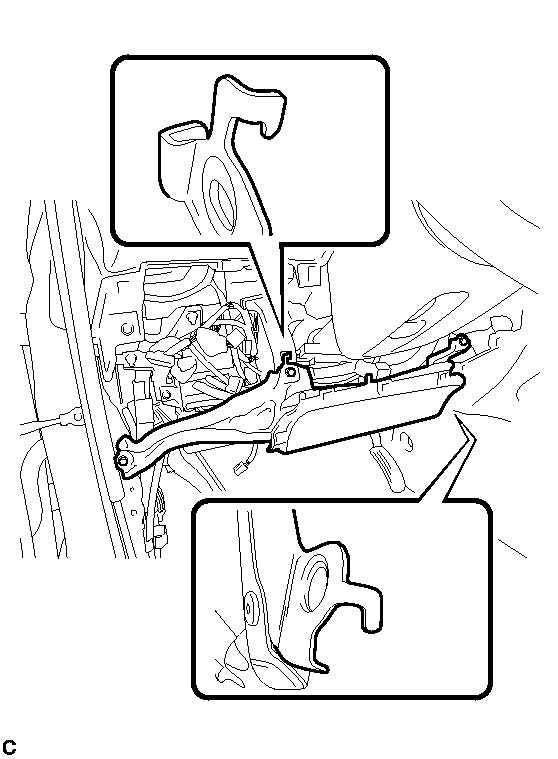

      Fig 4: Identifying Driver Side Knee Airbag Assembly Hooks
      GTY203809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the driver side knee airbag assembly with the 4 bolts.

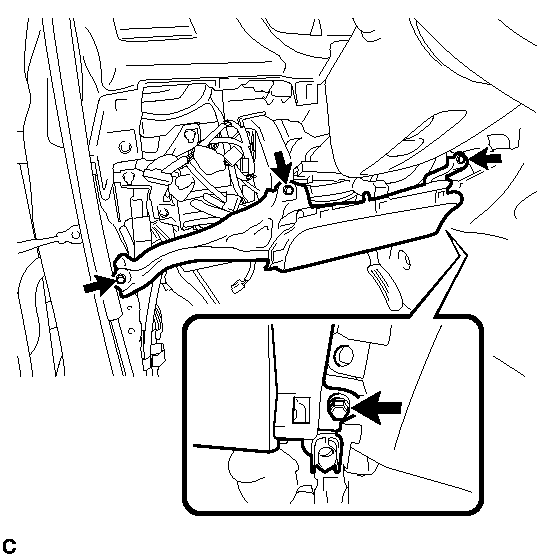

      Fig 5: Locating Driver Side Knee Airbag Assembly Bolts
      GTY186310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 24
  3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  . Refer to INSTALLATION - Step 89
  4. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 90
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected, refer to INITIALIZATION .

  6. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light, refer to DIAGNOSIS SYSTEM .
  7. INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY  . Refer to INSTALLATION - Step 119
  8. INSTALL DECK BOARD ASSEMBLY  . Refer to INSTALLATION - Step 120
