PTC Heater Assembly: Removal: Removal

  1. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to REMOVAL - Step 12
  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System)  . Refer to REMOVAL - Step 13
  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System)  . Refer to REMOVAL - Step 14
  4. REMOVE HEATER CONTROL AND ACCESSORY ASSEMBLY (for Manual Air Conditioning System)  . Refer to REMOVAL - Step 2
  5. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)  . Refer to REMOVAL - Step 3
  6. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)  . Refer to REMOVAL - Step 6
  7. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System)  . Refer to REMOVAL - Step 6
  8. REMOVE FRONT DOOR SCUFF PLATE RH  . Refer to REMOVAL - Step 25
  9. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH  . Refer to REMOVAL - Step 26
  10. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 25
  11. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 26
  12. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 27
  13. REMOVE LOWER REAR CONSOLE BOX  . Refer to REMOVAL - Step 5
  14. REMOVE CONSOLE BOX ASSEMBLY  . Refer to REMOVAL - Step 7
  15. REMOVE FRONT NO. 2 CONSOLE BOX INSERT  . Refer to REMOVAL - Step 33
  16. REMOVE NO. 3 AIR DUCT SUB-ASSEMBLY
    1. Disengage the 3 claws and remove the No. 3 air duct sub-assembly as shown in the illustration.

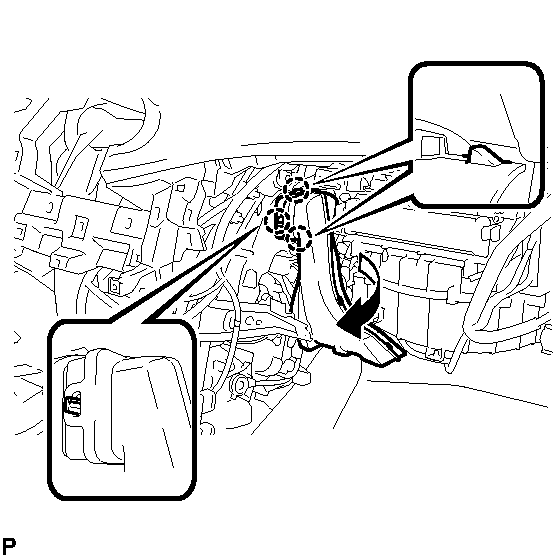

      Fig 1: Identifying No. 3 Air Duct Sub-Assembly Component & Claws Location
      GTY184287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE QUICK HEATER ASSEMBLY
    1. Disconnect the 2 connectors.

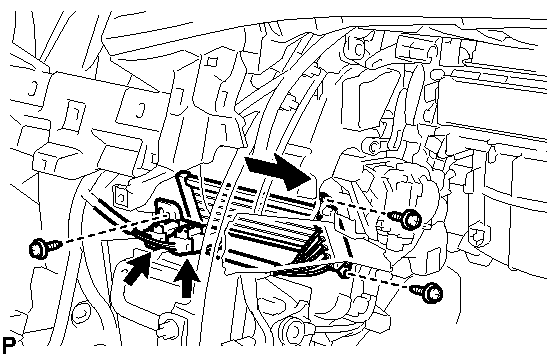

      Fig 2: Identifying Quick Heater Assembly Component & Screws
      GTY208059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws and the quick heater assembly as shown in the illustration.
