AIR CONDITIONING PANEL (for Manual Air Conditioning System): Installation: Installation

  1. INSTALL HEATER CONTROL AND ACCESSORY ASSEMBLY
    1. Connect the connector.
    2. Engage the 4 clips and install the heater control and accessory assembly.

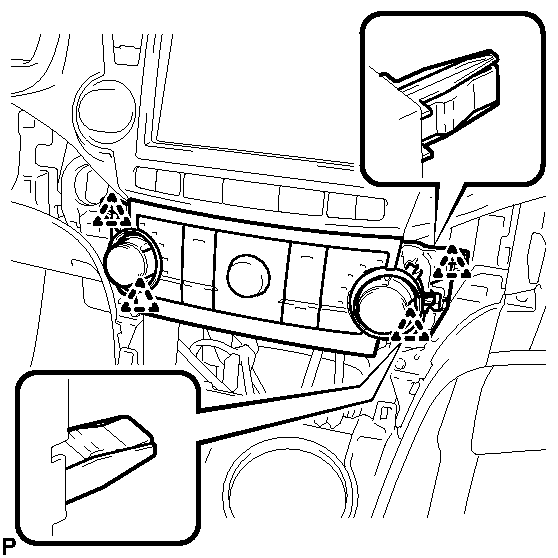

      Fig 1: Identifying Heater Control And Accessory Assembly Clips
      GTY207959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System)  . Refer to INSTALLATION - Step 31
  3. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System)  . Refer to INSTALLATION - Step 32
