Rear Blower Motor: Installation: Installation

  1. INSTALL REAR BLOWER MOTOR SUB-ASSEMBLY
    1. Install the rear blower motor sub-assembly with the 3 screws.

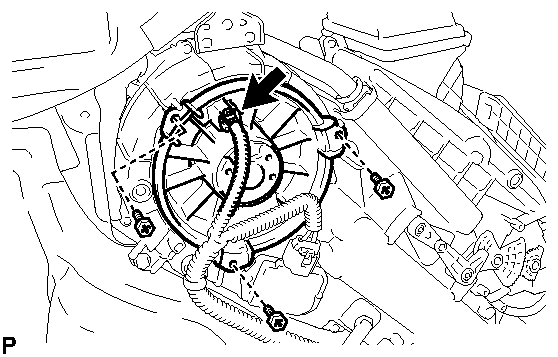

      Fig 1: Identifying Rear Blower Motor Sub-Assembly Screws
      GTY167370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH  . Refer to INSTALLATION - Step 54
  3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH  . Refer to INSTALLATION - Step 56
  4. INSTALL FRONT DECK SIDE TRIM COVER RH  . Refer to INSTALLATION - Step 58
  5. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK  . Refer to INSTALLATION - Step 59
  6. INSTALL ROPE HOOK ASSEMBLY (for RH Side)  . Refer to INSTALLATION - Step 60
  7. INSTALL REAR COMBINATION LIGHT SERVICE COVER RH  . Refer to INSTALLATION - Step 61
  8. INSTALL REAR ROOM TEMPERATURE SENSOR (for Automatic Air Conditioning System)  See step  1
  9. INSTALL SIDE TRIM COVER RH (for Manual Air Conditioning System)  . Refer to INSTALLATION - Step 63
  10. INSTALL DECK SIDE TRIM RH  . Refer to INSTALLATION - Step 74
  11. INSTALL DECK SIDE TRIM COVER RH  . Refer to INSTALLATION - Step 65
  12. INSTALL REAR SEAT SIDE GARNISH CAP  . Refer to INSTALLATION - Step 66
  13. INSTALL REAR FLOOR FINISH PLATE  . Refer to INSTALLATION - Step 67
  14. INSTALL REAR NO. 2 SEAT ASSEMBLY  . Refer to INSTALLATION - Step 1
  15. INSTALL CENTER SEAT CUSHION COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  16. CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH  . Refer to INSTALLATION - Step 29
  17. CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH  . Refer to INSTALLATION - Step 28
  18. INSTALL REAR DECK FLOOR BOX  . Refer to INSTALLATION - Step 72
  19. INSTALL REAR MAT  . Refer to INSTALLATION - Step 73
  20. INSTALL DECK SIDE TRIM BOX RH  . Refer to INSTALLATION - Step 74
  21. INSTALL JACK CARRIER ASSEMBLY  . Refer to INSTALLATION - Step 75
  22. INSTALL JACK ASSEMBLY  . Refer to INSTALLATION - Step 76
  23. INSTALL JACK CARRIER CUSHION  . Refer to INSTALLATION - Step 77
  24. INSTALL JACK CARRIER SUPPORT  . Refer to INSTALLATION - Step 78
  25. INSTALL NO. 1 DECK BOARD  . Refer to INSTALLATION - Step 79
  26. INSTALL NO. 2 DECK BOARD  . Refer to INSTALLATION - Step 80
  27. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 81
  28. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH  . Refer to INSTALLATION - Step 94
  29. INSTALL REAR DOOR SCUFF PLATE RH  . Refer to INSTALLATION - Step 95
