Unlock Position Sensor Signal Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

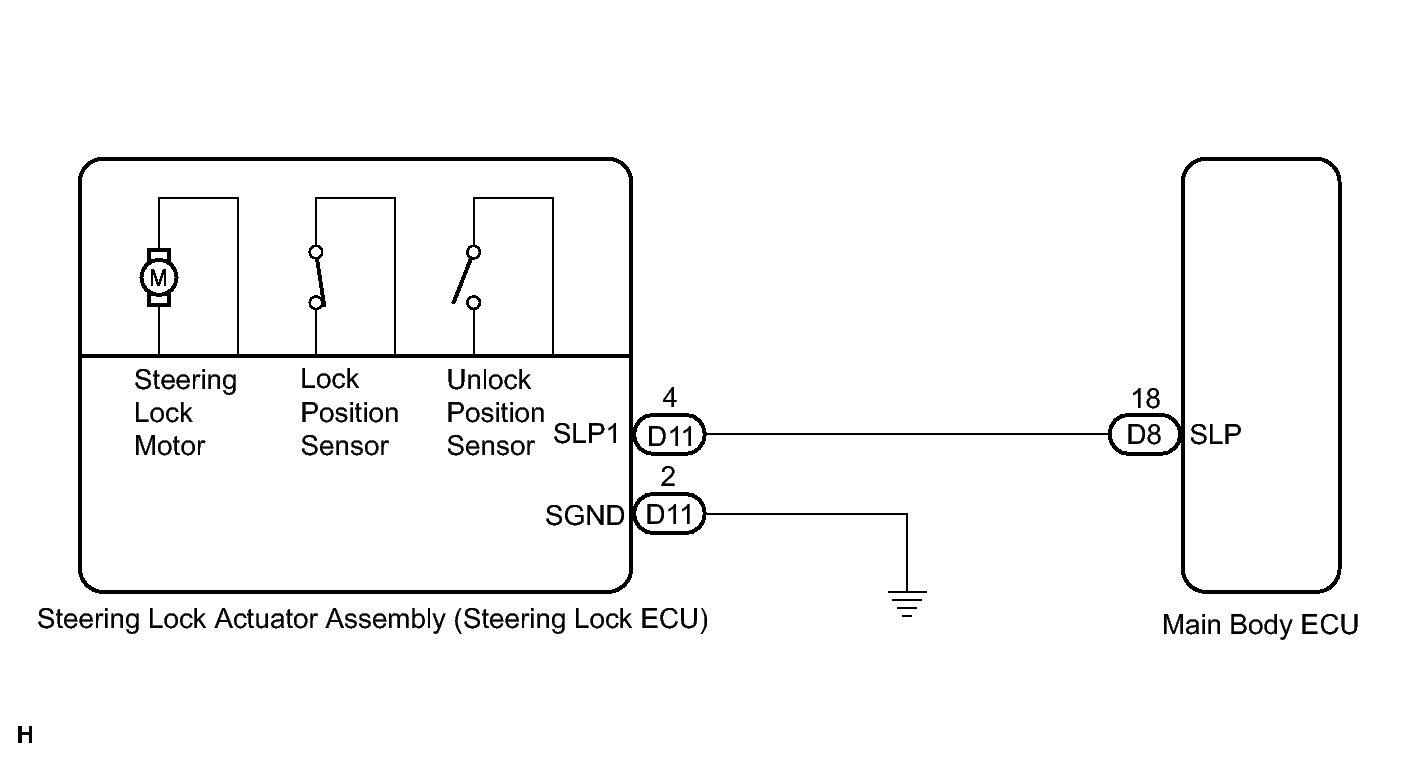

Fig 1: Unlock Position Sensor Signal Wiring Diagram
GTY201024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
