DTC B2788: IG2 Signal Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

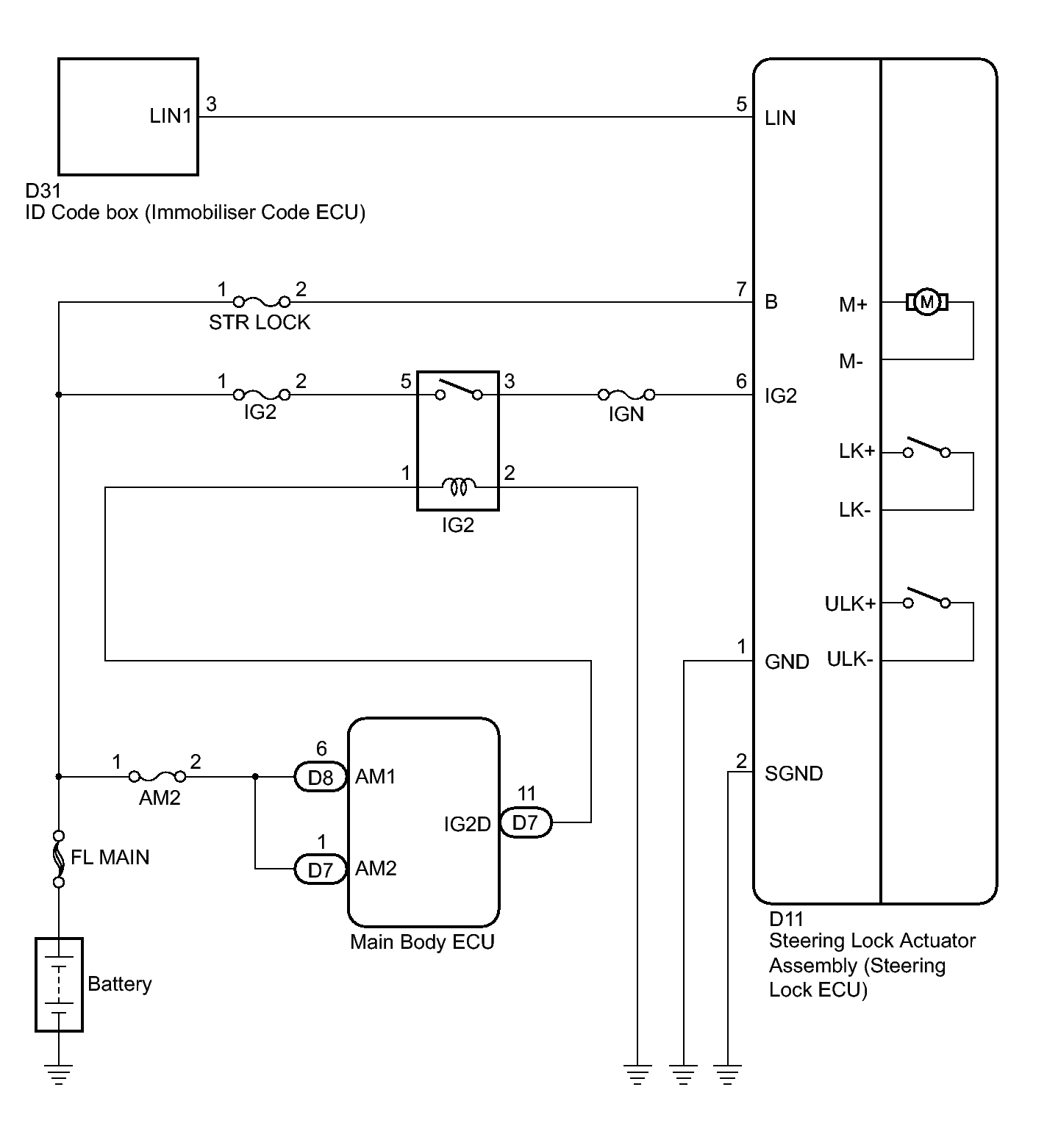

Fig 1: Identifying Steering Lock ECU Wiring Diagram
GTY169399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
