Section 90 (Steering Lock System (Diagnostic Codes & Circuit Tests))
>>
Steering Lock System
>>
DTC B2782: Power Source Control ECU Malfunction
>>
Wiring Diagram
DTC B2782: Power Source Control ECU Malfunction: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

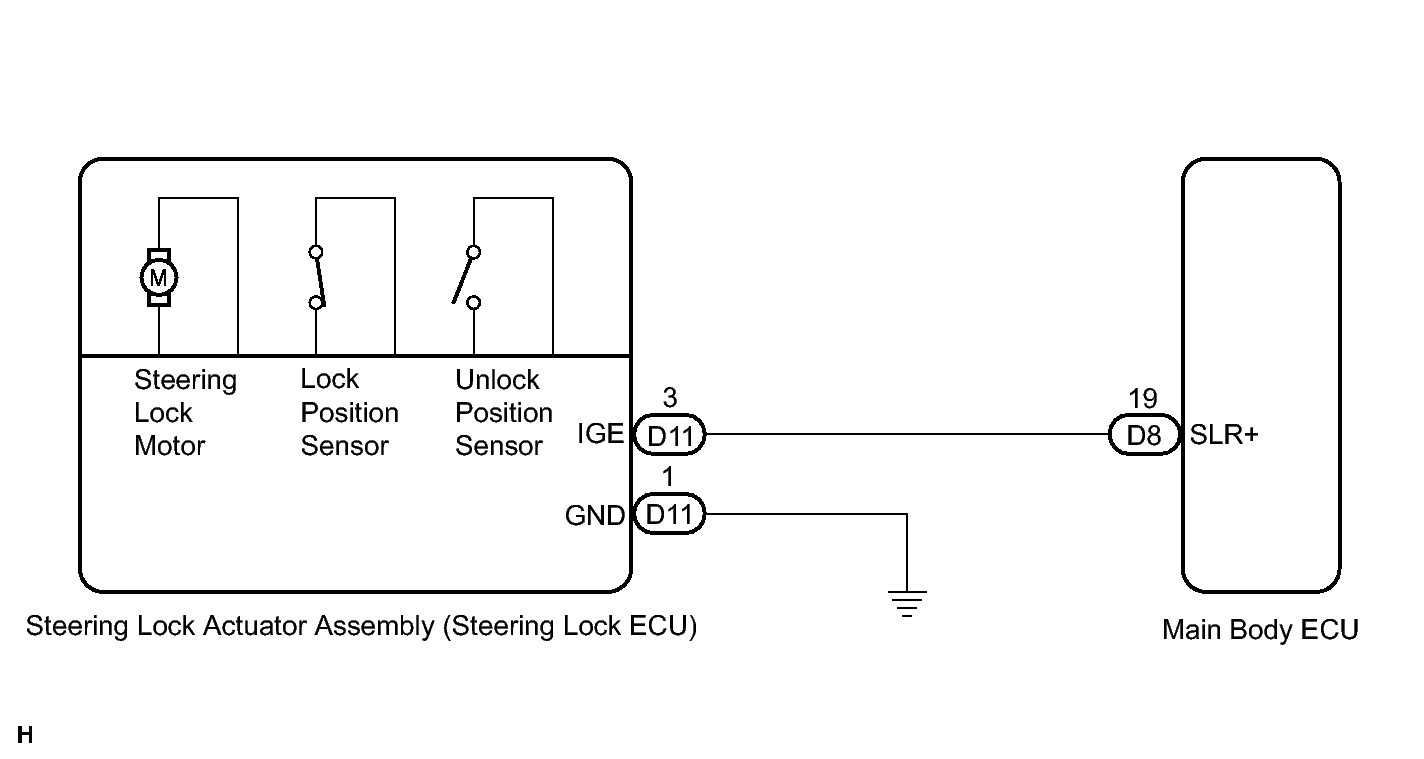

Fig 1: Power Source Control ECU Malfunction Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
