DTC B2782: Power Source Control ECU Malfunction: Procedure

1. Measure the voltage according to the value(s) in the table below.

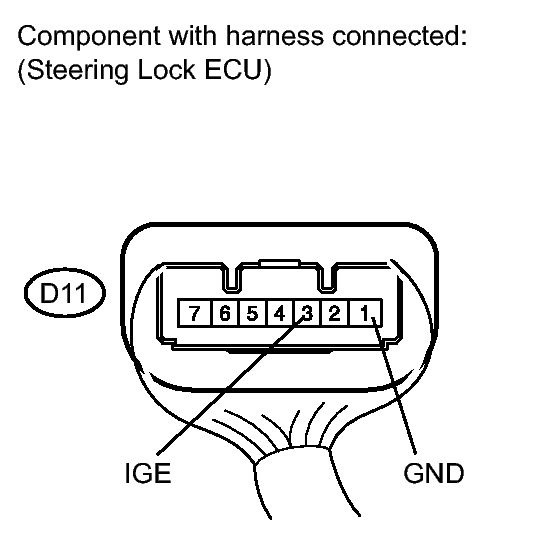

   Fig 1: Identifying D11 Steering Lock ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   Tester Connection	Condition	Specified Condition
   D11-3 (IGE) - D11-1 (GND)	The specified condition should be checked after performing the following: Turn the engine switch off Turn the engine switch on (ACC or IG)	Motor activated: Below 1 V Motor not activated: 11 to 14 V
   D11-3 (IGE) - D11-1 (GND)	The specified condition should be checked after performing the following: Move the shift lever to the P position Turn the engine switch off Open the driver's door	Motor activated: Below 1 V Motor not activated: 11 to 14 V

   HINT:

   The steering lock ECU and steering lock actuator assembly are supplied as a unit.

NG → See step   2

OK → See step   4

1. Disconnect the D11 connector from the steering lock actuator assembly.

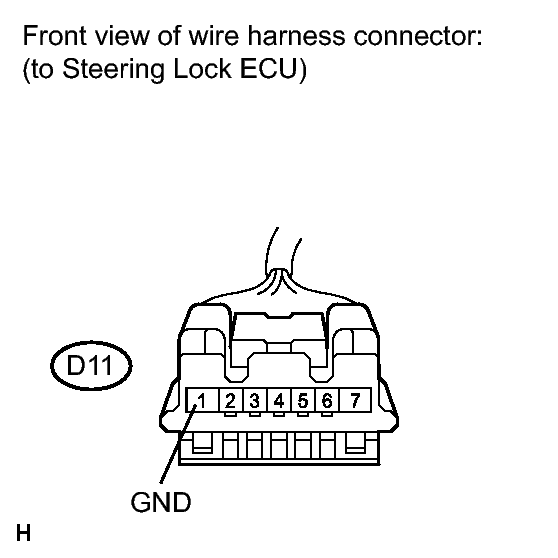

   Fig 2: Identifying D11 Steering Lock Actuator Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   D11-1 (GND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the D8 connector from the main body ECU.

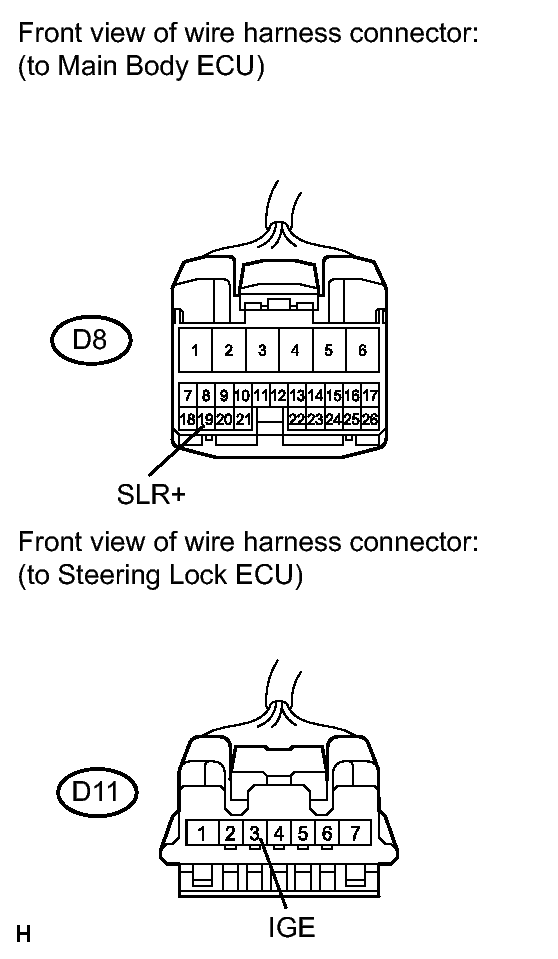

   Fig 3: Identifying D8 Main Body ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   D11-3 (IGE) - D8-19 (SLR+)	Always	Below 1 Ω
   D11-3 (IGE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE MAIN BODY ECU
