Engine Immobiliser System (W/ Smart Key System): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

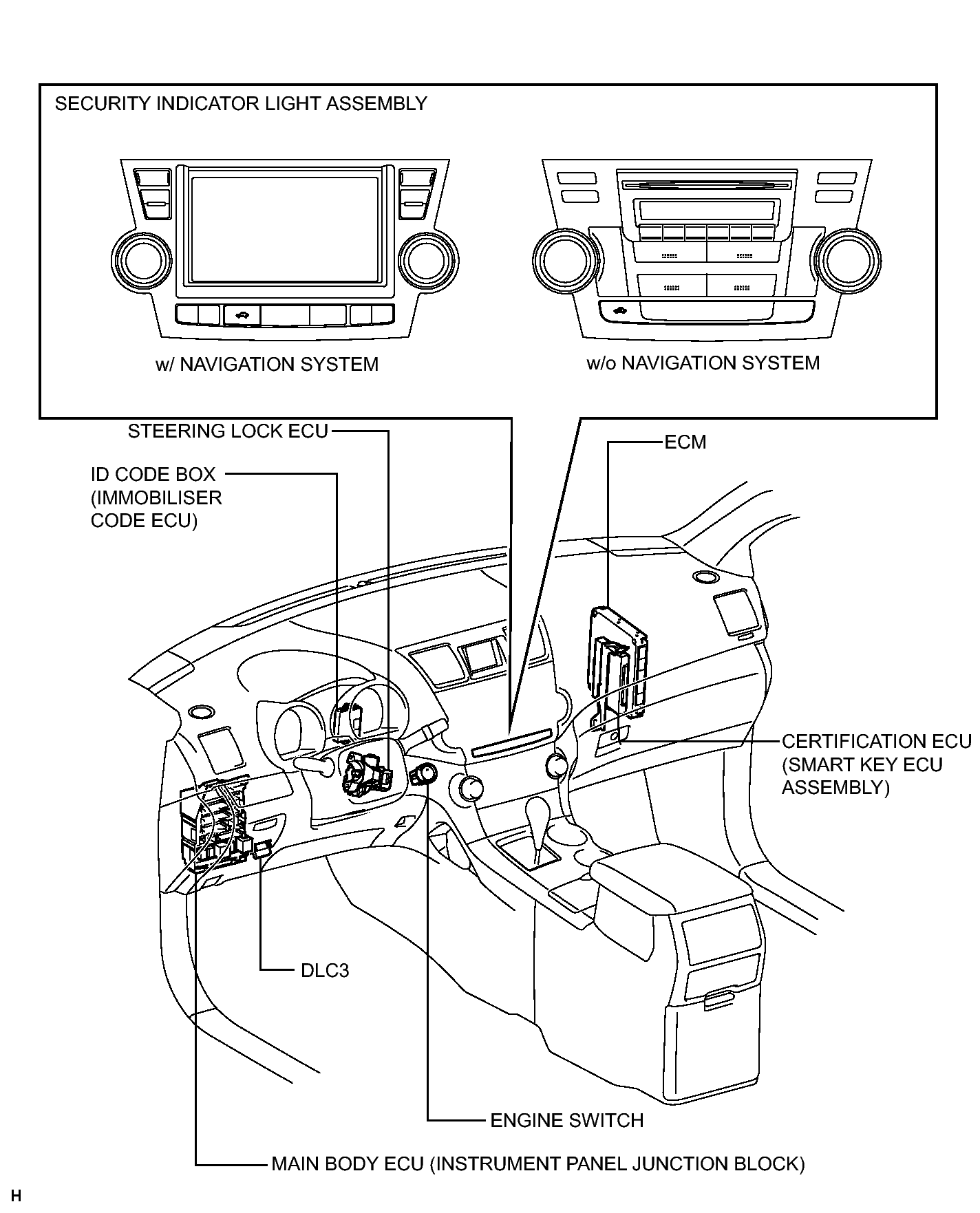

Fig 1: Identifying Engine Immobilizer System (With Smart Key System) Replacements Components
GTY198952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
