Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

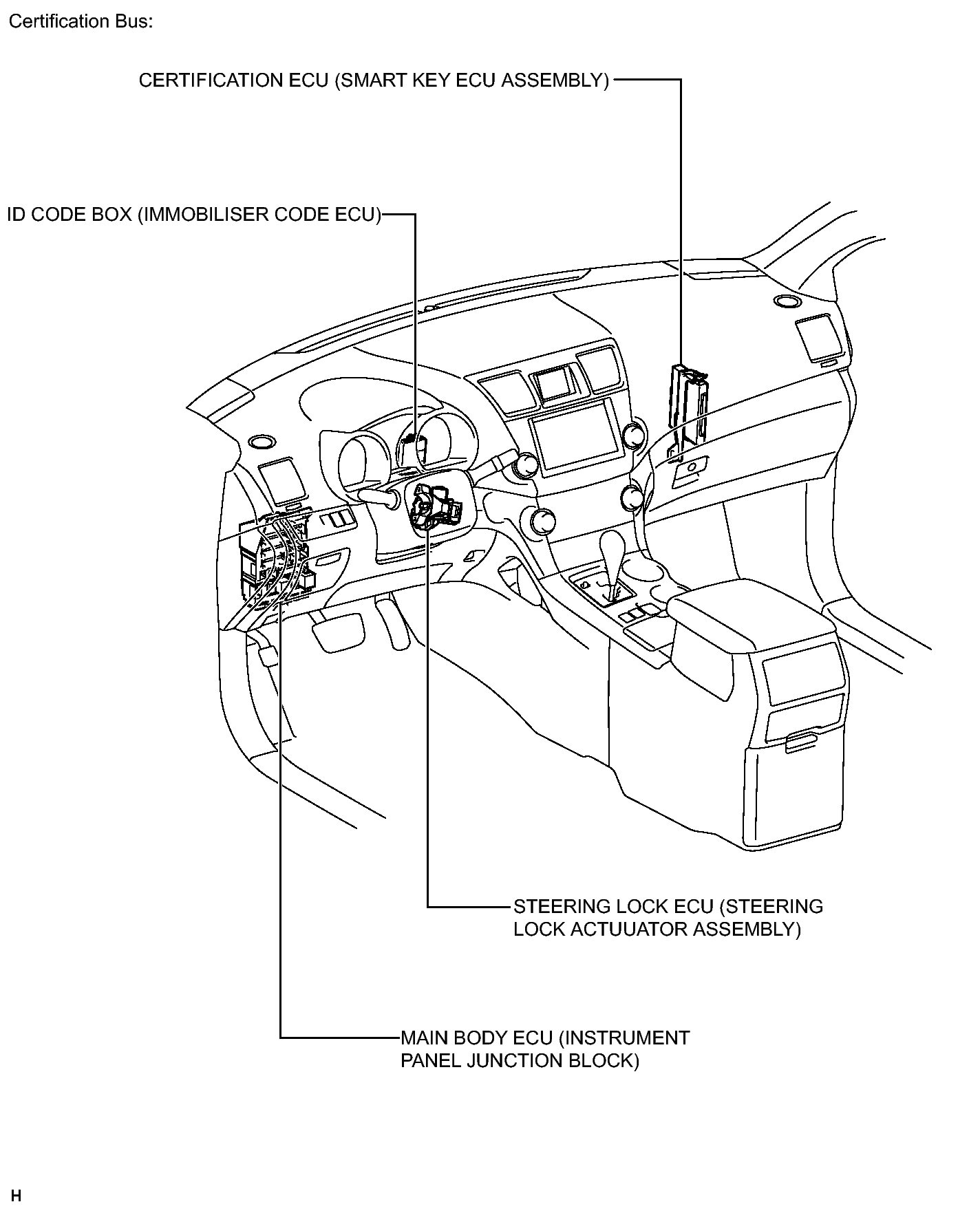

Fig 1: Identifying LIN Communication System Components Location (1 Of 2)
GTY189520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

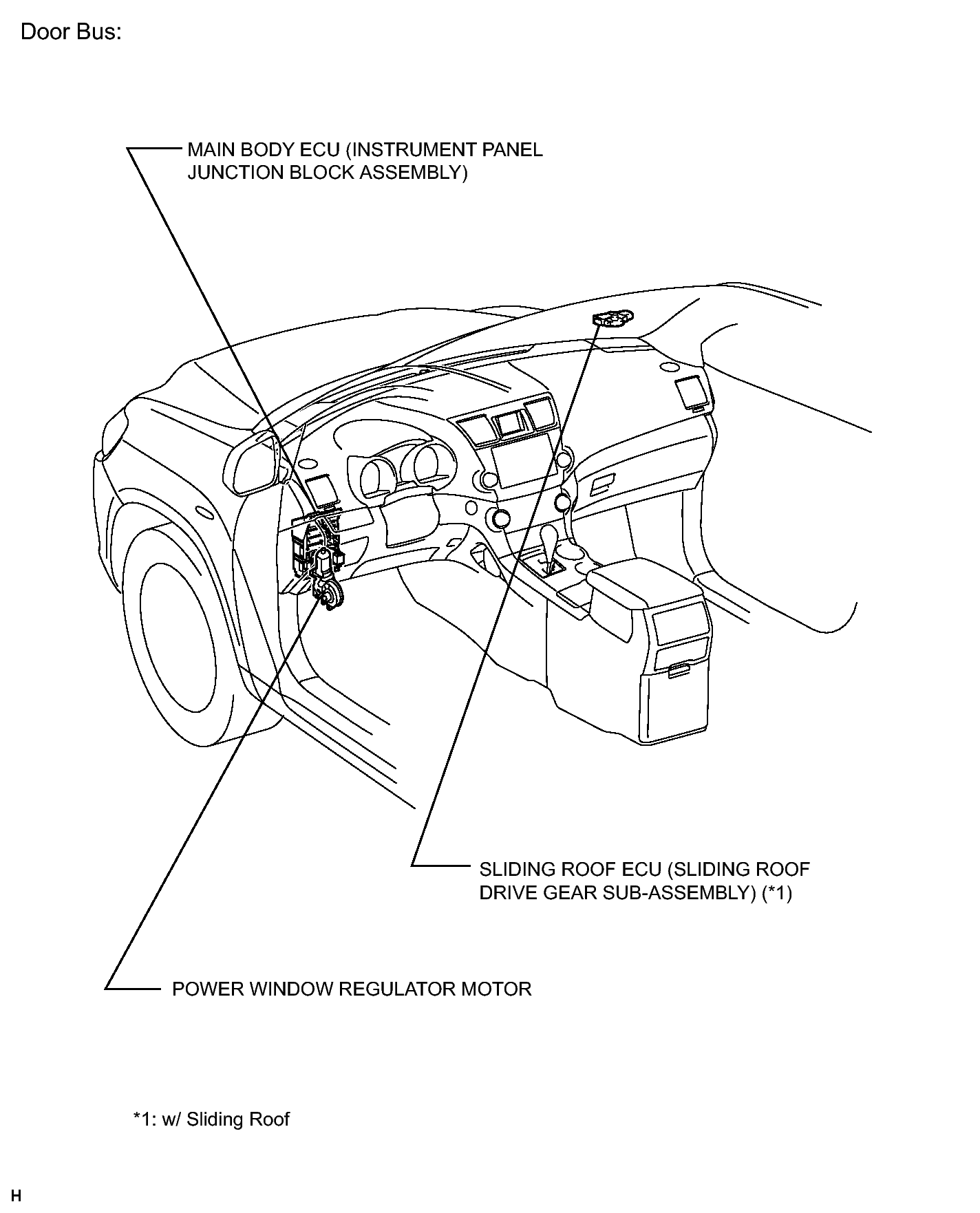

Fig 1: Identifying LIN Communication System Components Location (2 Of 3)
GTY179388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

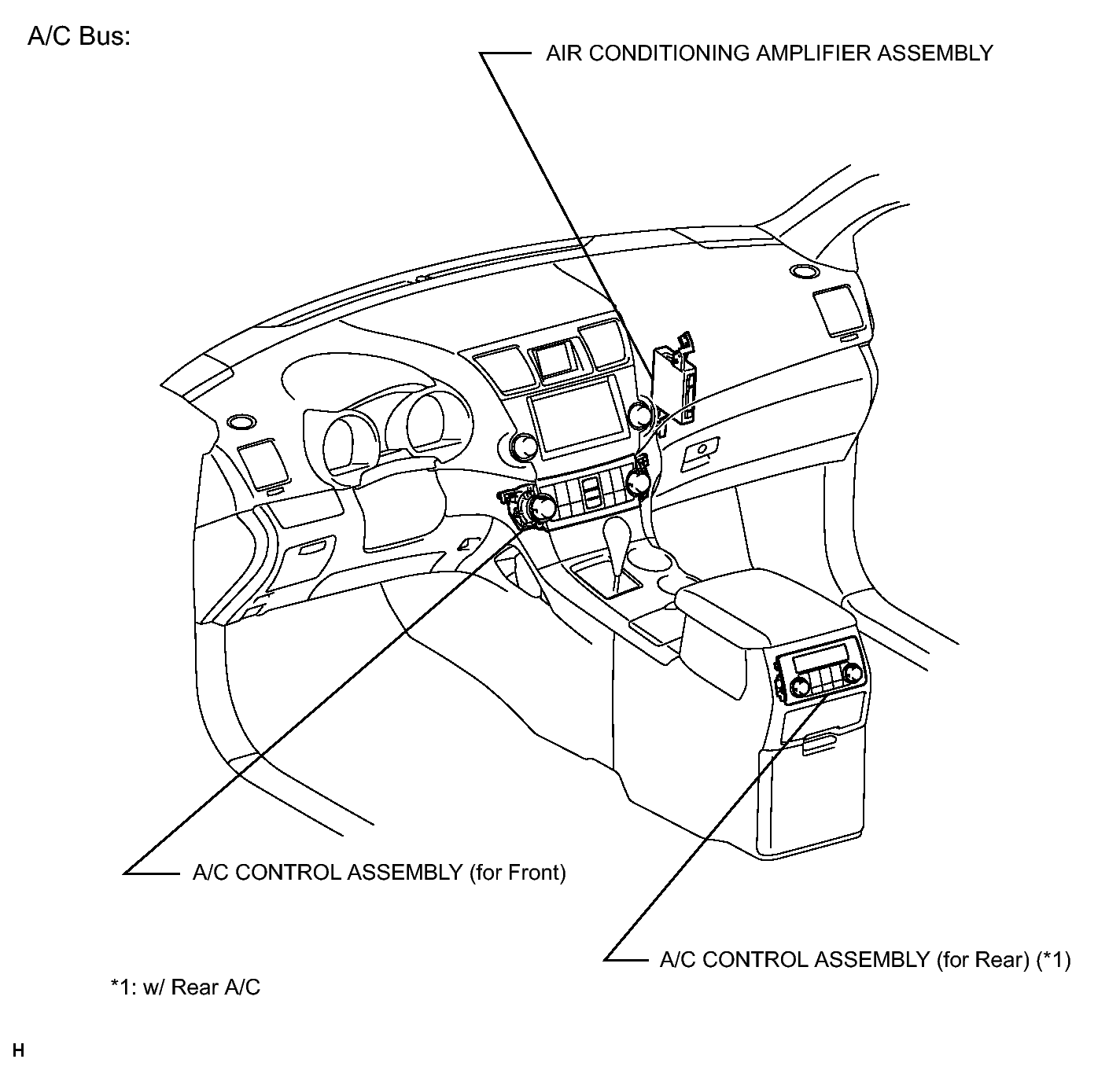

Fig 1: Identifying LIN Communication System Components Location (3 Of 3)
GTY199024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
