Section 88 (Smart Key System (Keyless Start) (2GR-FE) (Diagnostic Codes & Symptom Tests))
>>
Smart Key System
>>
Power Source Mode does not Change
>>
Wiring Diagram
Power Source Mode does not Change: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

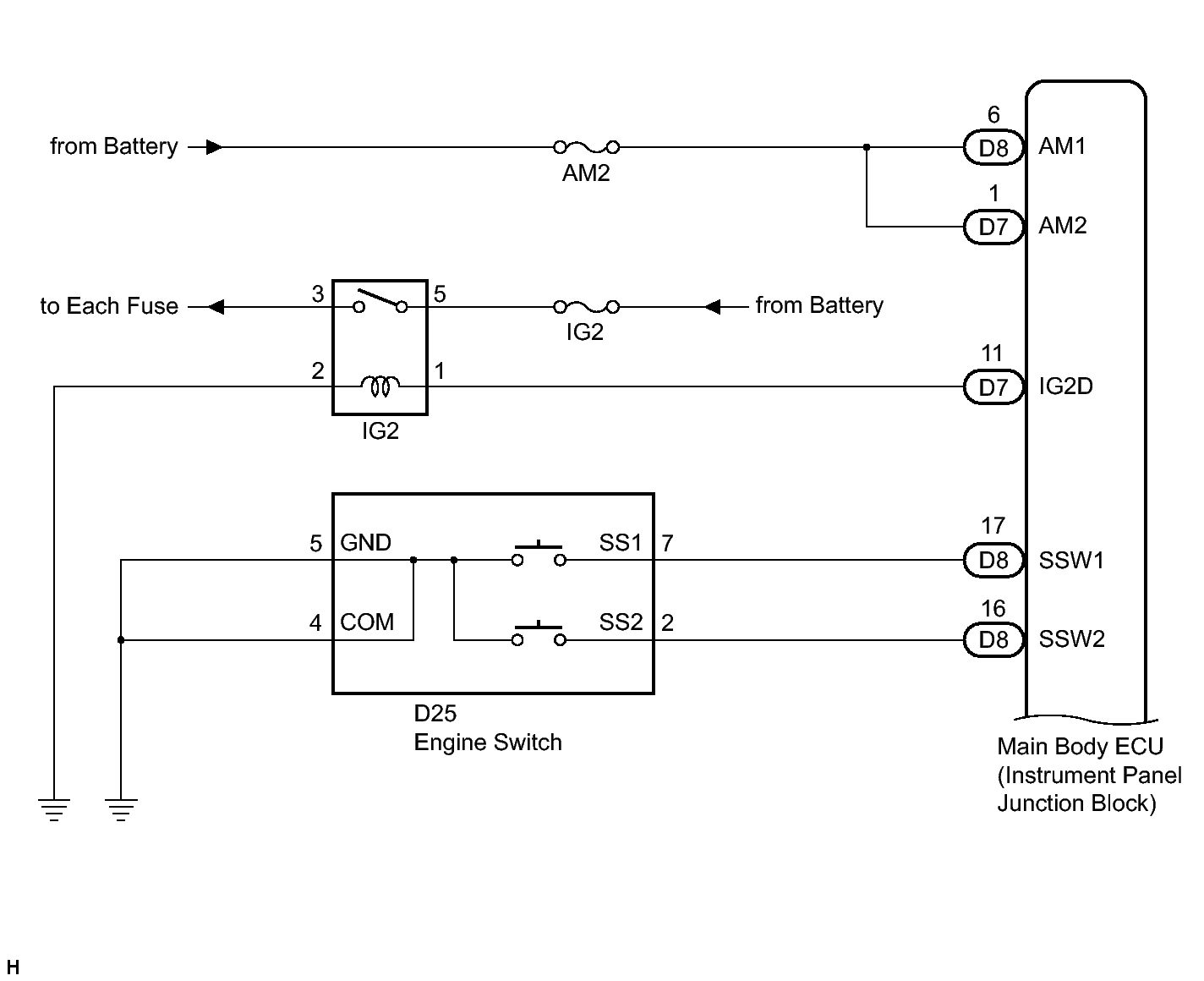

Fig 1: Identifying Power Source Mode Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

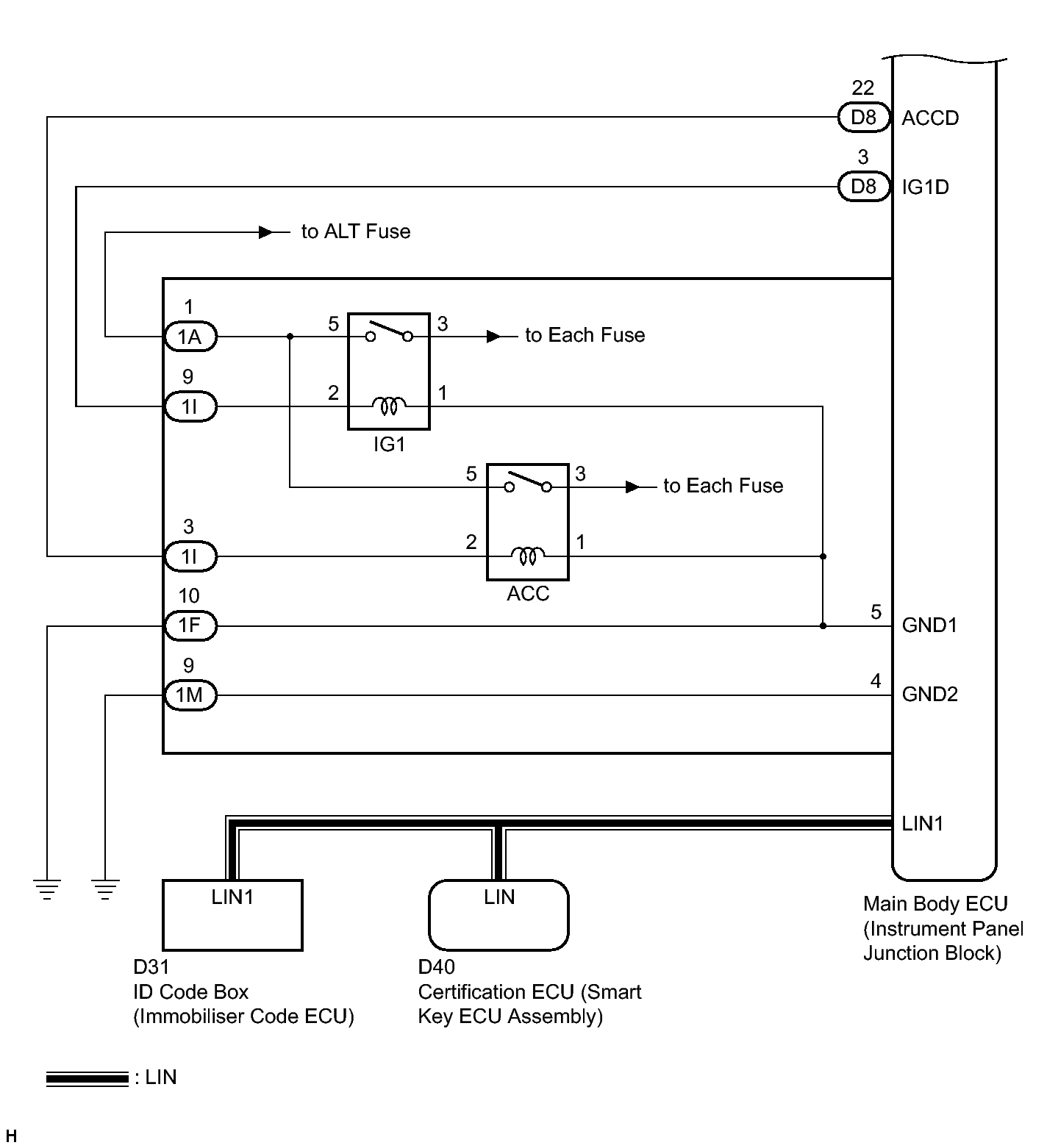

Fig 2: Power Source Mode Does Not Change Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
