DTC B2289: Key Collation Waiting Time Over: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

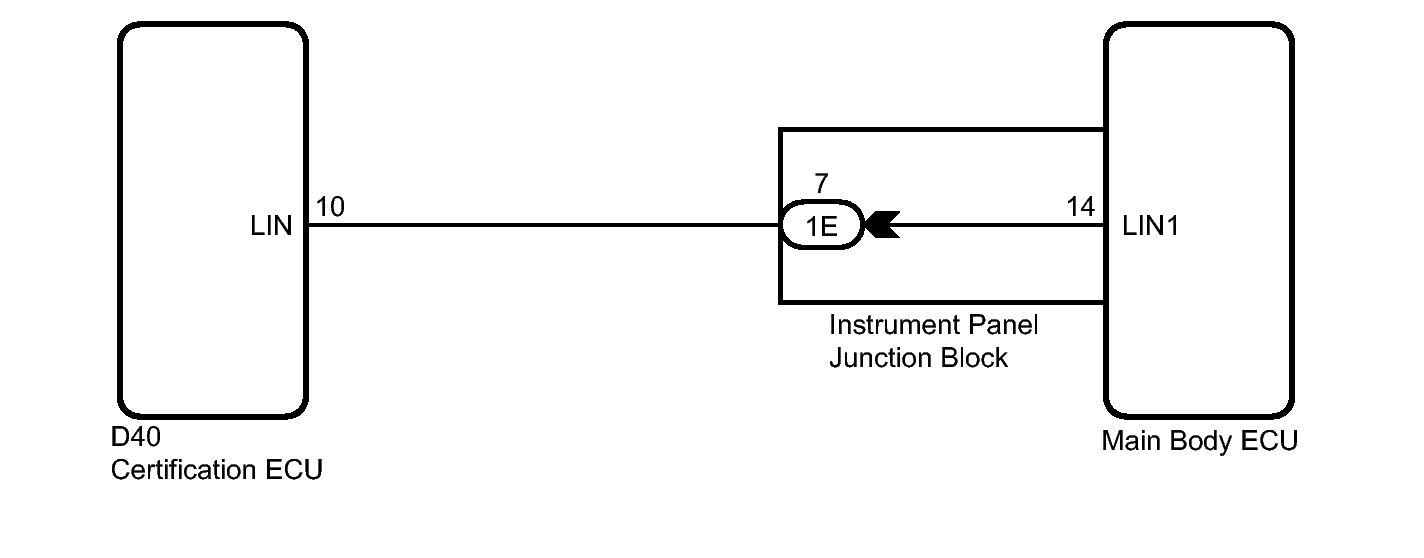

Fig 1: Identifying Key Collation Waiting Time Over Wiring Diagram
GTY177859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
