DTC B2281: "P" Signal Malfunction: Procedure
WARNING: This page is about a different variant/trim than selected.
- READ VALUE USING TECHSTREAM
- Connect Techstream to the DLC3.
- Turn the engine switch on (IG) and turn Techstream main switch on.
- Read the DATA LIST according to the displays on the tester.MAIN BODY:
Tester Display Measurement Item/Range Normal Condition Diagnostic Note SHIFT P SIG Shift P Signal / ON or OFF ON: Shift P signal ON (Shift position is P)
OFF: Shift P signal OFF (Shift position is not P)- OK
"ON" (P signal is ON) and "OFF" (P signal is OFF) appear on the screen.
NG → GO TO SHIFT CONTROL SYSTEM
OK: Go to next step
- CHECK WIRE HARNESS (MAIN BODY ECU - SHIFT LOCK CONTROL ECU)

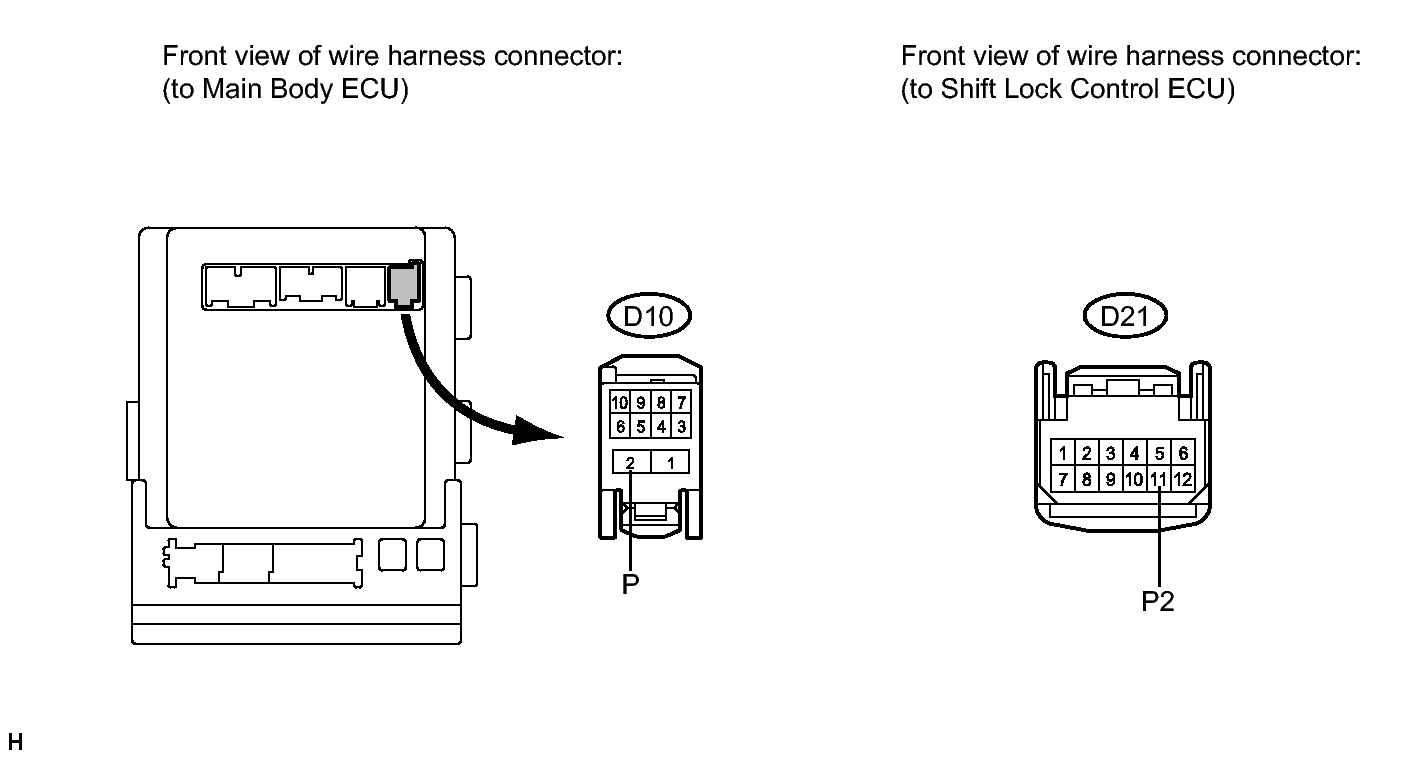

- Disconnect the D10 and D21 ECU connectors.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Terminal No. (Symbol) Condition Specified Condition D10-2 (P) - D21-11 (P2) Always Below 1 Ω D10-2 (P) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK MAIN BODY ECU OPERATION
- After replacing the main body ECU (instrument panel junction block) with a normally functioning ECU, check that the engine can start normally.
OK
Engine can start normally.
NG → See step 4
OK → END (MAIN BODY ECU DEFECTIVE)
- After replacing the main body ECU (instrument panel junction block) with a normally functioning ECU, check that the engine can start normally.
- REPLACE SHIFT LOCK CONTROL ECU. Refer to DISASSEMBLY
