DTC B2274: ACC Monitor Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

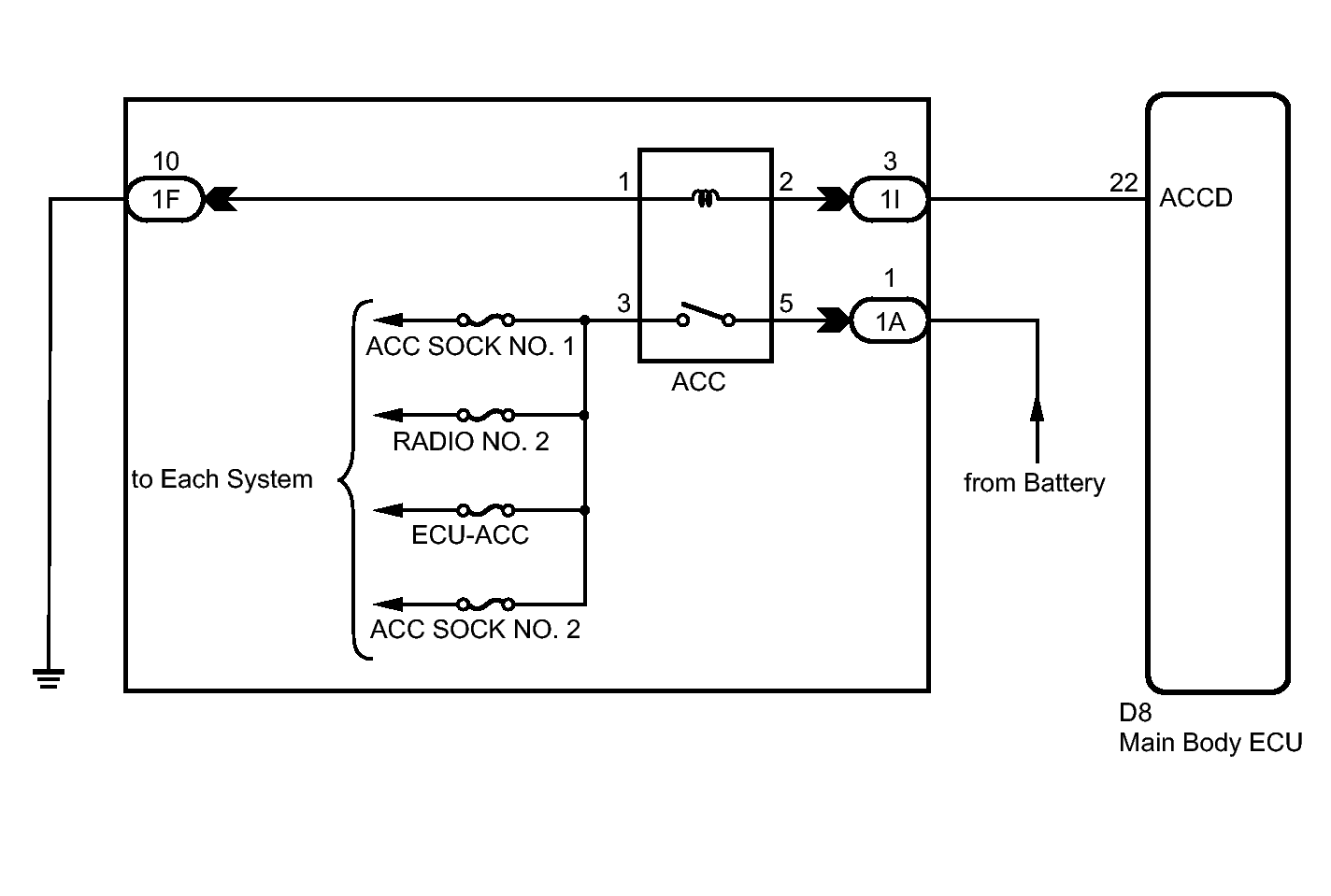

Fig 1: ACC Monitor Malfunction Wiring Diagram
GTY179755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
