STEERING GEAR (for 2GR-FE): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

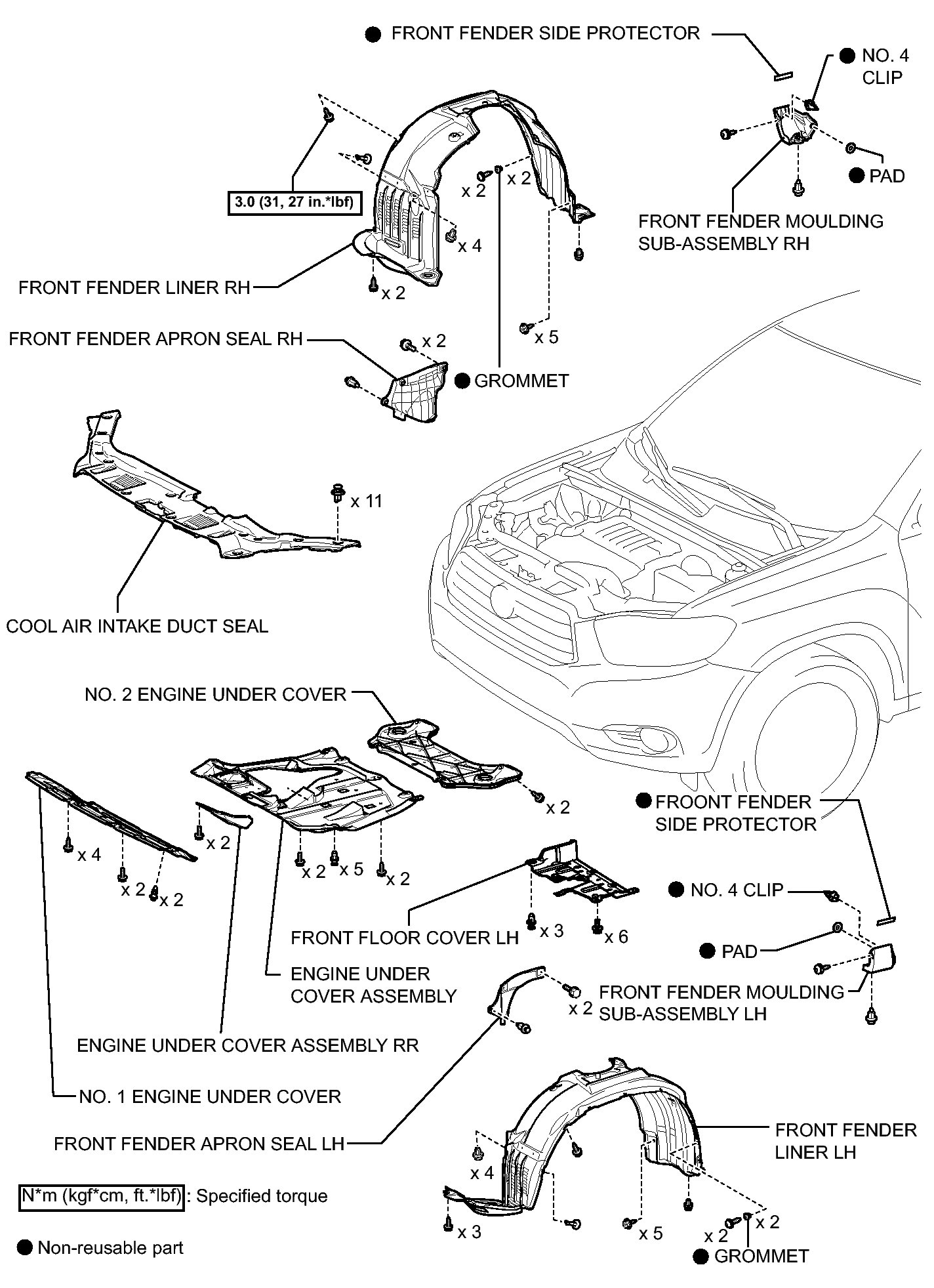

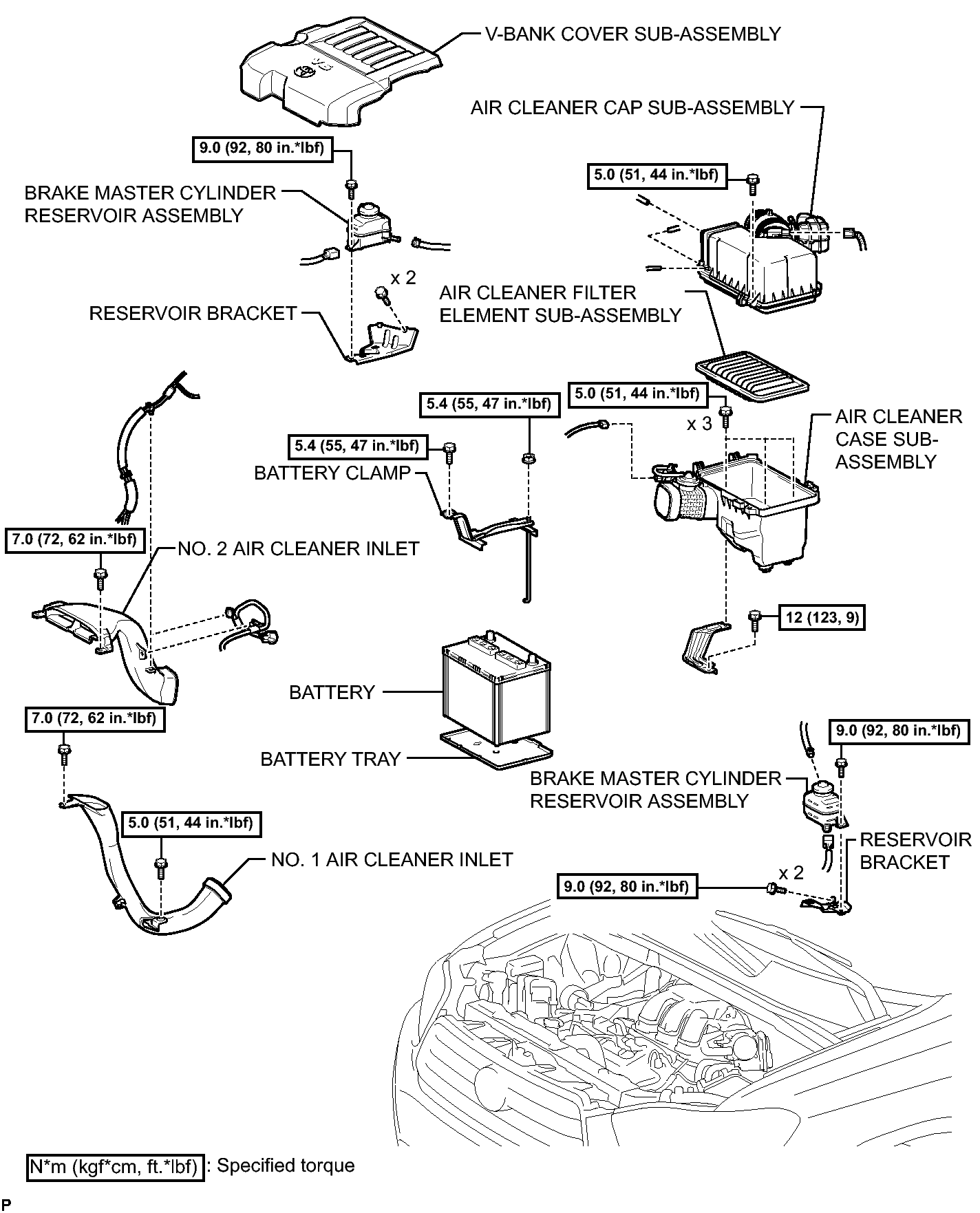

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components With Torque Specifications (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

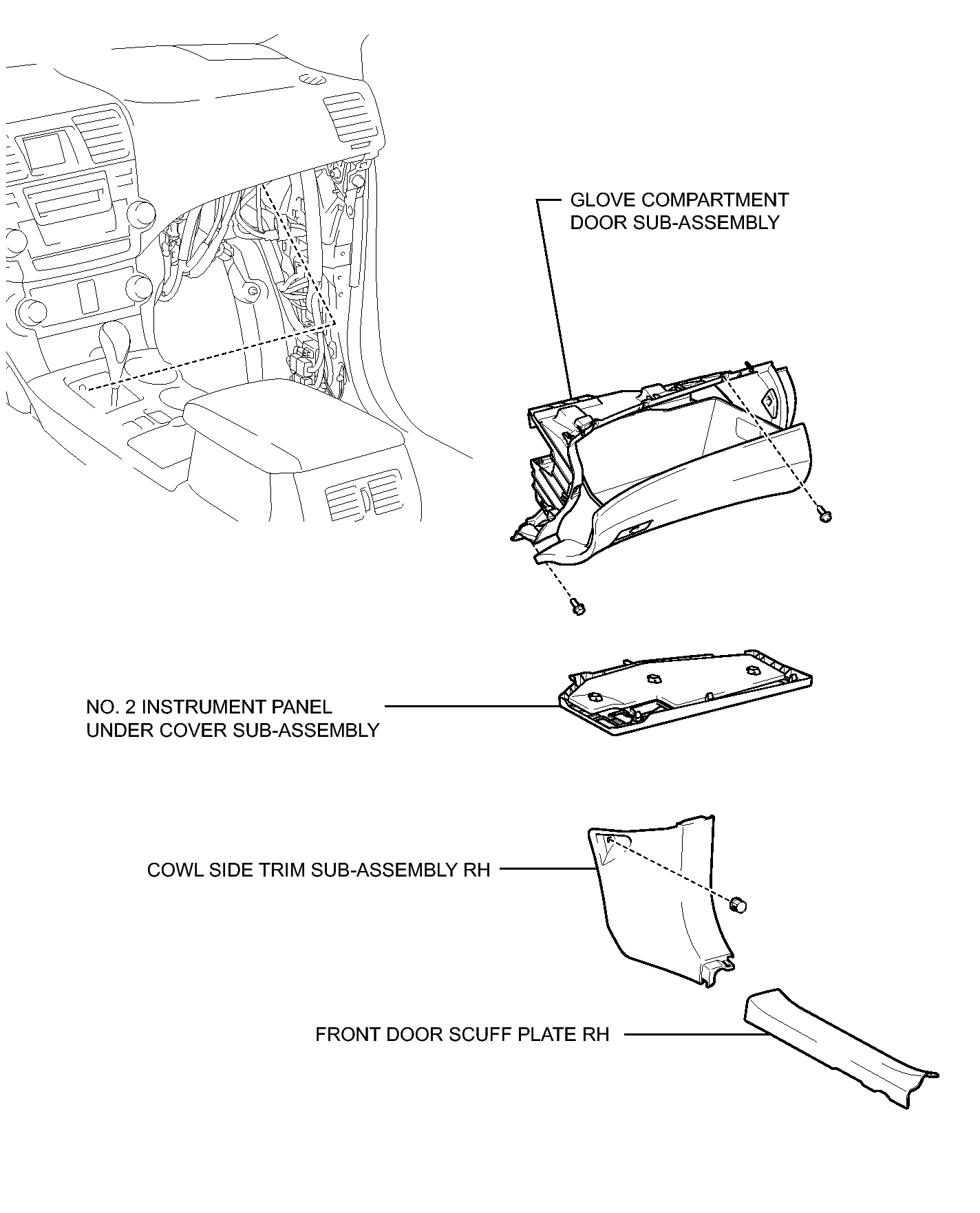

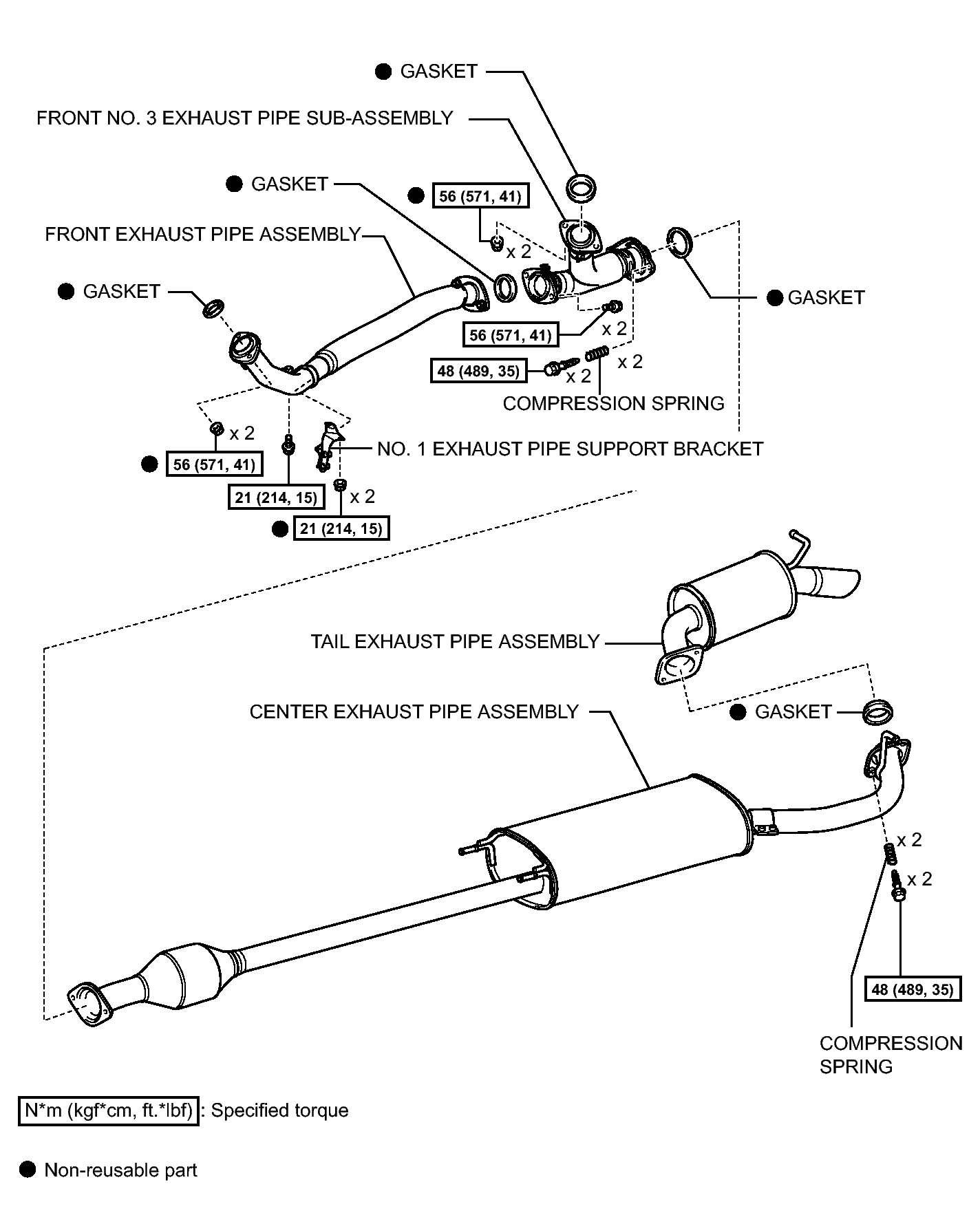

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components With Torque Specifications (2 of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

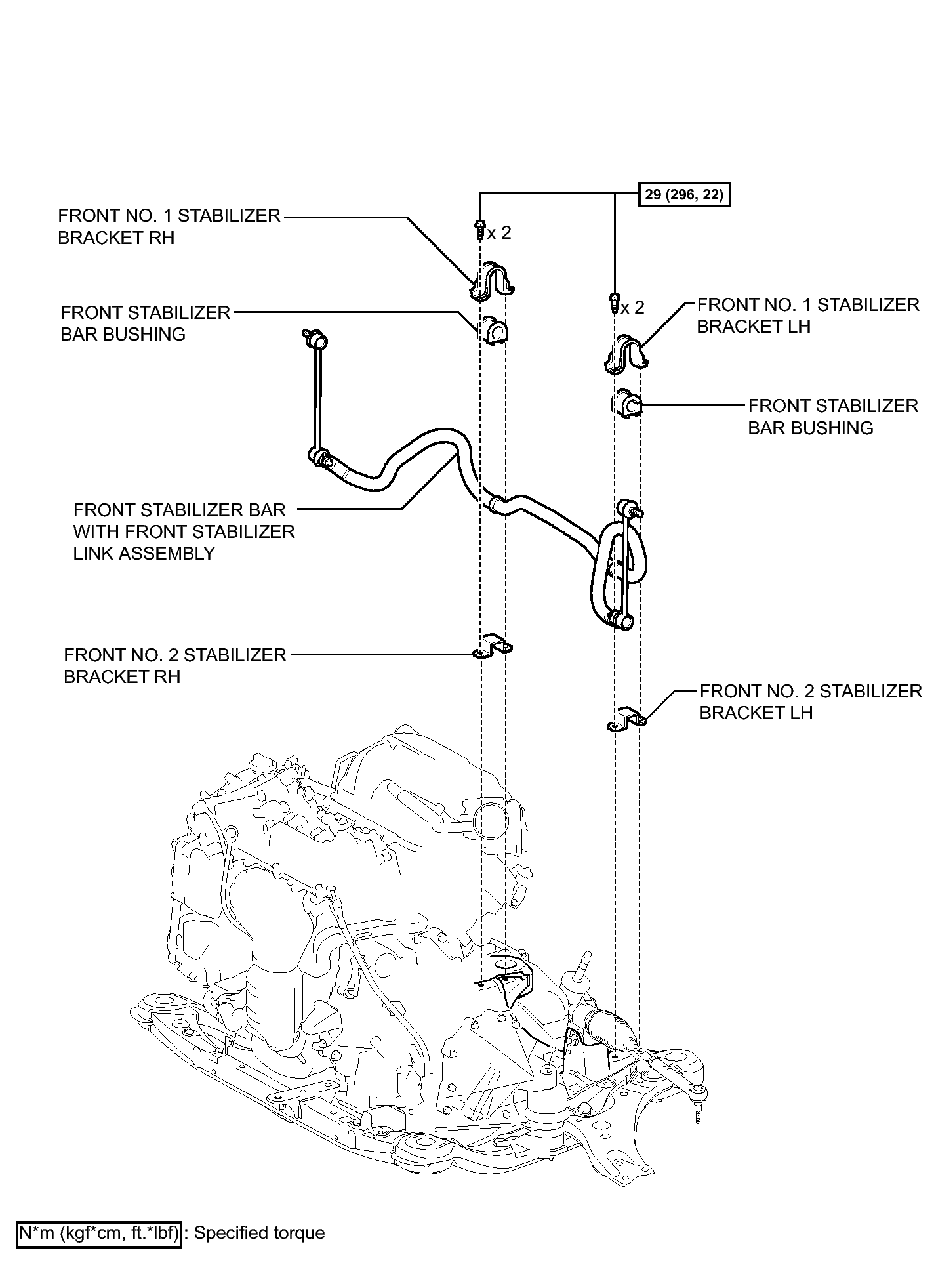

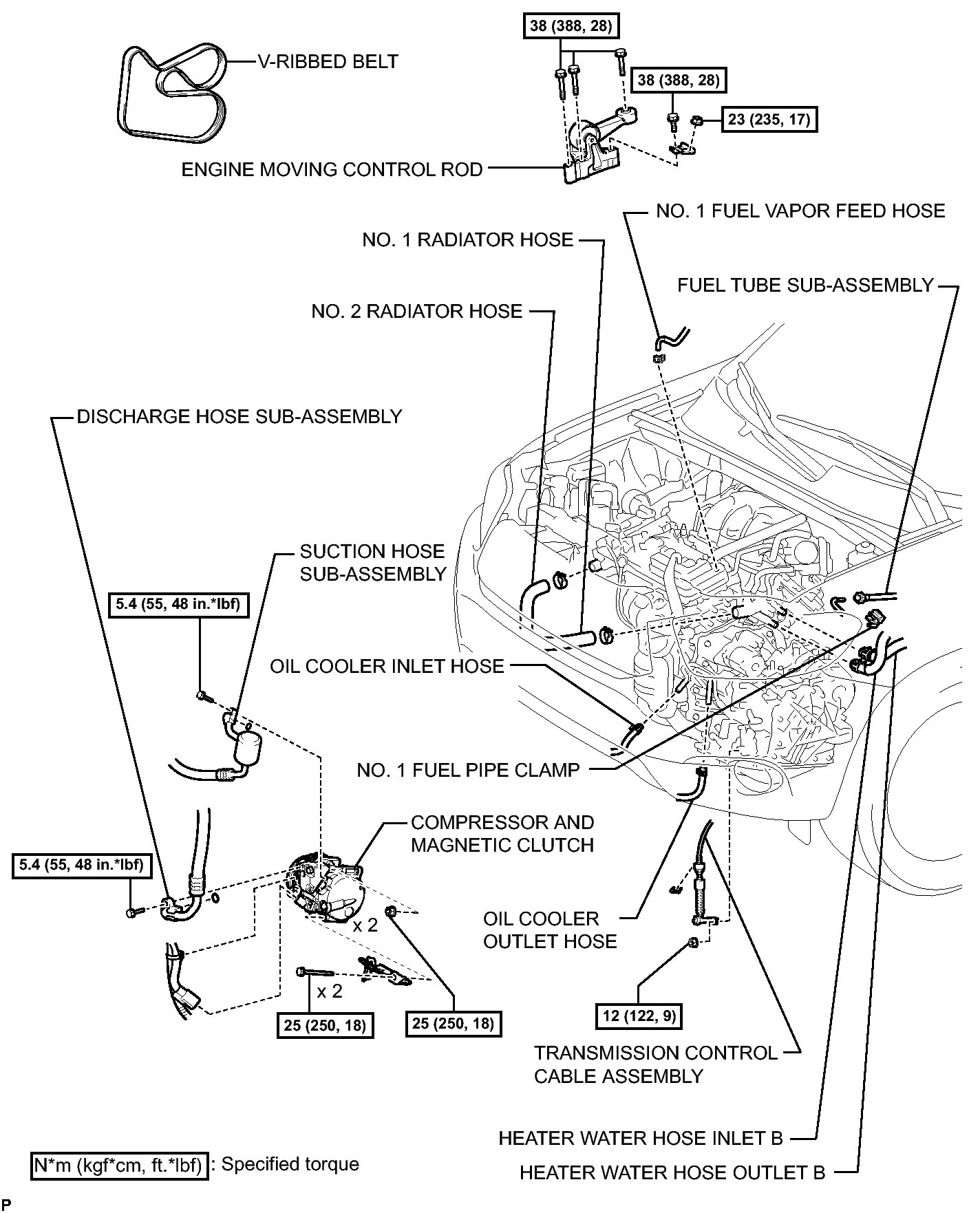

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components With Torque Specifications (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

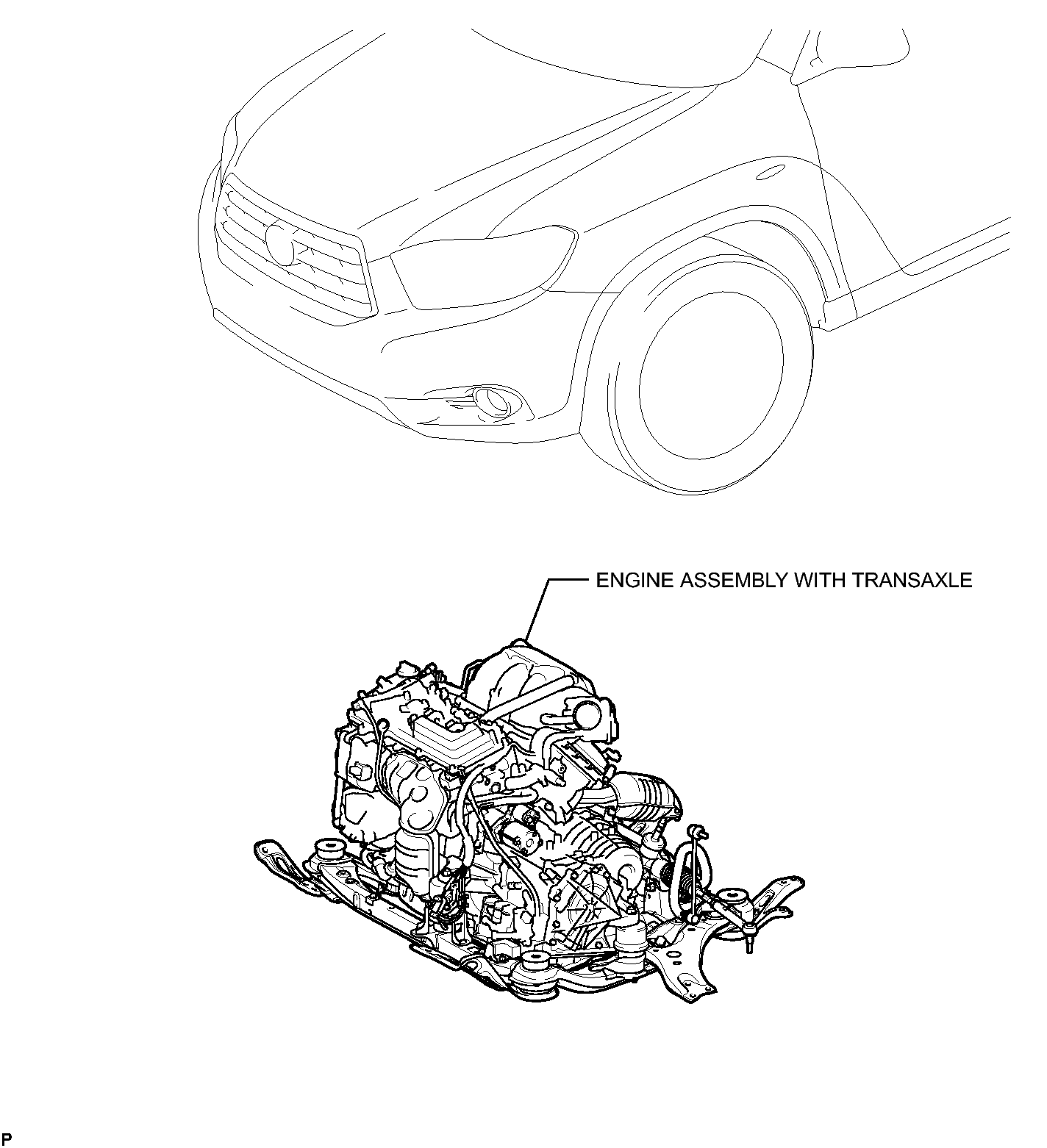

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components With Torque Specifications (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

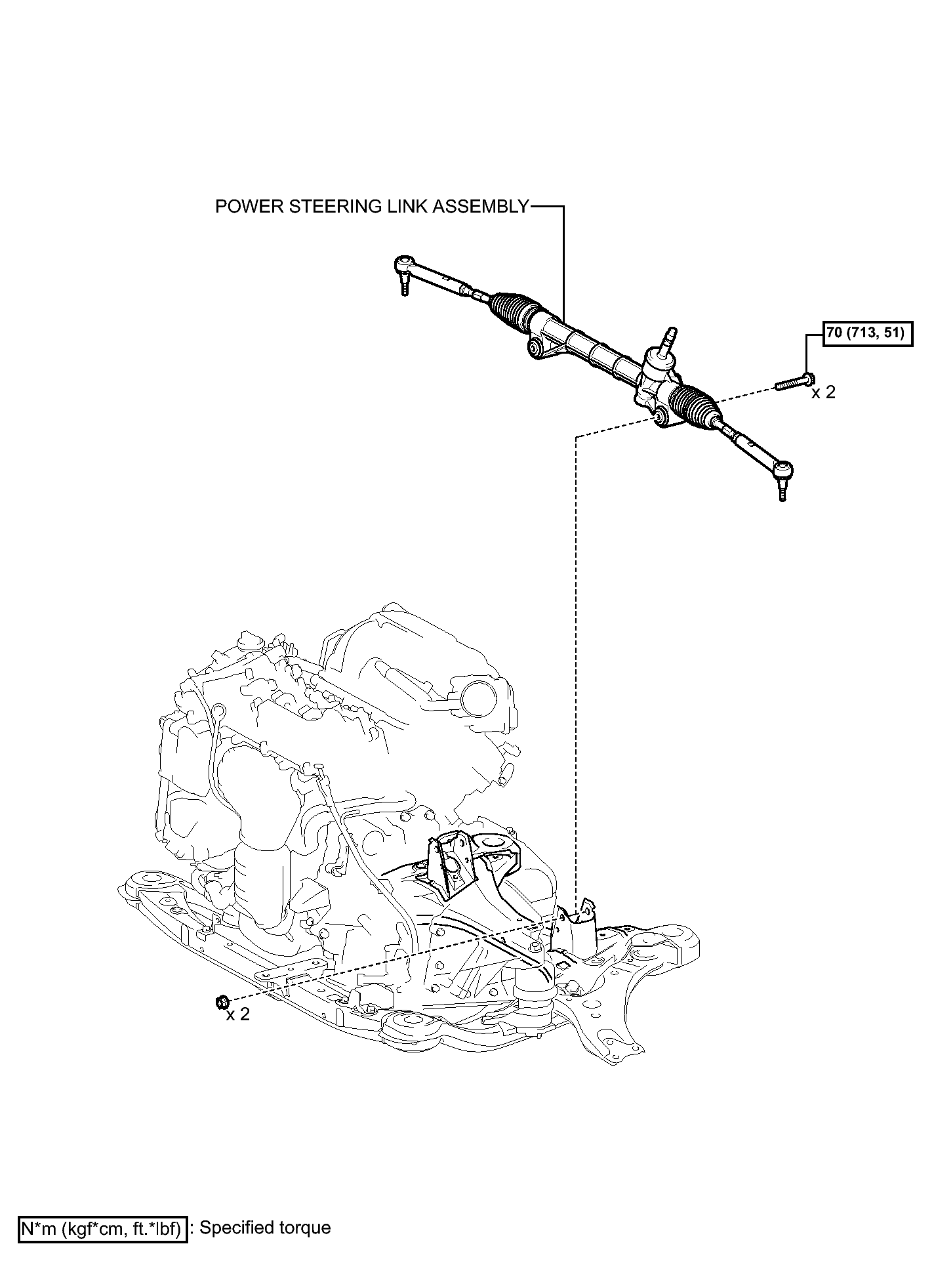

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components With Torque Specifications (5 of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

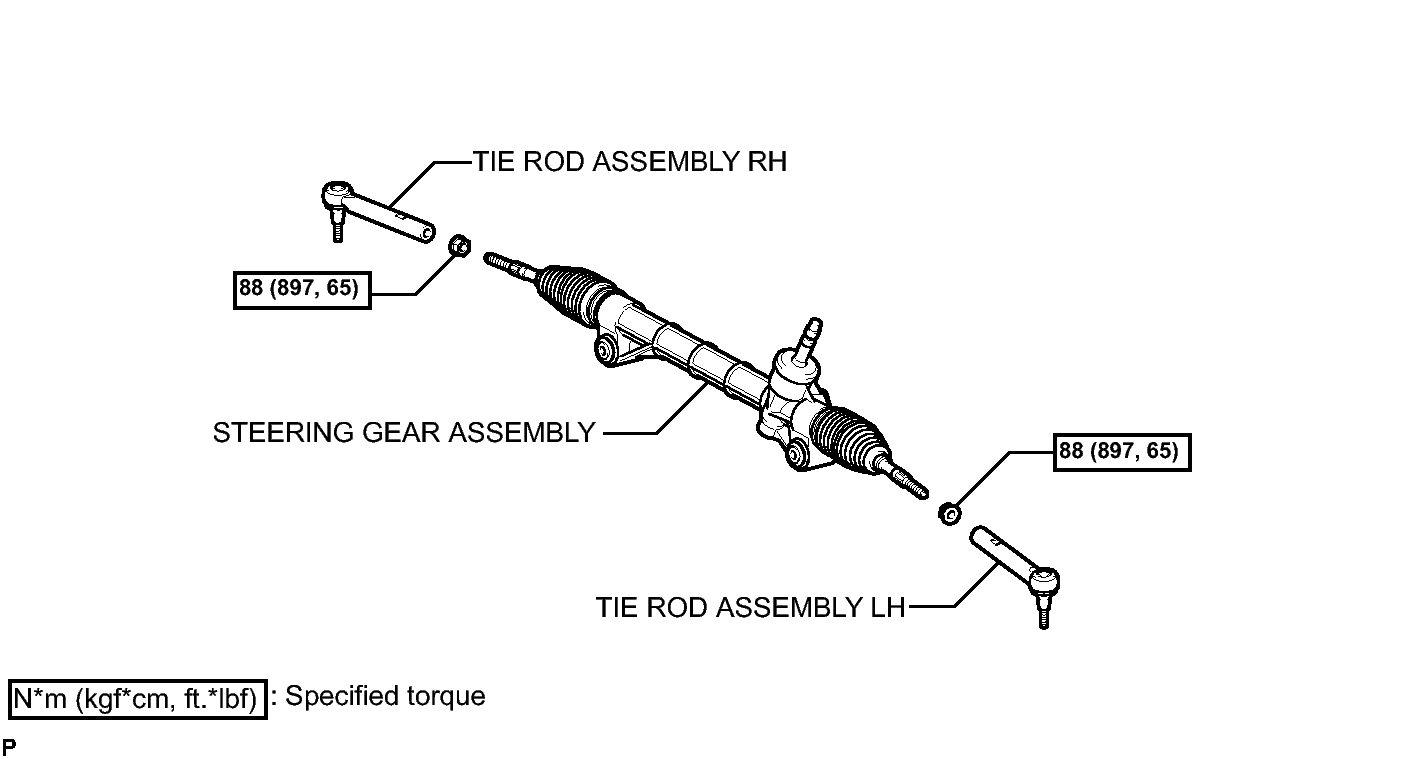

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components With Torque Specifications (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

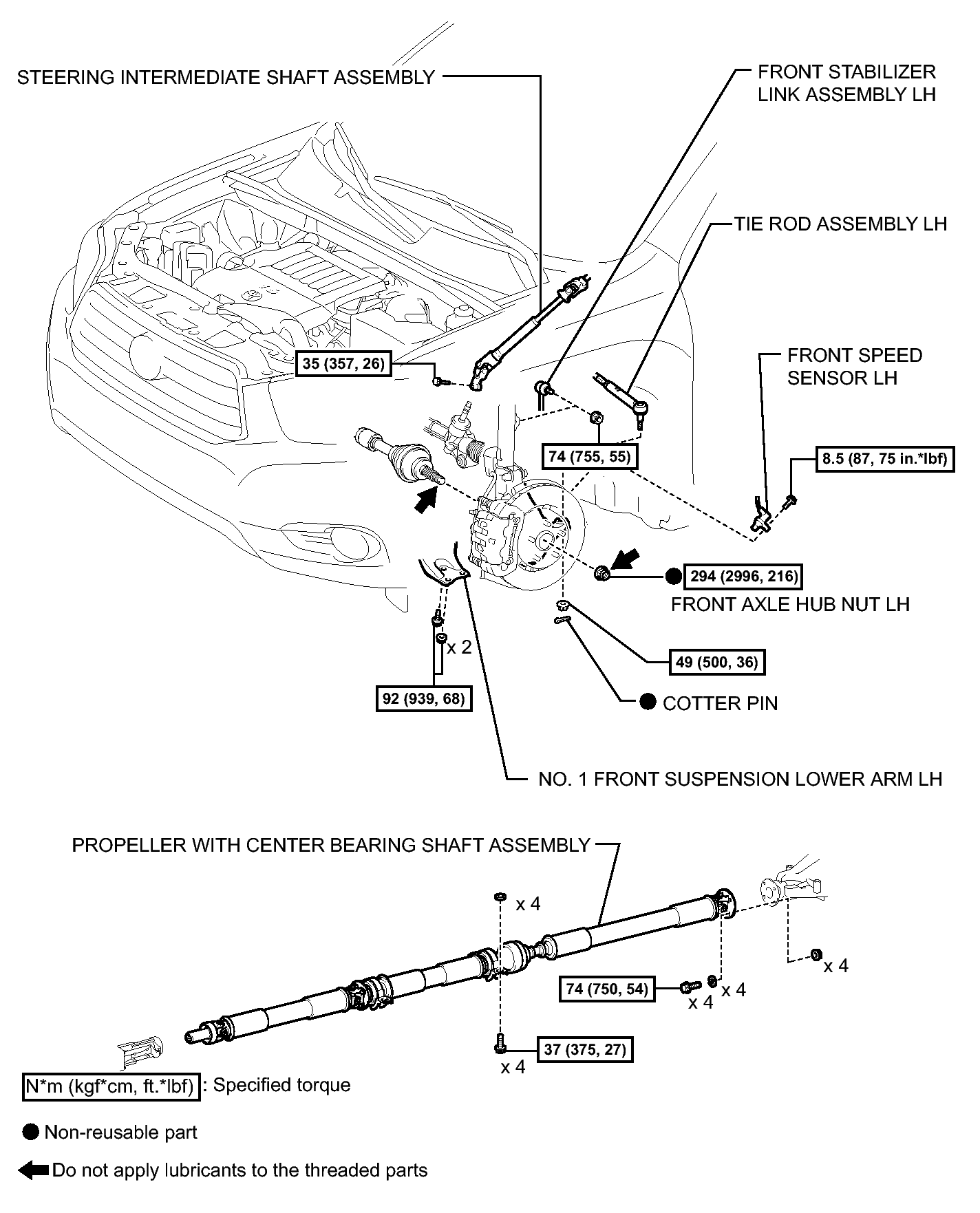

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components (8 Of 12)

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components With Torque Specification (9 Of 12)

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components With Torque Specification (10 Of 12)

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components With Torque Specifications (11 Of 12)

Fig 1: Identifying Steering Gear (For 2GR-FE) Replacement Components (12 Of 12)
