STEERING GEAR (for 1AR-FE): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

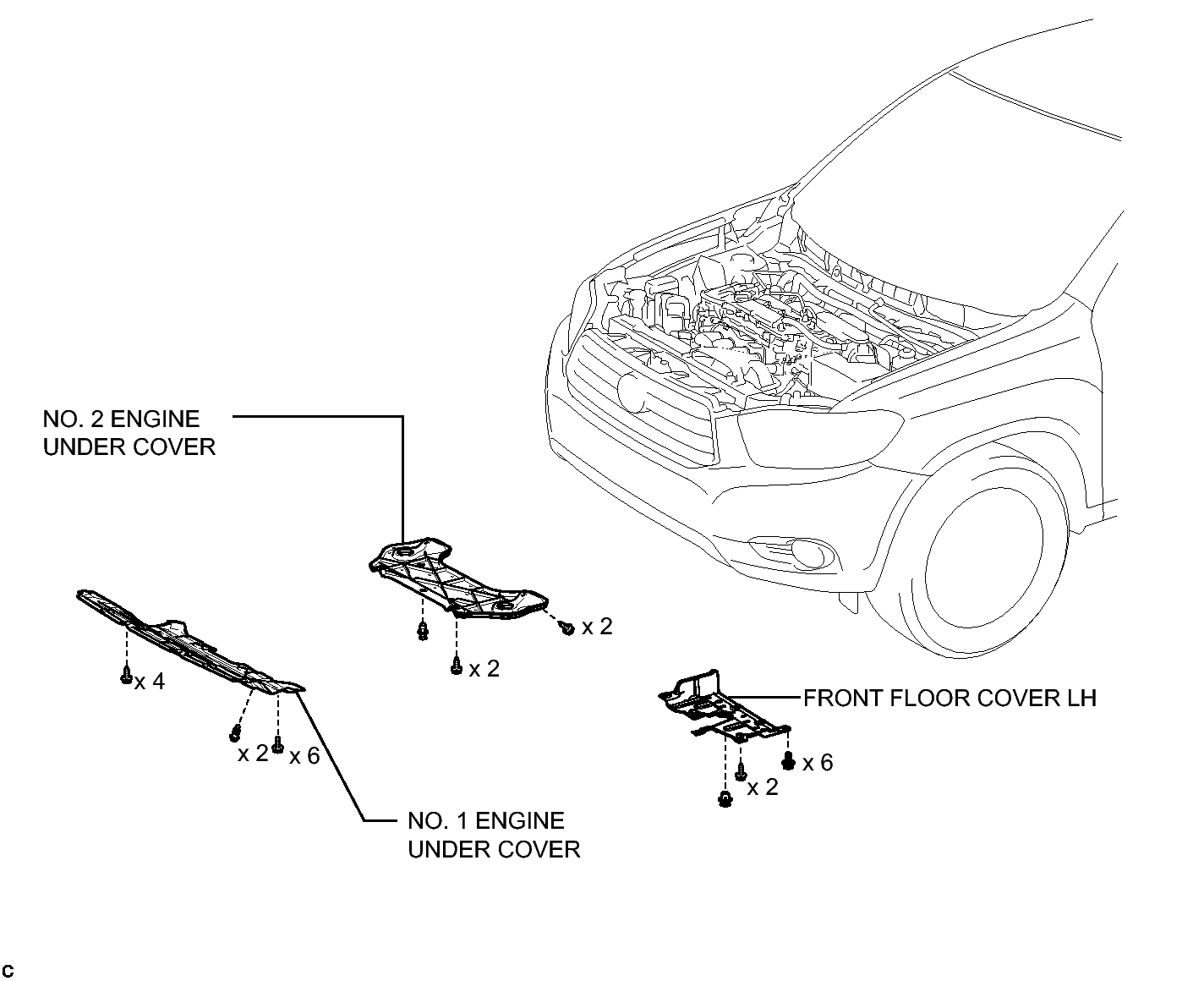

Fig 1: Identifying Steering Gear (For 1AR-FE) Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

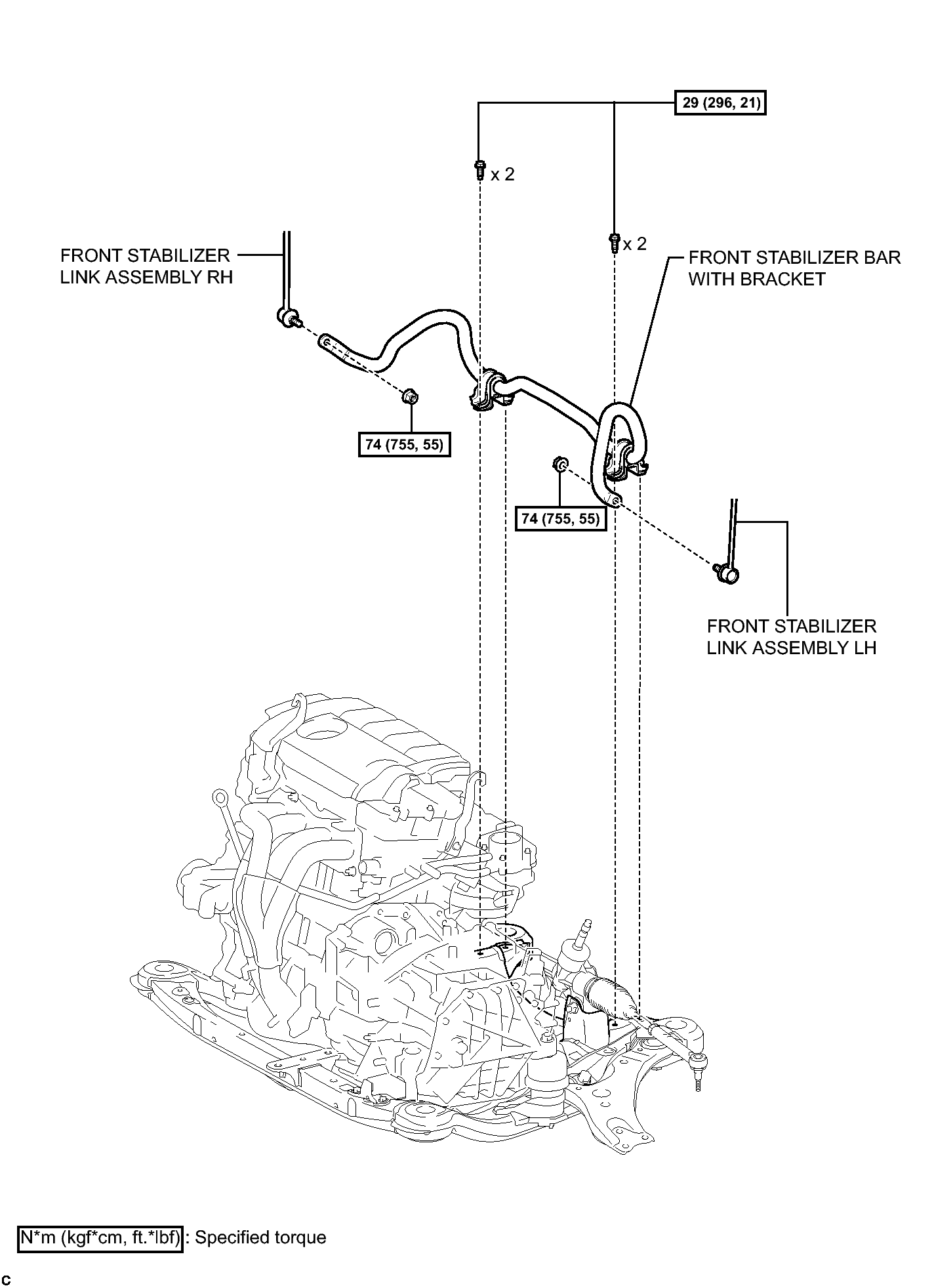

Fig 1: Identifying Steering Gear (For 1AR-FE) Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

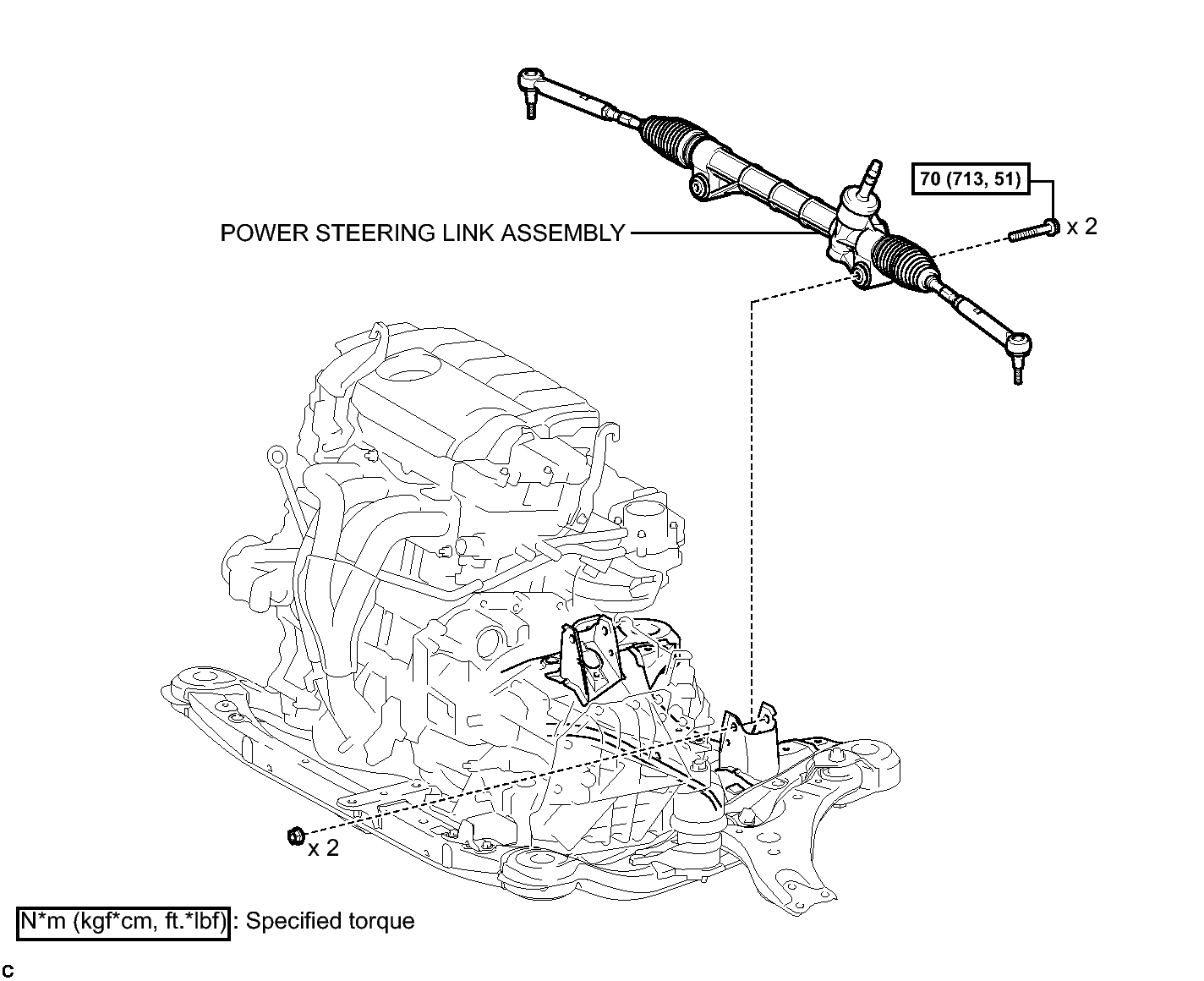

Fig 1: Identifying Steering Gear (For 1AR-FE) Replacement Components With Torque Specification (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

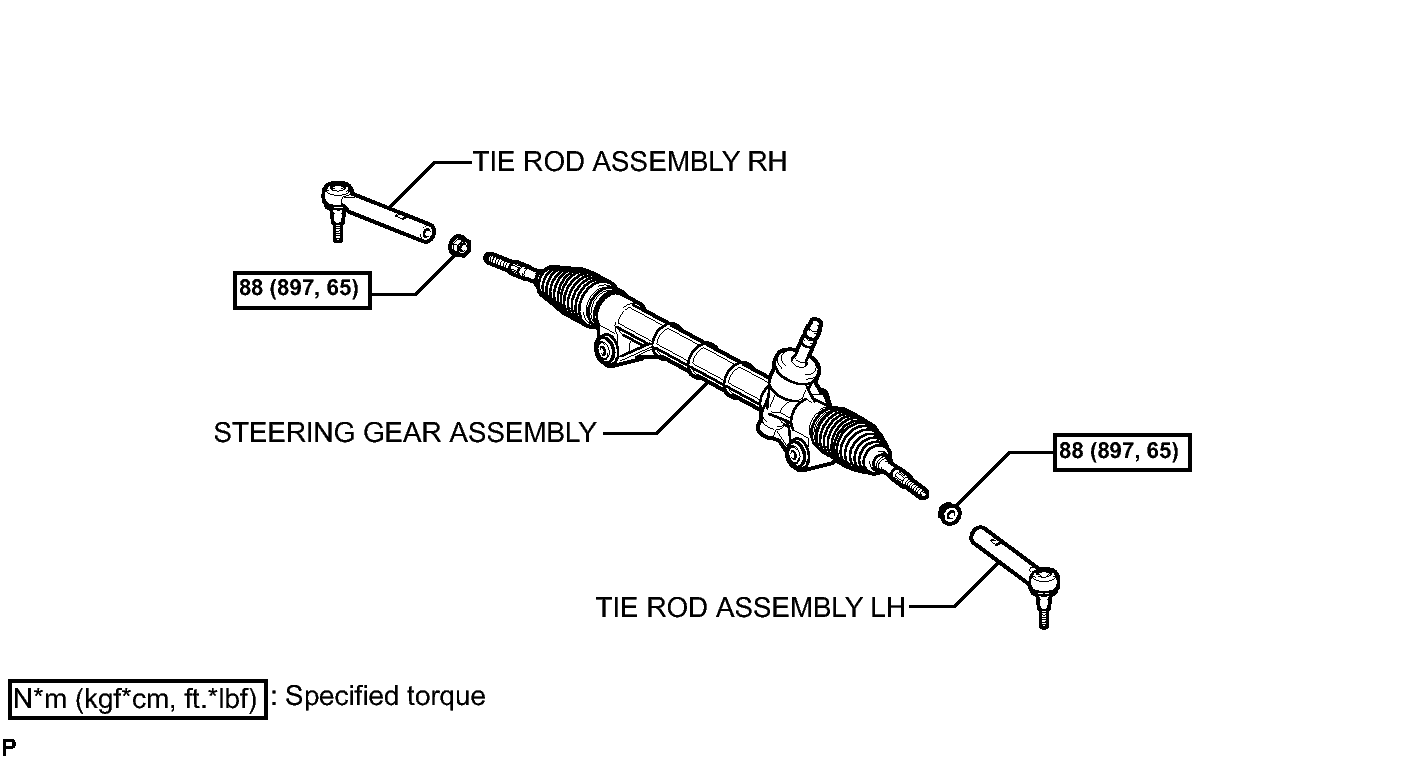

Fig 1: Identifying Steering Gear (For 1AR-FE) Replacement Components With Torque Specification (4 Of 6)

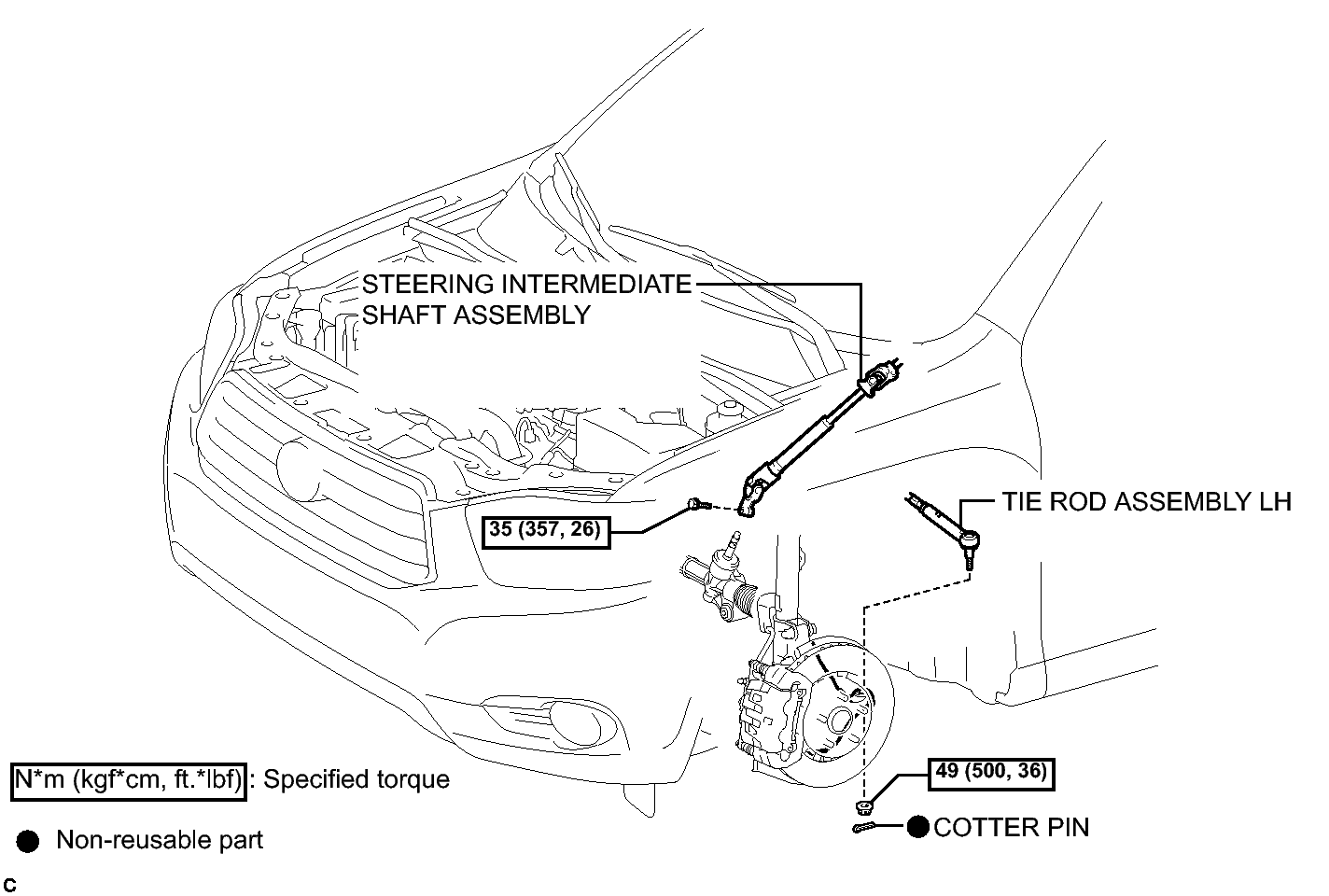

Fig 1: Identifying Steering Gear (For 1AR-FE) Replacement Components With Torque Specifications (5 Of 6)

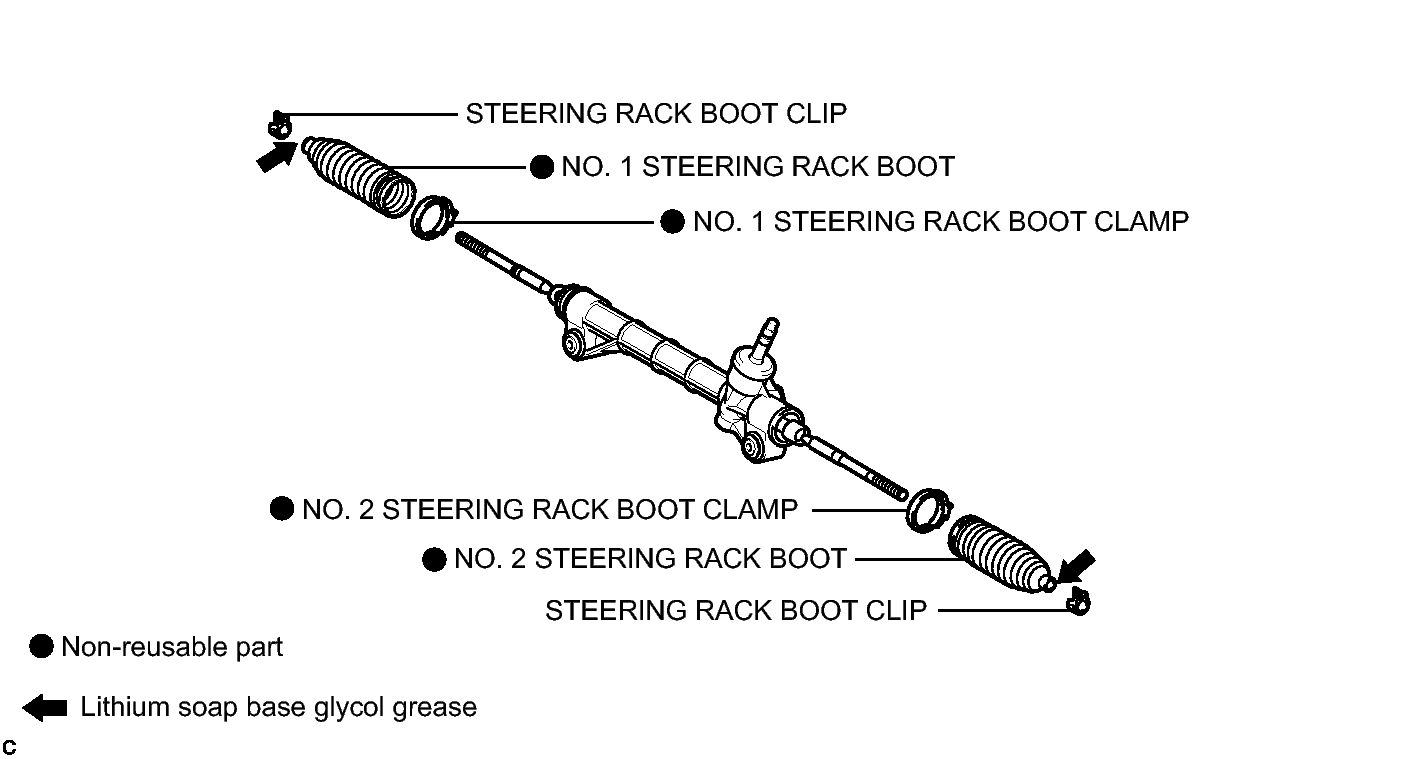

Fig 1: Identifying Steering Gear (For 1AR-FE) Replacement Components (6 Of 6)
