Transfer Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specification (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

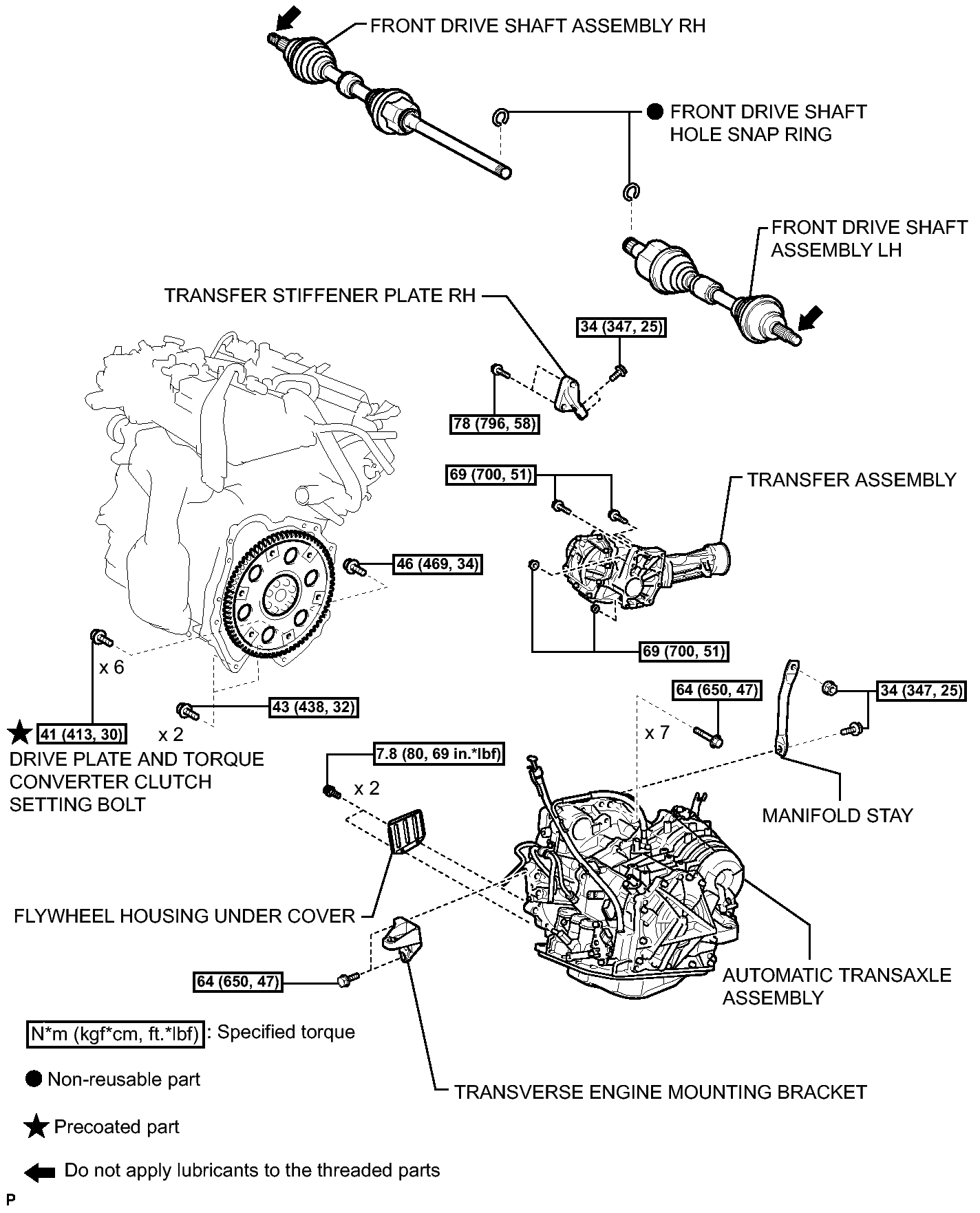

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (2 of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

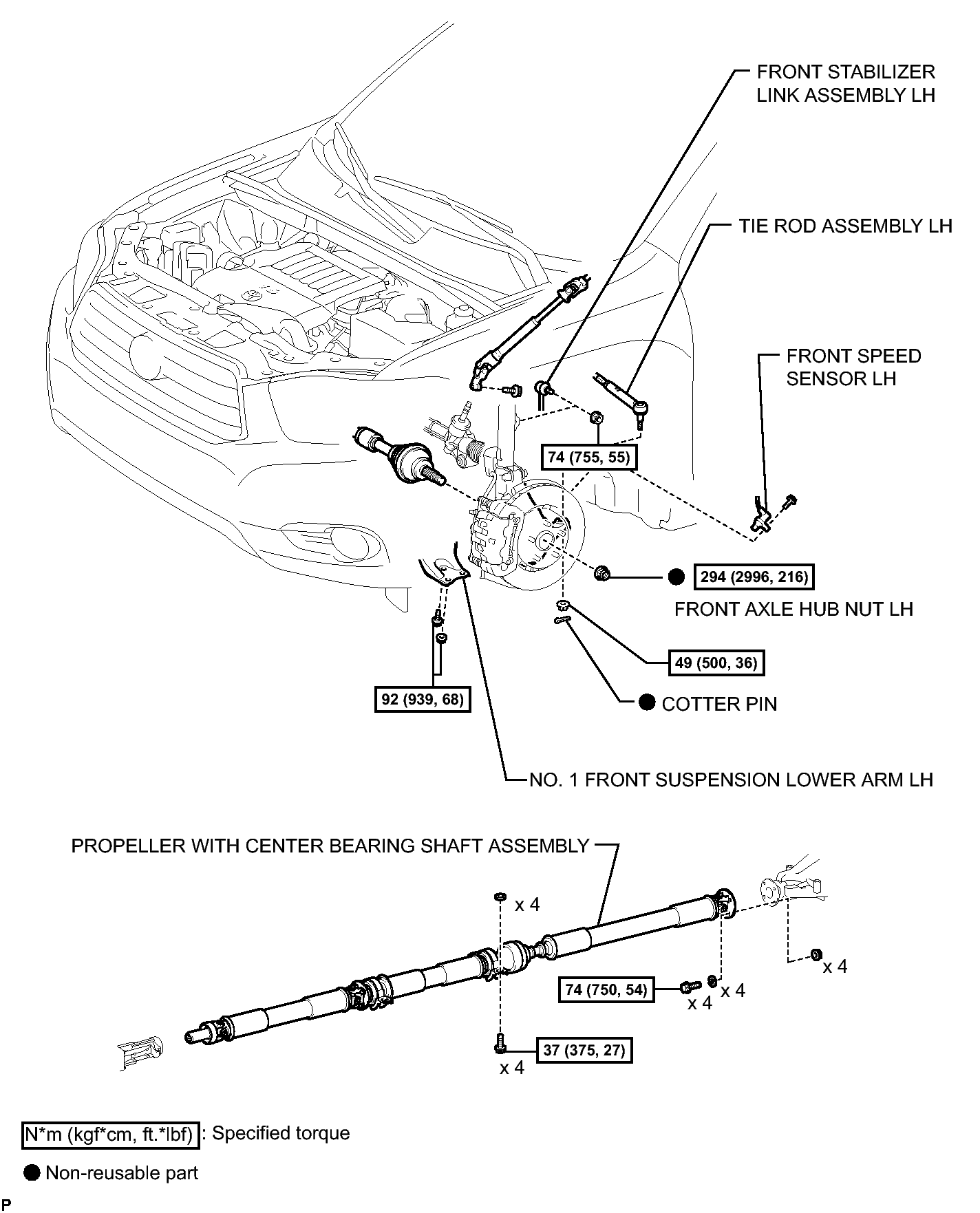

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specification (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

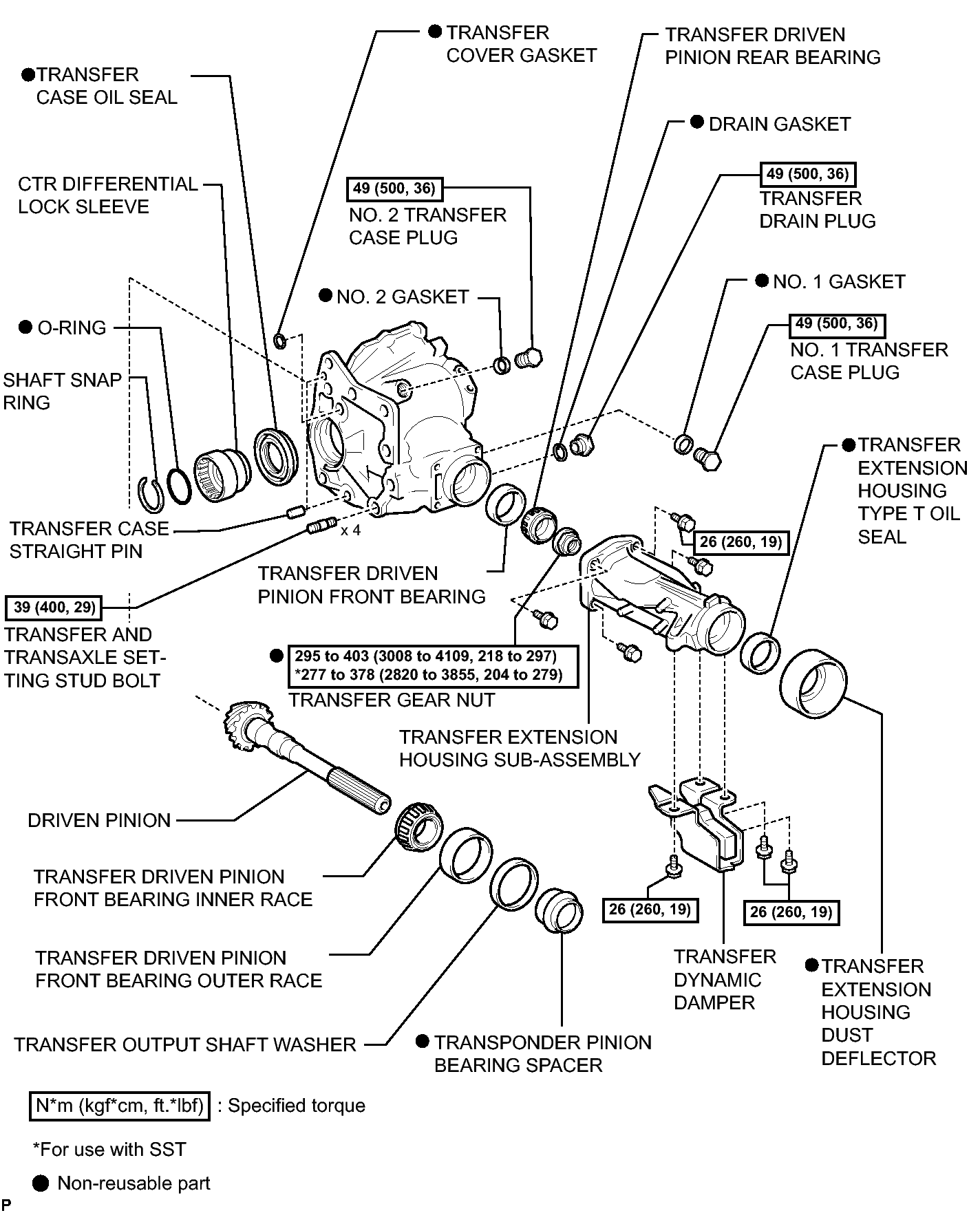

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specification (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

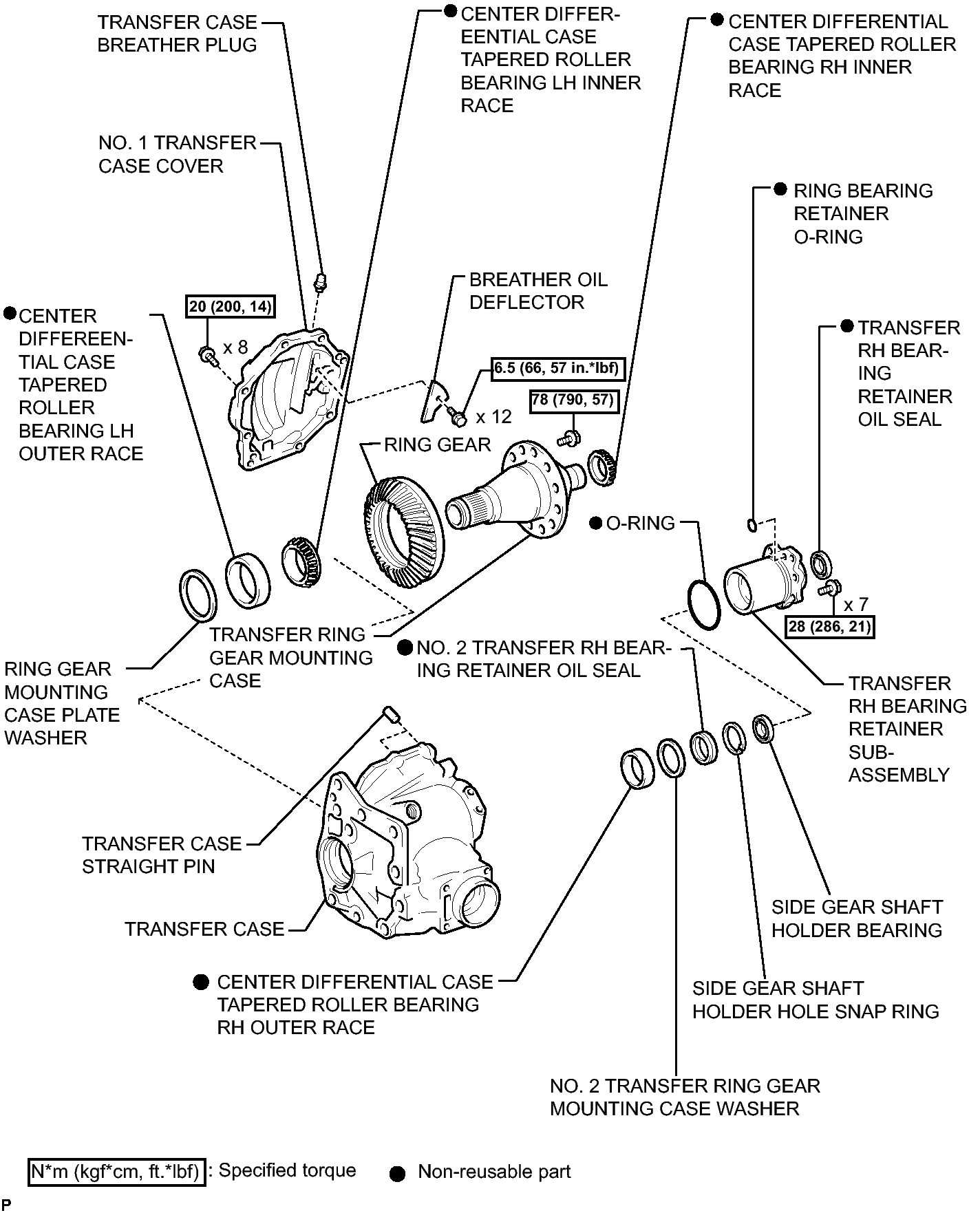

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specification (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (6 of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Transfer Assembly Replacement Components (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specification (8 Of 12)

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specification (9 Of 12)

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (10 of 12)

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (11 Of 12)

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (12 Of 12)
