Bearing Retainer Oil Seal: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Bearing Retainer Oil Seal Replacement Components (1 of 2)
GTY306359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

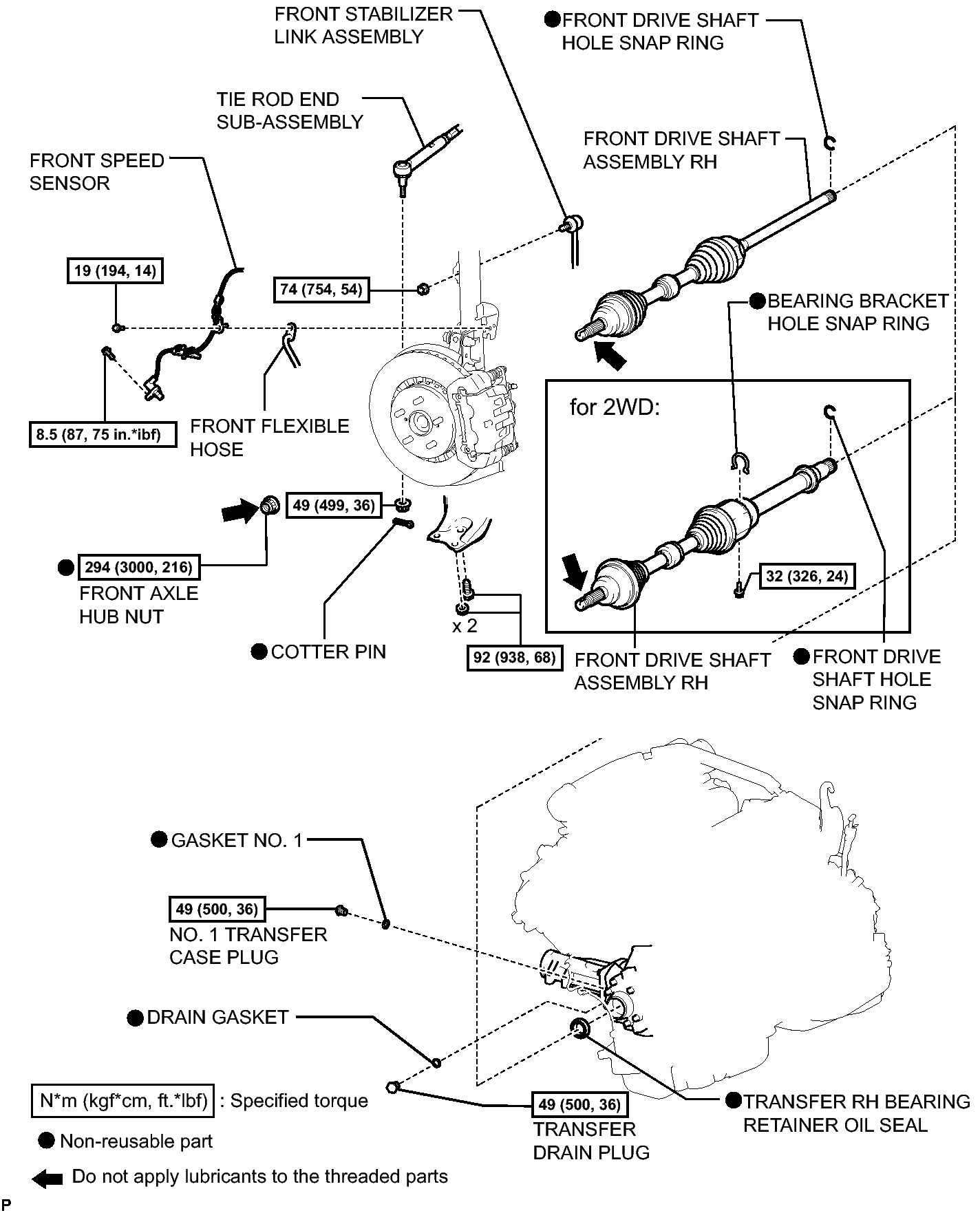

Fig 1: Identifying Bearing Retainer Oil Seal Replacement Components With Torque Specifications (2 of 2)
GTY305696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
