Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

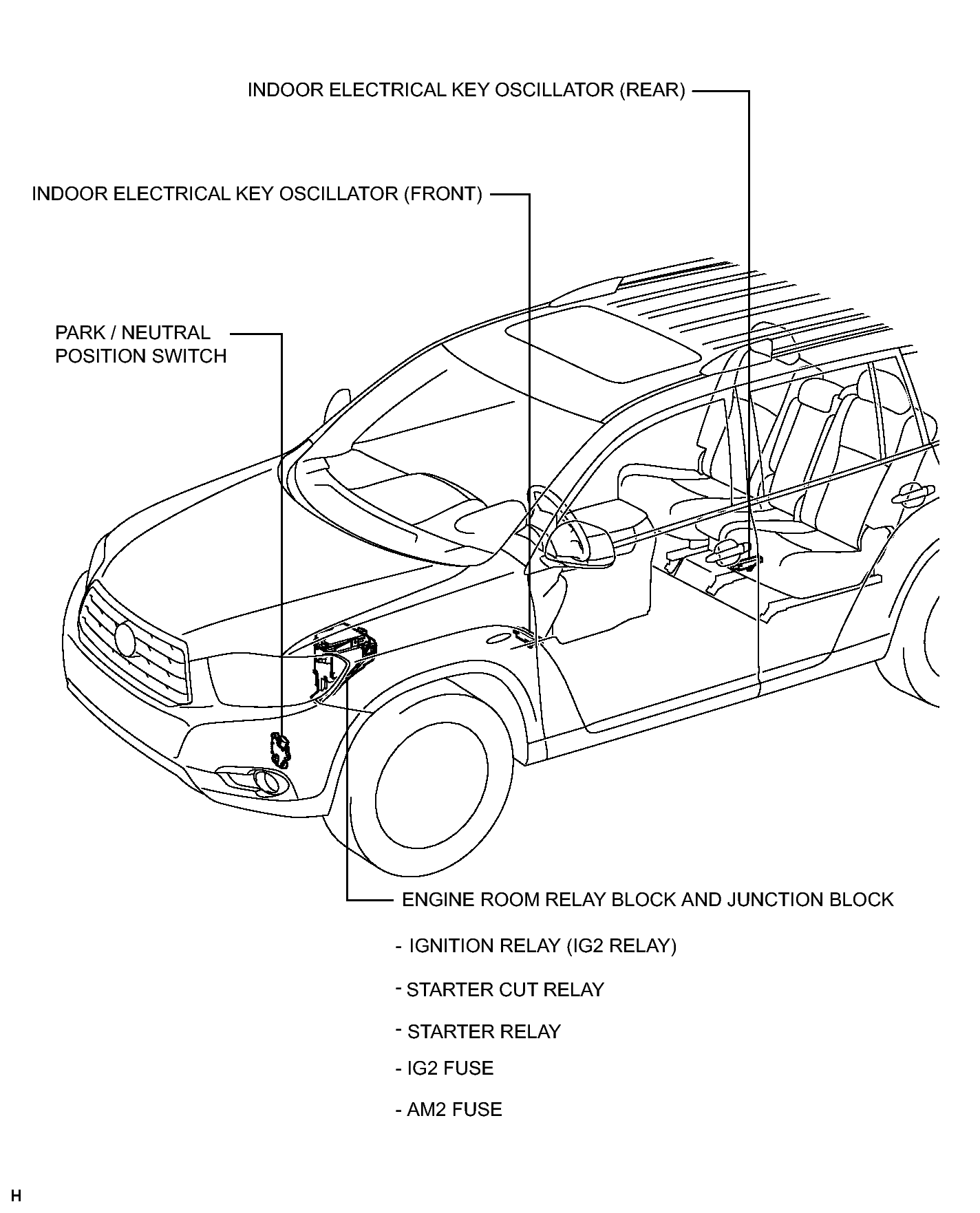

Fig 1: Identifying Smart Key System Parts Location (1 Of 2)
GTY199517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

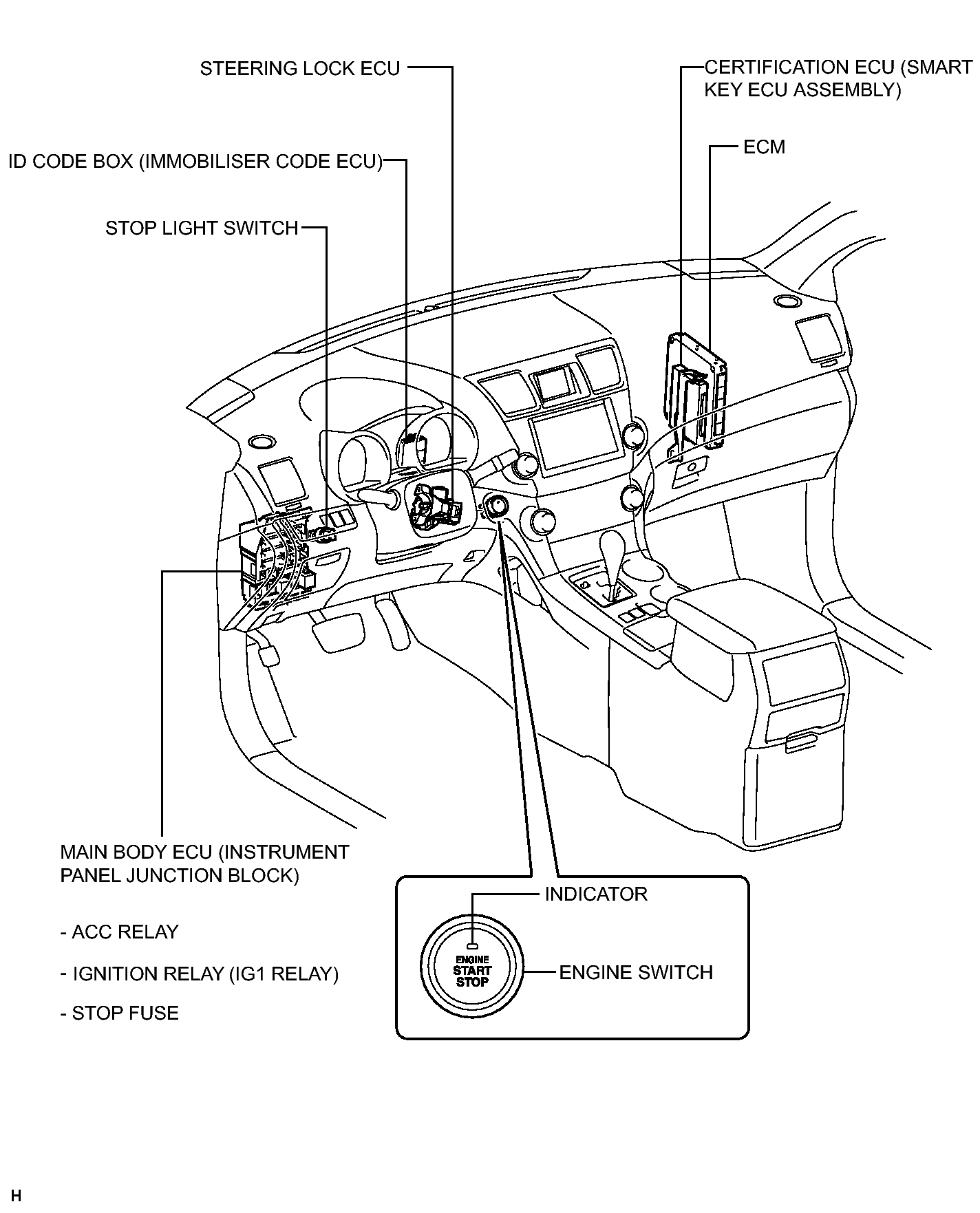

Fig 1: Identifying Smart Key System Parts Location (2 Of 2)
GTY199587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
