Vacuum Switching Valve: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE VACUUM SWITCHING VALVE ASSEMBLY
    1. Disconnect the 2 vacuum hoses and vacuum switching valve connector.

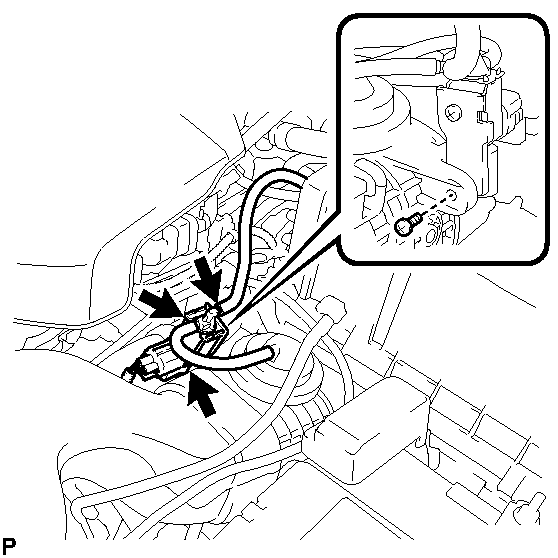

      Fig 1: Identifying Vacuum Switching Valve And Screw
      GTY179700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw and vacuum switching valve.
