Lighting System: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

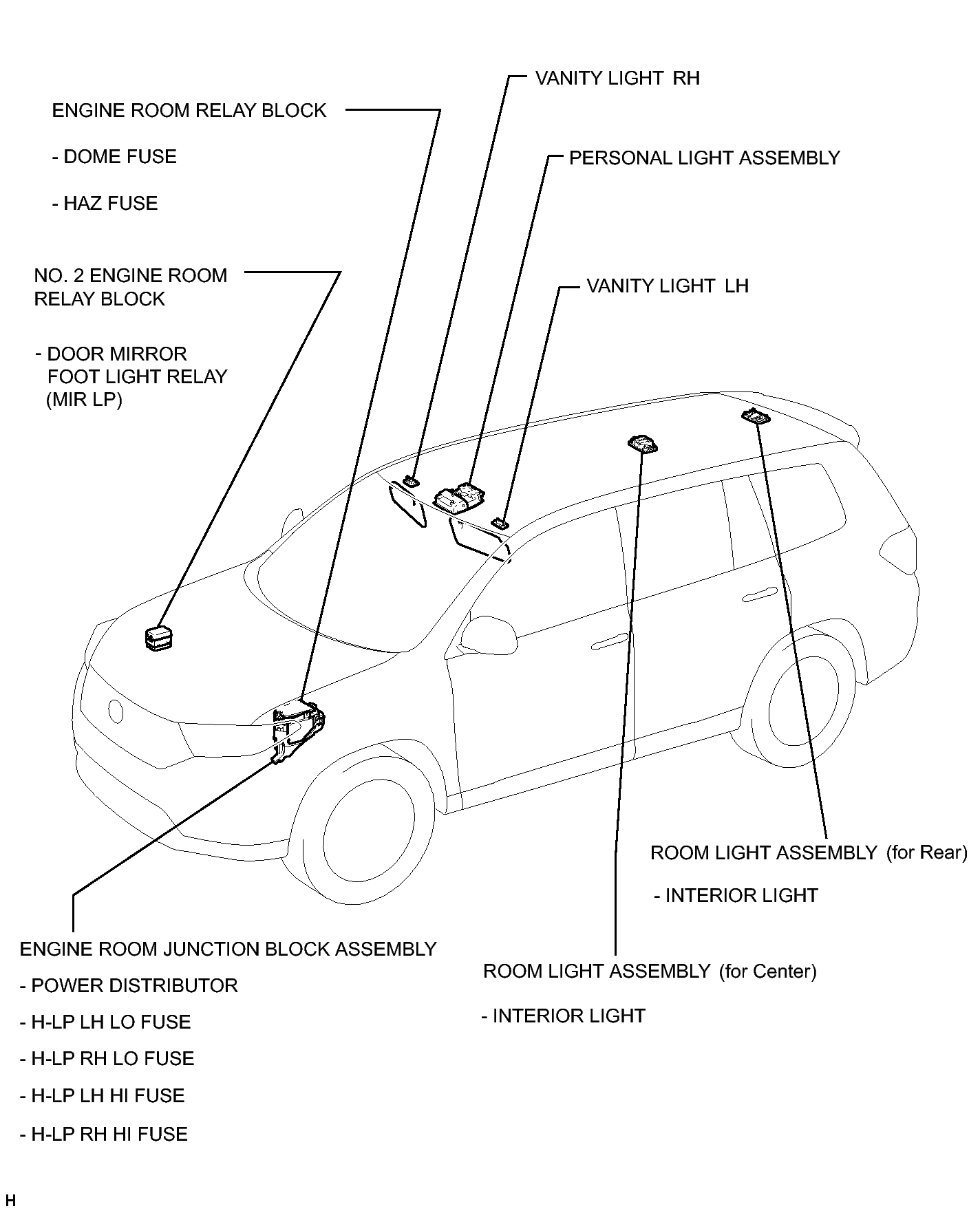

Fig 1: Identifying Lighting System Components Location (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

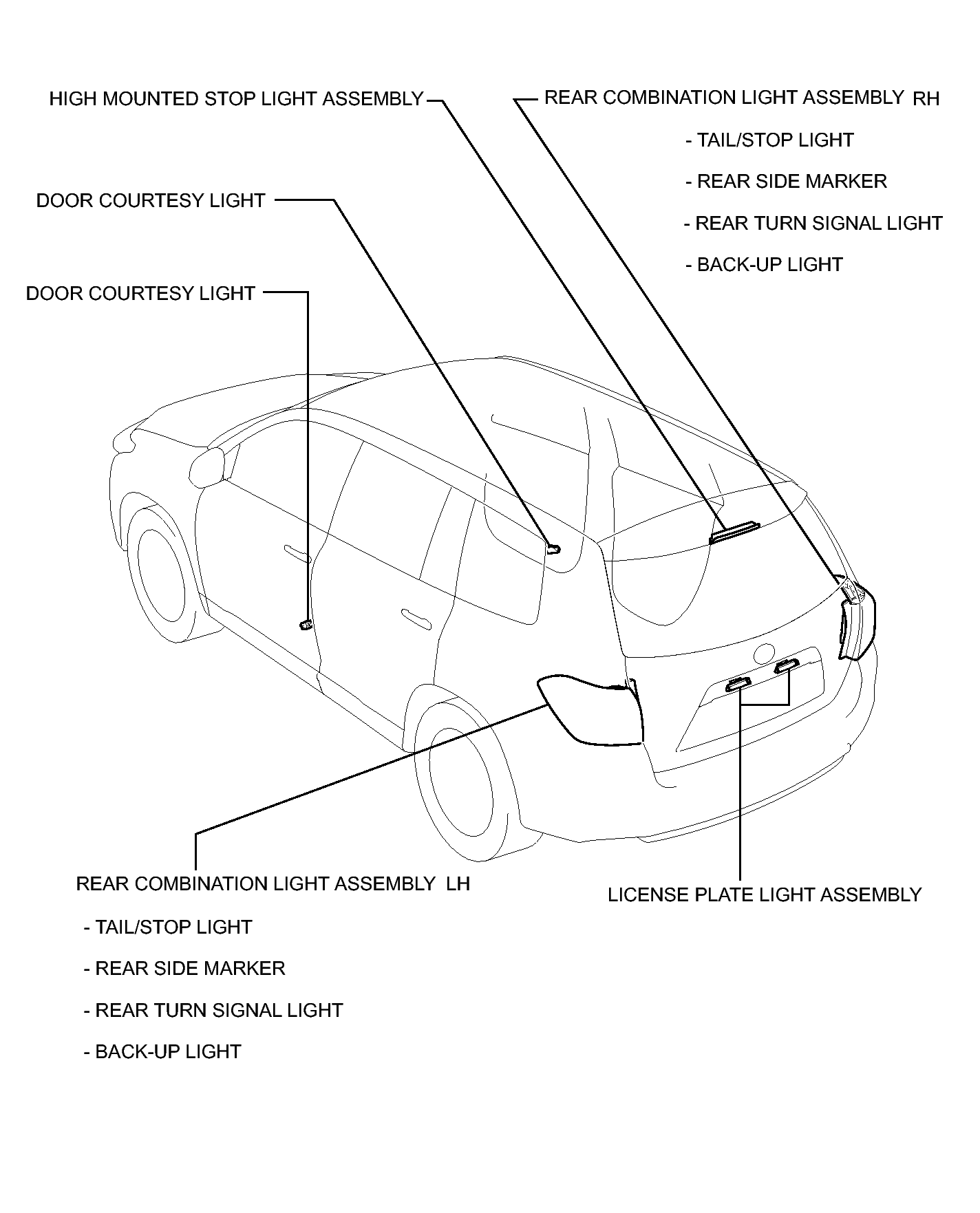

Fig 1: Identifying Lighting System Components Location (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

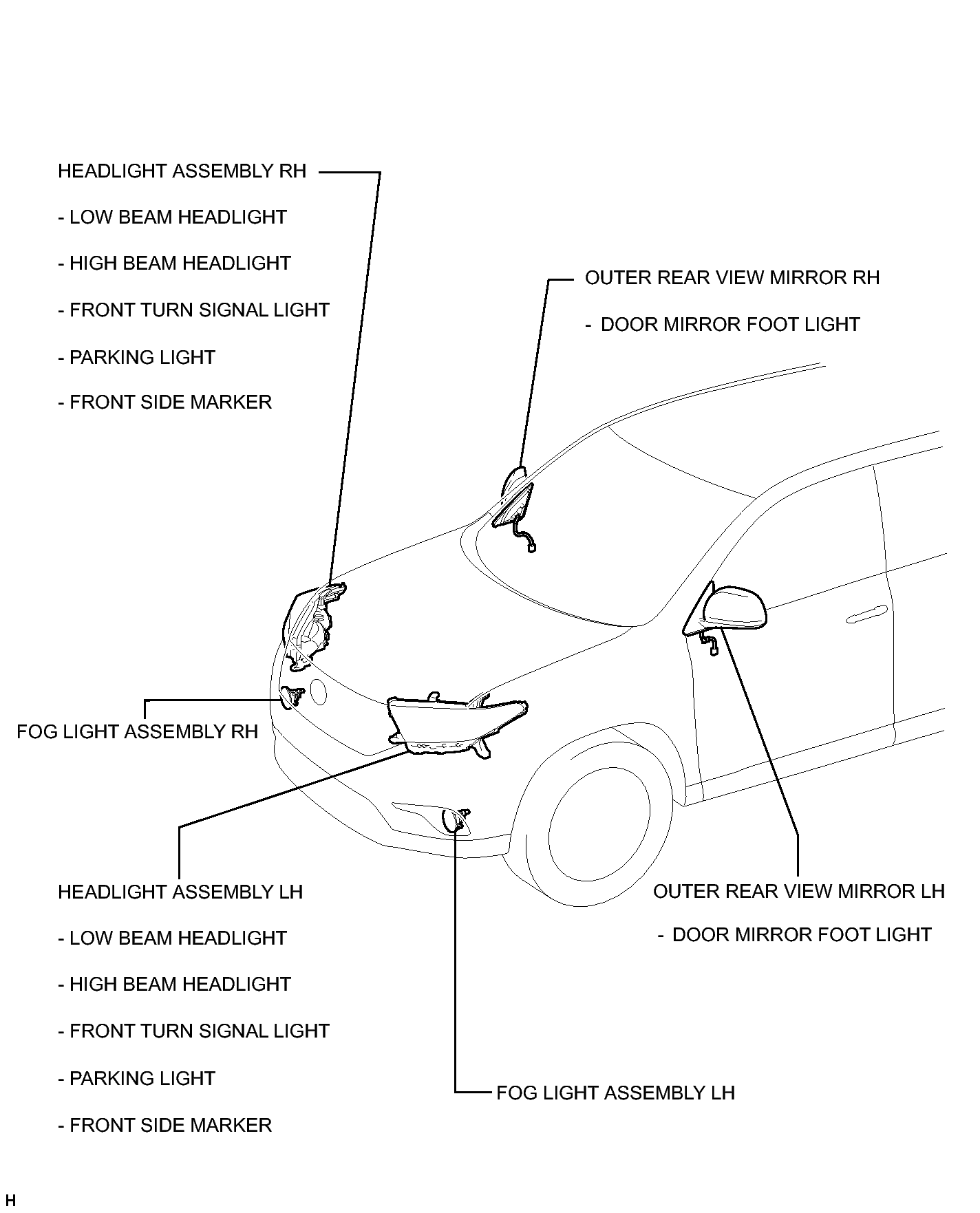

Fig 1: Identifying Lighting System Components Location (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

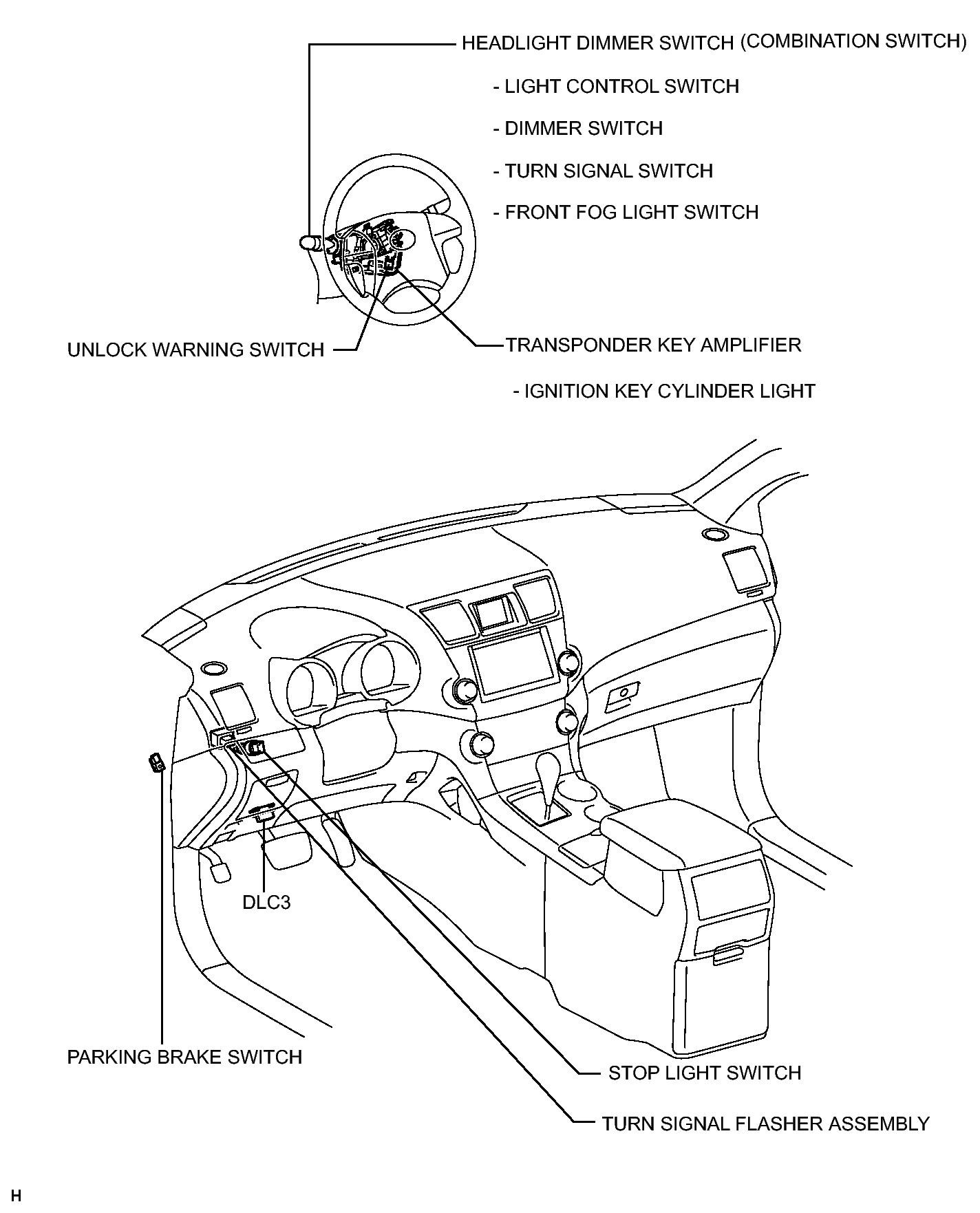

Fig 1: Identifying Lighting System Components Location (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

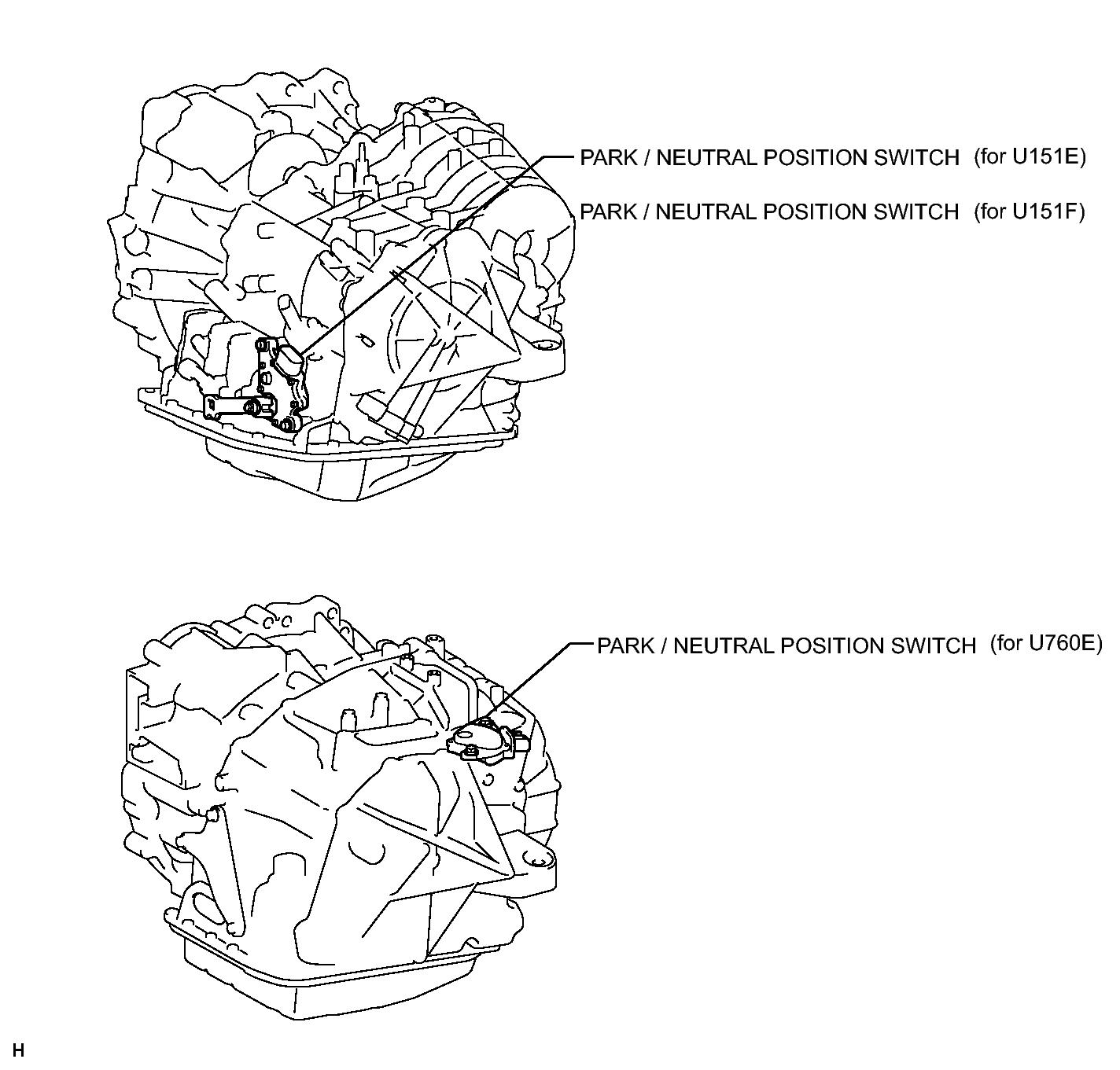

Fig 1: Identifying Lighting System Components Location (5 Of 7)

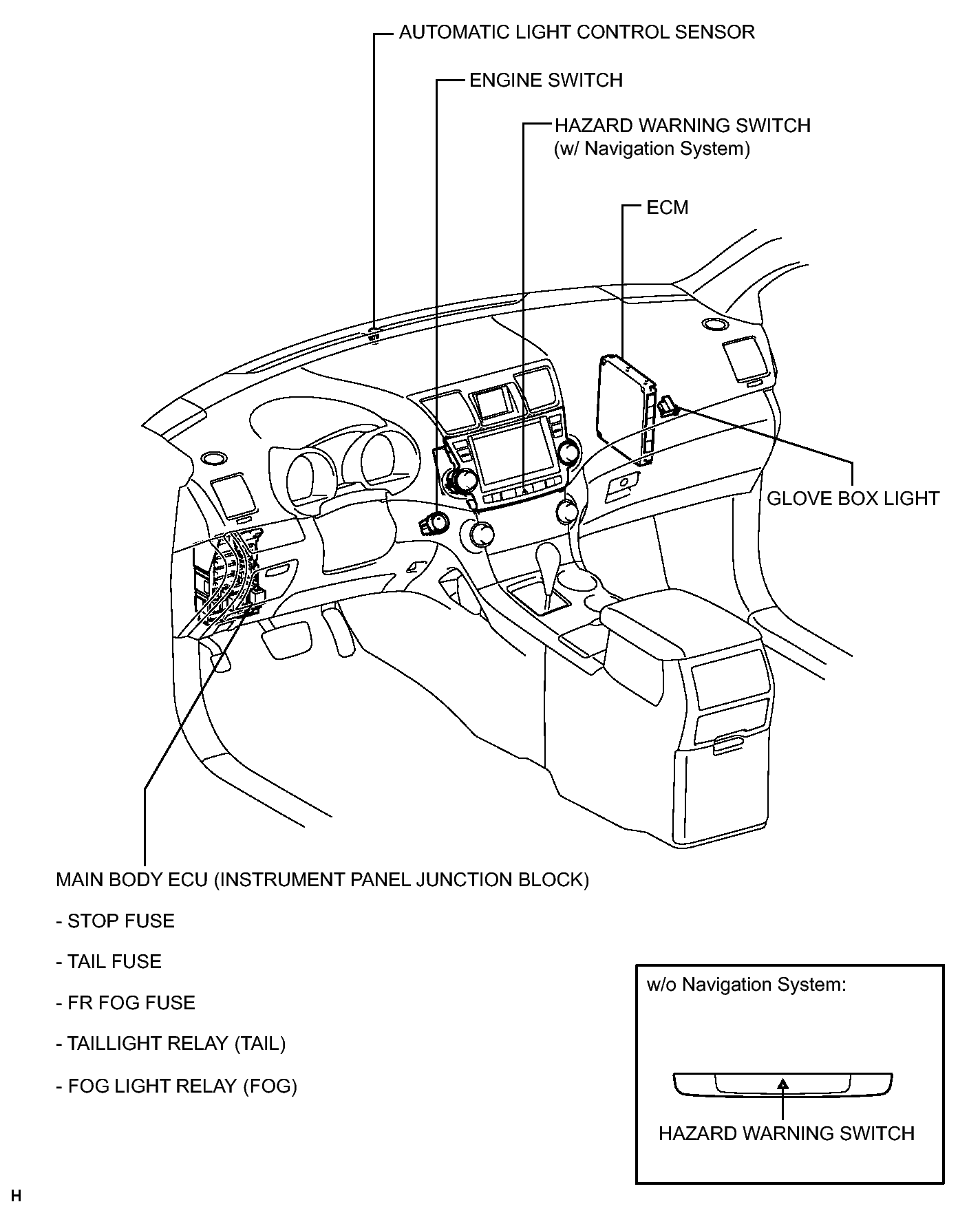

Fig 1: Identifying Lighting System Components Location (6 Of 7)

Fig 1: Identifying Lighting System Component Location (7 Of 7)
