Exhaust Pipe And Catalytic Converter: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Exhaust Pipe Replacement Components (1 Of 2)
GTY297569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

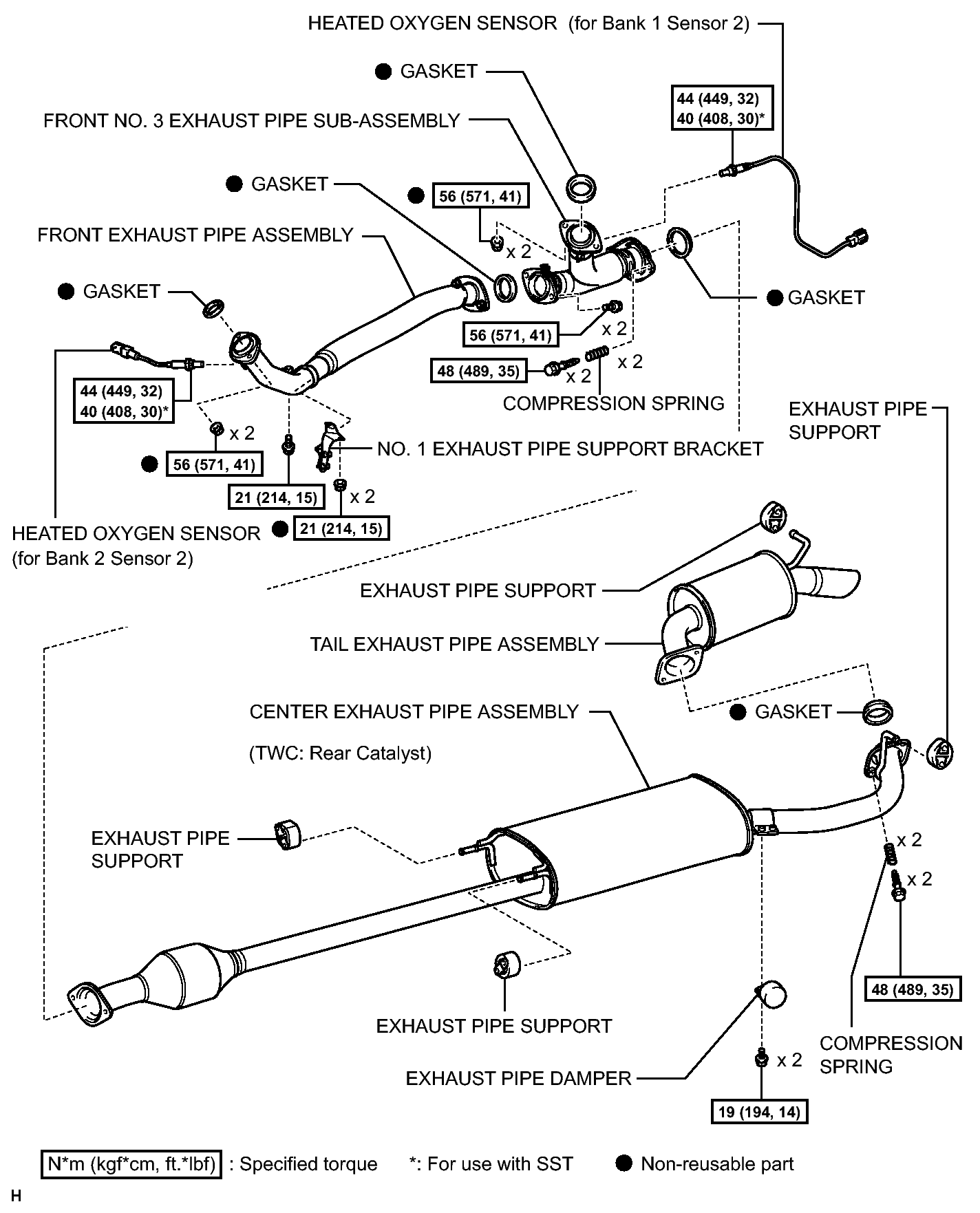

Fig 1: Identifying Exhaust Pipe Replacement Components With Torque Specifications (2 Of 2)
GTY173537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
