DTC P0617: Starter Relay Circuit High: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

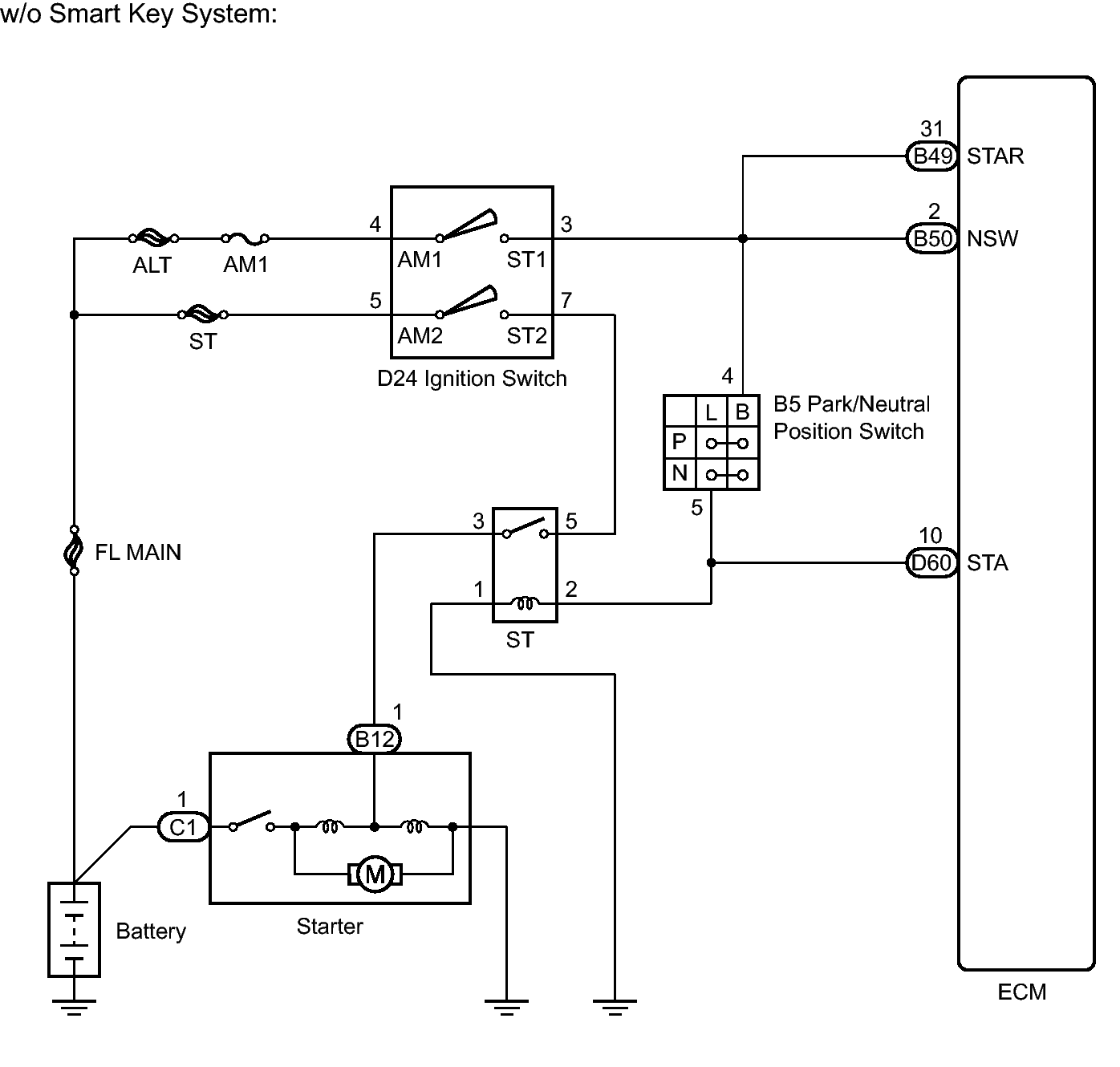

Fig 1: Identifying ECM Wiring Diagram (1 Of 2)
GTY295200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying ECM Wiring Diagram (2 Of 2)
GTY306737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
