Section 70 (Engine Control System (2GR-FE) (Diagnostic Codes (P00351-P1603) & Circuit Tests))
>>
SFI System
>>
DTC P0504: Brake Switch "A" / "B" Correlation; DTC P0724: Brake Switch "B" Circuit High
>>
Wiring Diagram
DTC P0504: Brake Switch "A" / "B" Correlation; DTC P0724: Brake Switch "B" Circuit High: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

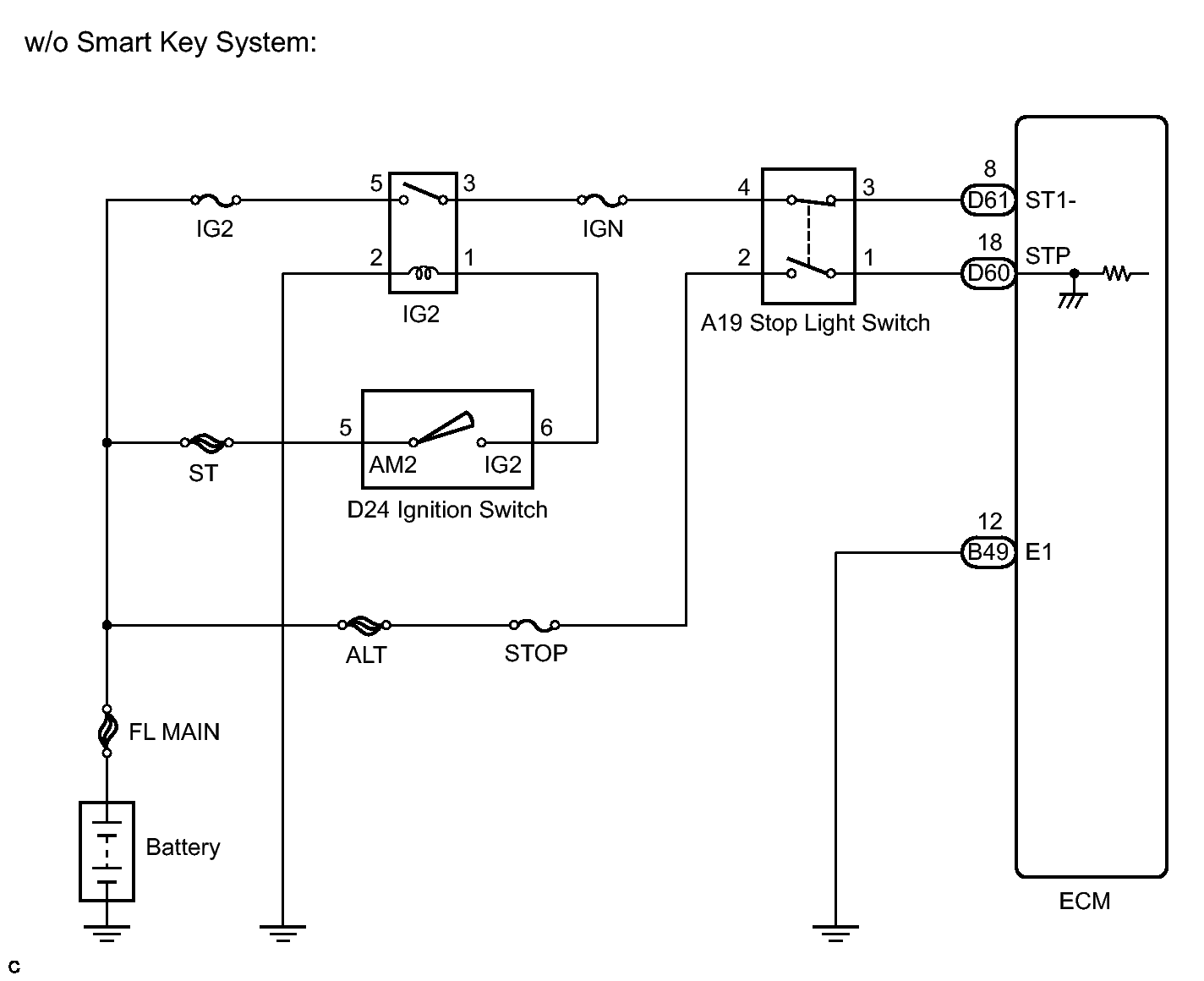

Fig 1: Identifying ECM Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

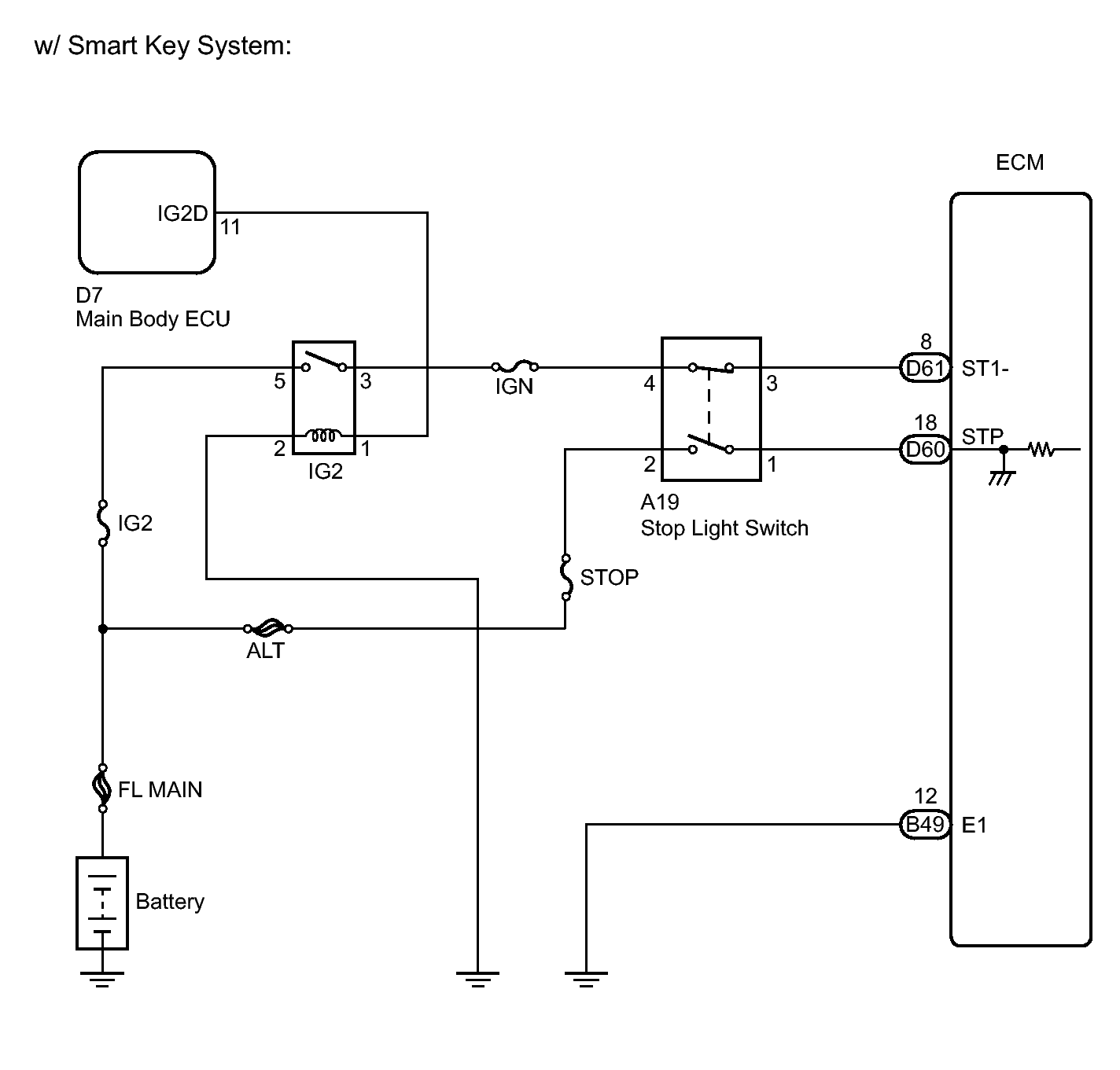

Fig 2: Identifying ECM Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
