Confirmation Driving Pattern

WARNING: This page is about a different variant/trim than selected.

P0504:

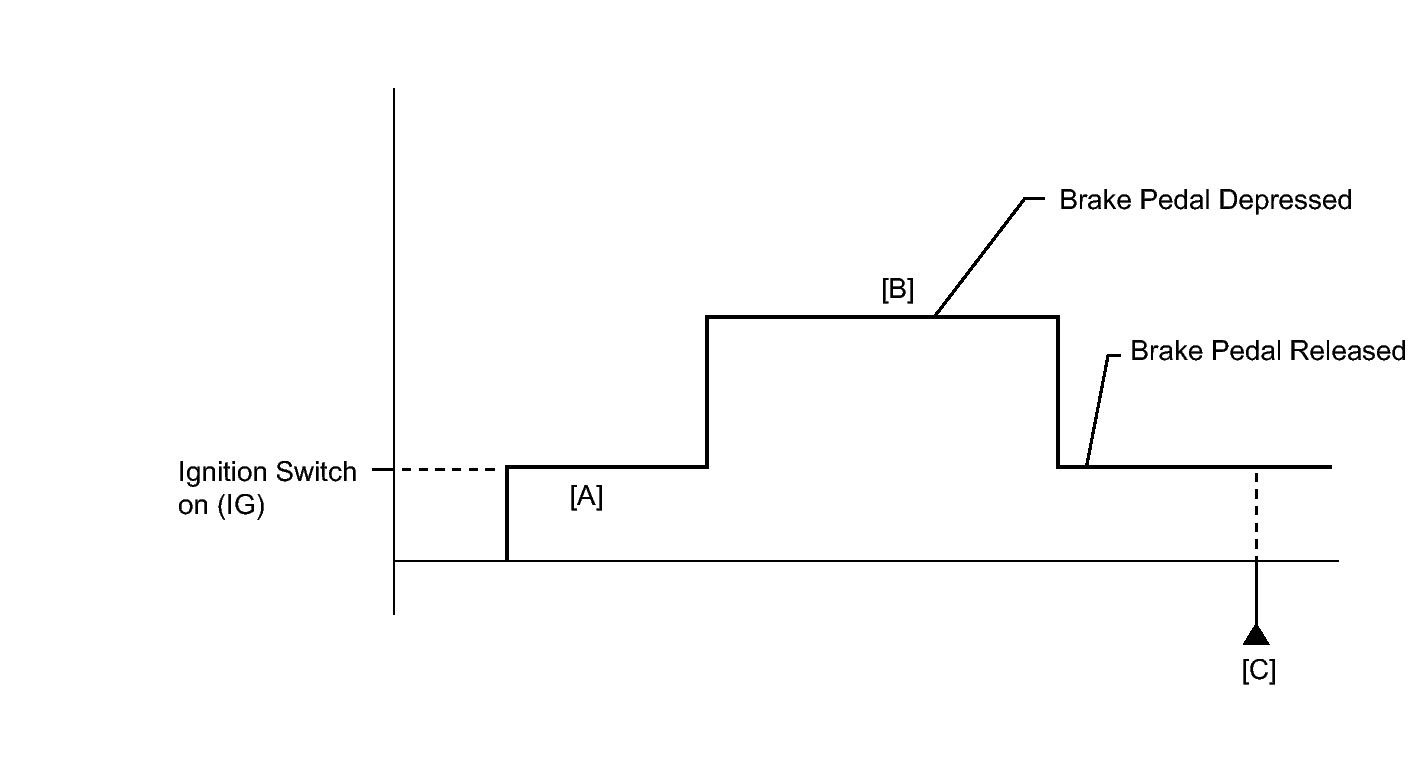

Fig 1: Identifying Confirmation Driving Pattern
GTY303713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the Techstream to the DLC3.
  2. Turn the ignition switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to DTC CHECK / CLEAR .
  4. Turn the ignition switch off and wait for 30 seconds.
  5. Turn the ignition switch on (IG) and turn the Techstream on [A].
  6. Depress and release the brake pedal [B].
  7. Enter the following menus: Powertrain / Engine / Trouble Codes.
  8. Read the DTC [C].
  9. If a DTC is output, the system is malfunctioning.

    HINT:

    If a DTC is not output, perform the following procedure.

  10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  11. Input the DTC: P0504.
  12. Check the DTC judgment result.
    Techstream Display Description
    NORMAL
    • DTC judgment completed
    • System normal
    ABNORMAL
    • DTC judgment completed
    • System abnormal
    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions
    UNKNOWN
    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit

    HINT:

    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows INCOMPLETE or UNKNOWN, perform step [B] again.
  13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  14. Check the judgment result.

    HINT:

    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows NORMAL, the system is normal.
  15. If the test result is INCOMPLETE or UNKNOWN and no DTC is output, perform a universal trip and check for permanent DTCs. Refer to DTC CHECK / CLEAR .

    HINT:

    • If a permanent DTC is output, the system is malfunctioning.
    • If no permanent DTC is output, the system is normal.

P0724:

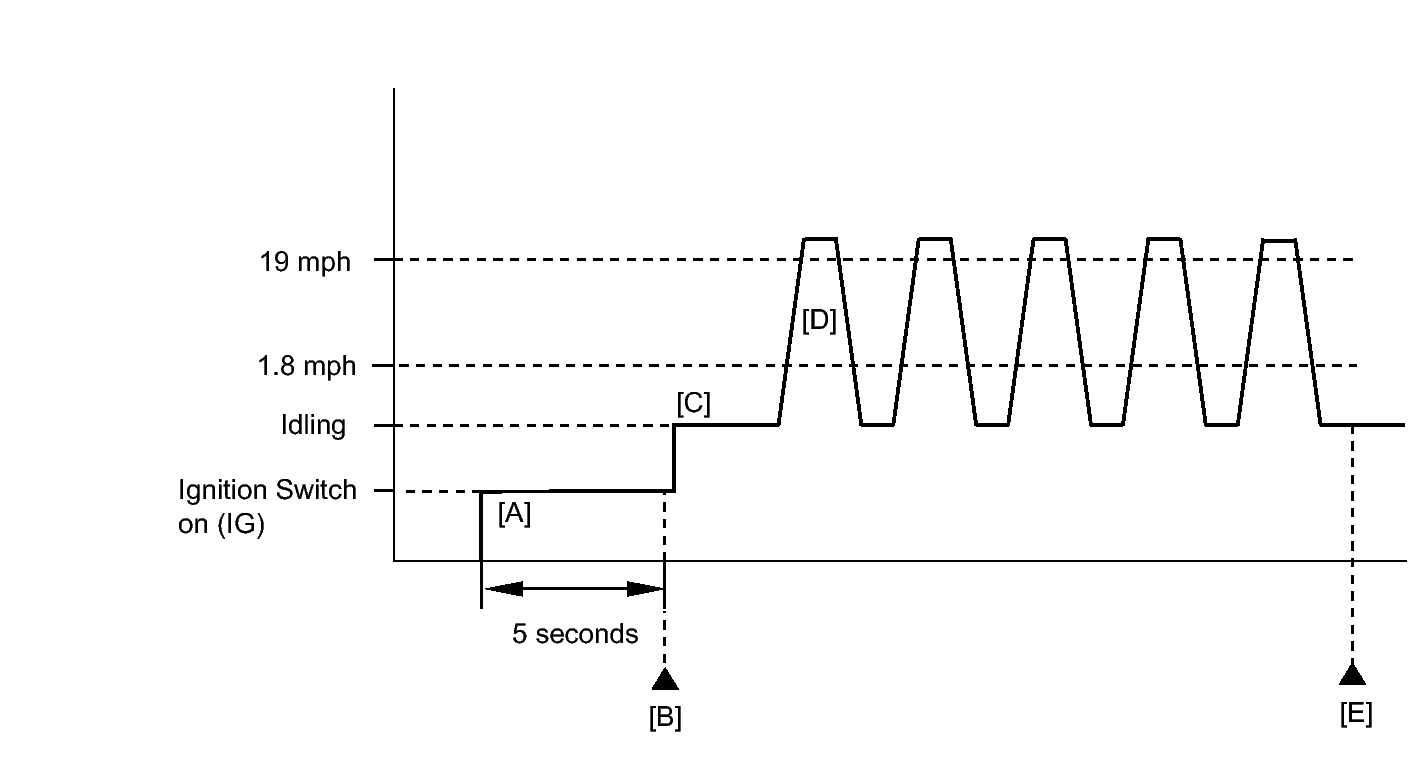

Fig 2: Identifying Confirmation Driving Pattern
GTY295690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the Telecaster to the DLC1.
  2. Turn the ignition switch on (IG) and turn the Telecaster on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to DTC CHECK / CLEAR .
  4. Turn the ignition switch off and wait for 30 seconds.
  5. Turn the ignition switch on (IG) and turn the Techstream on [A].
  6. Wait 5 seconds after clear the DTCs.
  7. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
  8. Read the pending DTC [B].
  9. If a pending DTC is output, the system is malfunctioning.

    HINT:

    If a pending DTC is not output, perform the following procedure.

  10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  11. Input the DTC: P0724.
  12. Check the DTC judgment result.
    Techstream Display Description
    NORMAL
    • DTC judgment completed
    • System normal
    ABNORMAL
    • DTC judgment completed
    • System abnormal
    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions
    UNKNOWN
    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
    WARNING:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    HINT:

    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [C] through [E].
  13. Start the engine [C].
  14. Accelerate the vehicle to 19 mph (30 km/h) or more, depress the brake pedal and decelerate the vehicle to 1.8 mph (3 km/h) or less [D]. Repeat step [D] 5 times.
  15. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  16. Check the DTC judgment result [E].

    HINT:

    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows NORMAL, the system is normal.
  17. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to DTC CHECK / CLEAR .

    HINT:

    • If a permanent DTC is output, the system is malfunctioning.
    • If no permanent DTC is output, the system is normal.
