DTC P0500: Vehicle Speed Sensor "A": Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

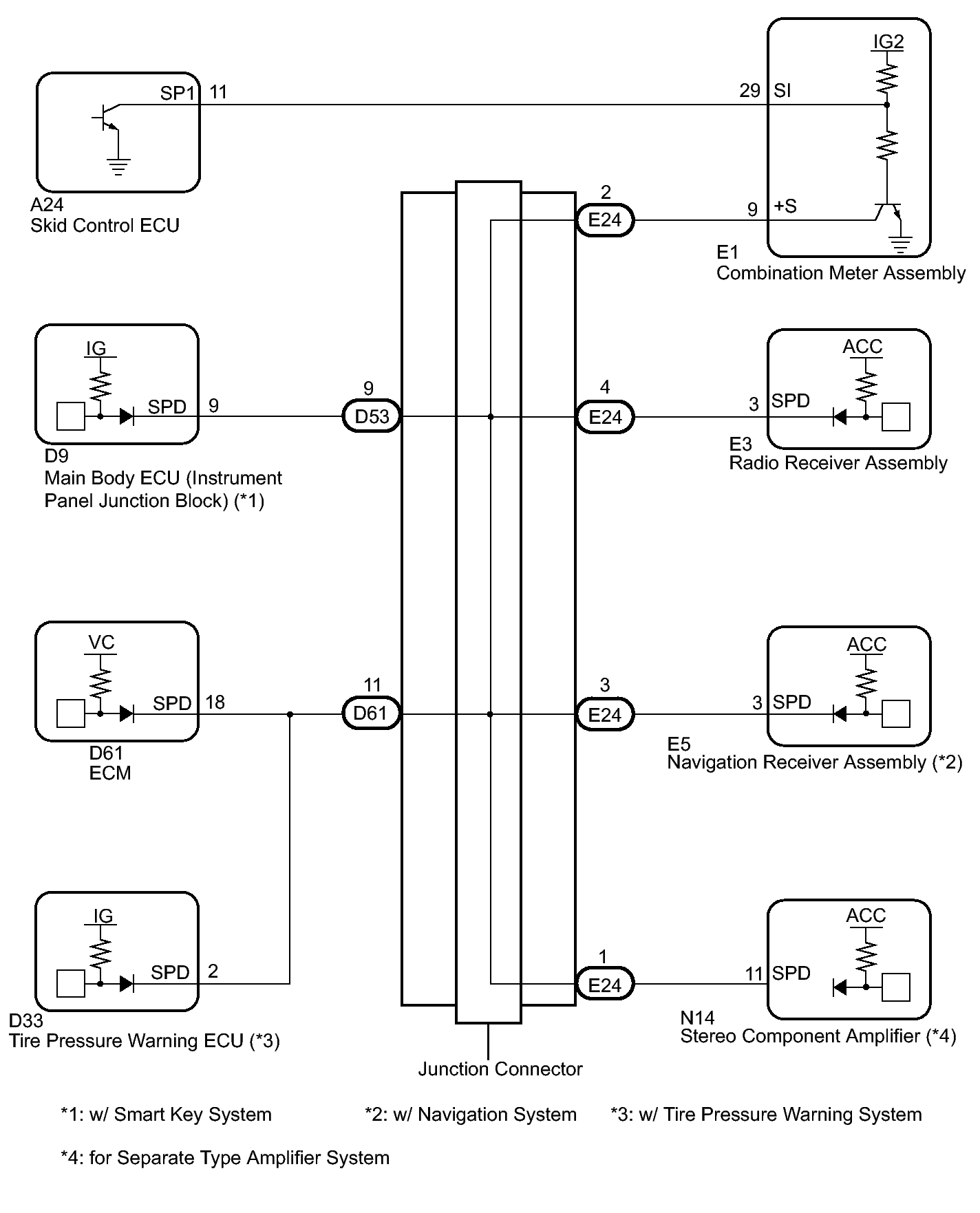

Fig 1: Identifying Junction Connector Wiring Diagram
GTY305577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
