Catalyst Location
WARNING: This page is about a different variant/trim than selected.

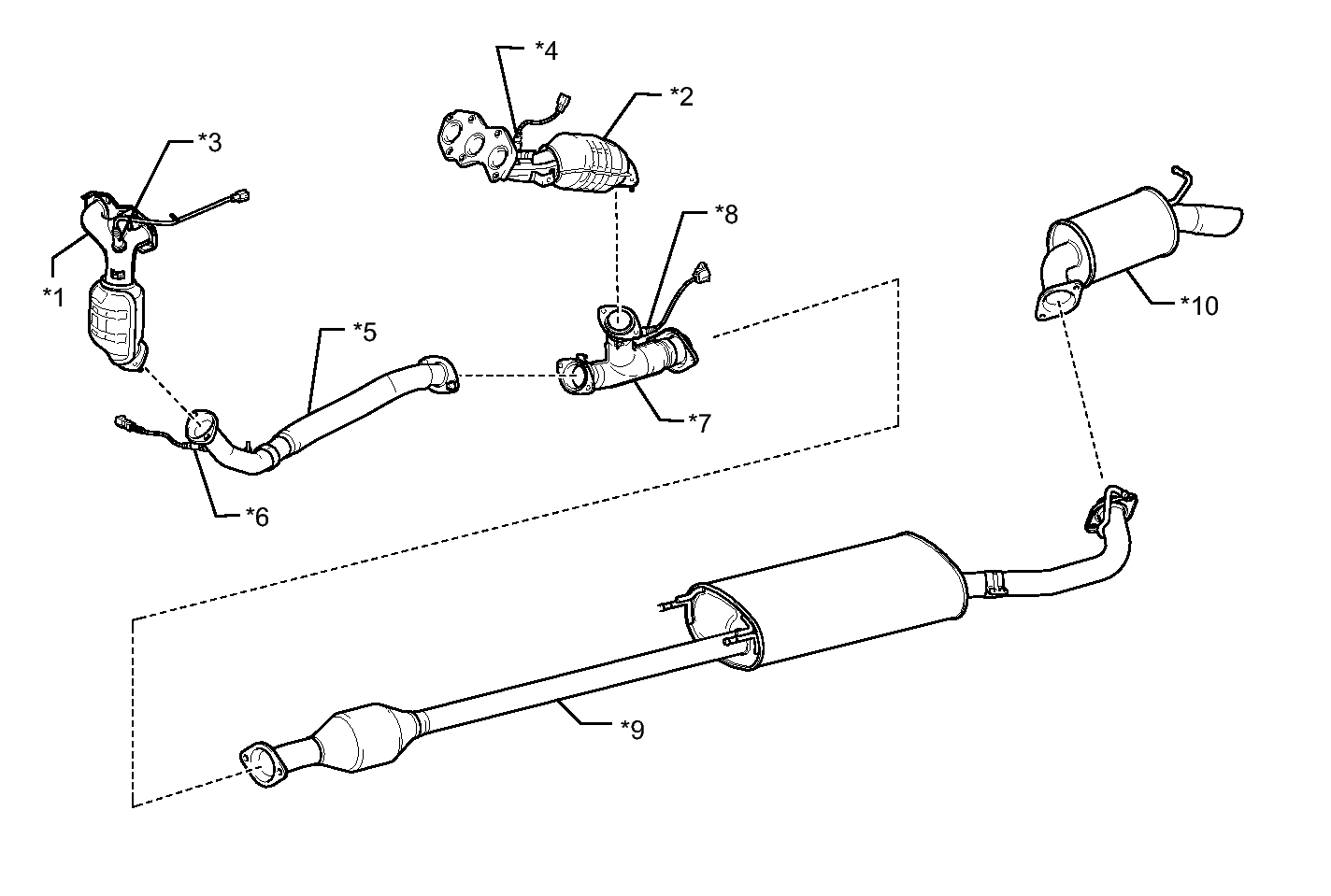

TEXT IN ILLUSTRATION
| *1 | Exhaust Manifold Sub-assembly LH (TWC: Front Catalyst) |
*2 | Exhaust Manifold Sub-assembly RH (TWC: Front Catalyst) |
| *3 | Air Fuel Ratio Sensor (Bank 2 Sensor 1) |
*4 | Air Fuel Ratio Sensor (Bank 1 Sensor 1) |
| *5 | Front Exhaust Pipe Assembly | *6 | Heated Oxygen Sensor (Bank 2 Sensor 2) |
| *7 | Front No. 3 Exhaust Pipe Sub-assembly | *8 | Heated Oxygen Sensor (Bank 1 Sensor 2) |
| *9 | Center Exhaust Pipe Assembly (TWC: Rear Catalyst) |
*10 | Tail Exhaust Pipe Assembly |
