DTC P0230: Fuel Pump Primary Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

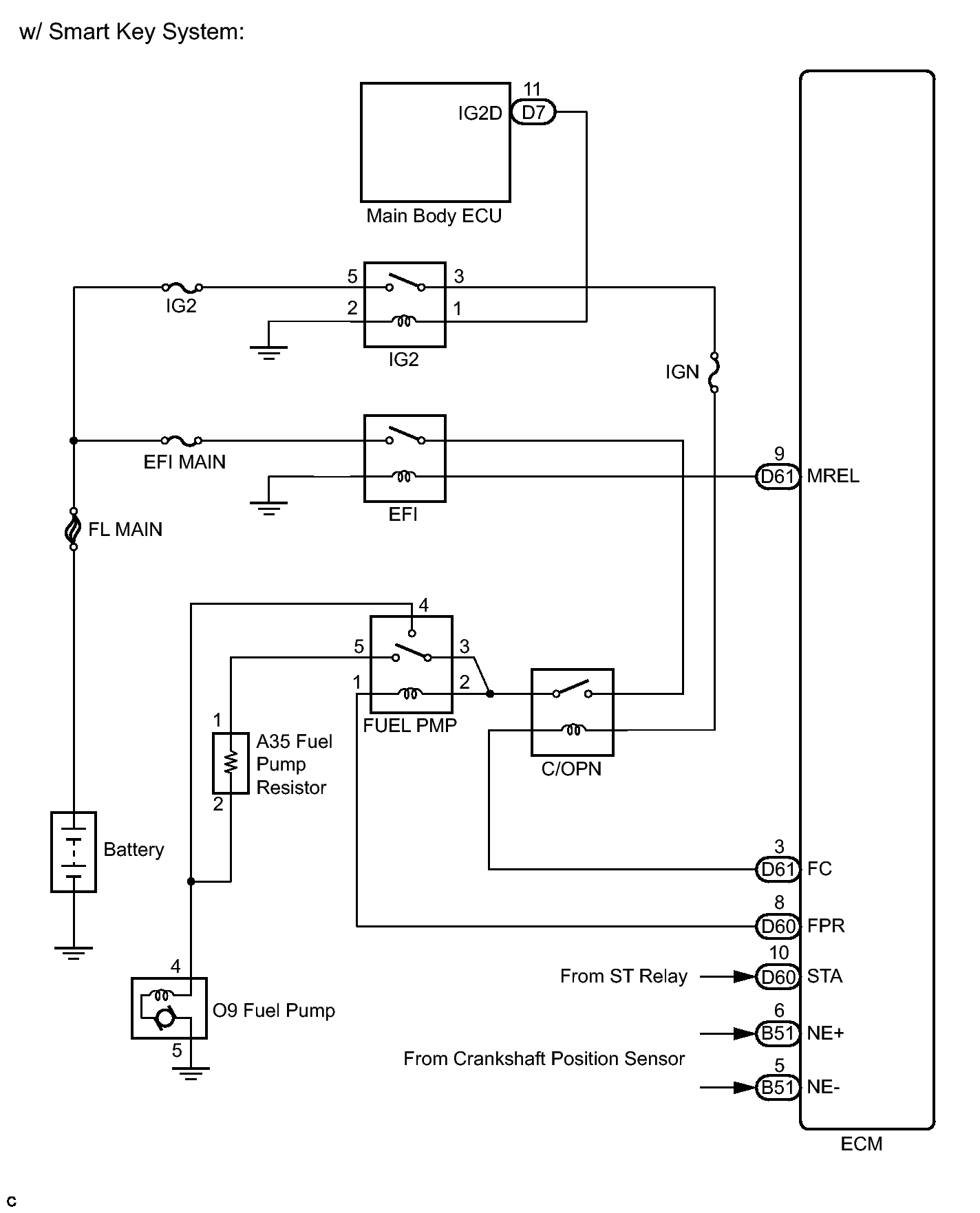

Fig 1: Identifying Crankshaft Position Sensor Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

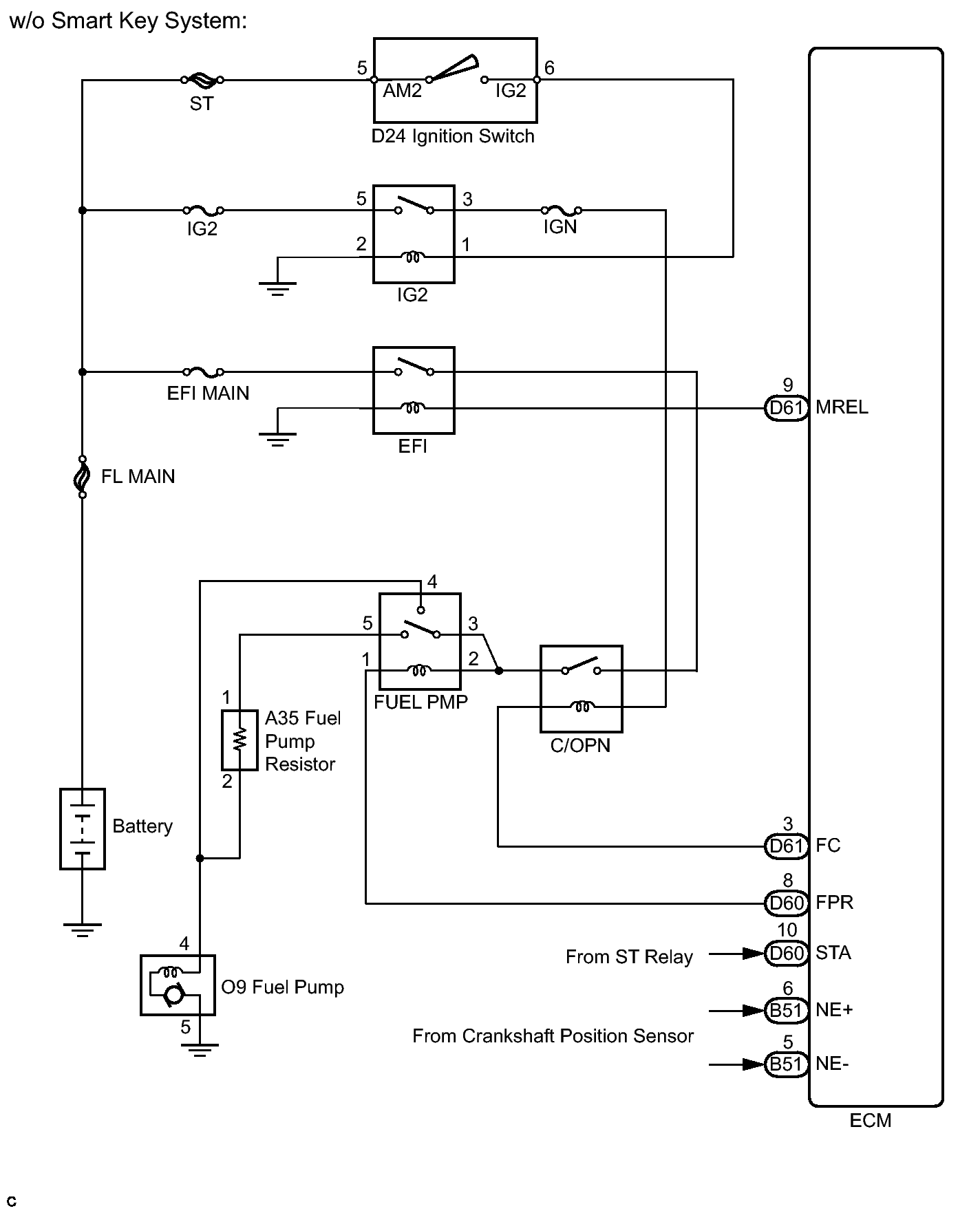

Fig 2: Identifying Crankshaft Position Sensor Wiring Diagram (2 Of 2)

This troubleshooting procedure is based on the premise that the engine is started. If the engine is not started, proceed to the problem symptoms table, refer to PROBLEM SYMPTOMS TABLE .
