DTC P0013: Camshaft Position "B" Actuator Circuit / Open (Bank 1); DTC P0023: Camshaft Position "B" Actuator Circuit / Open (Bank 2): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

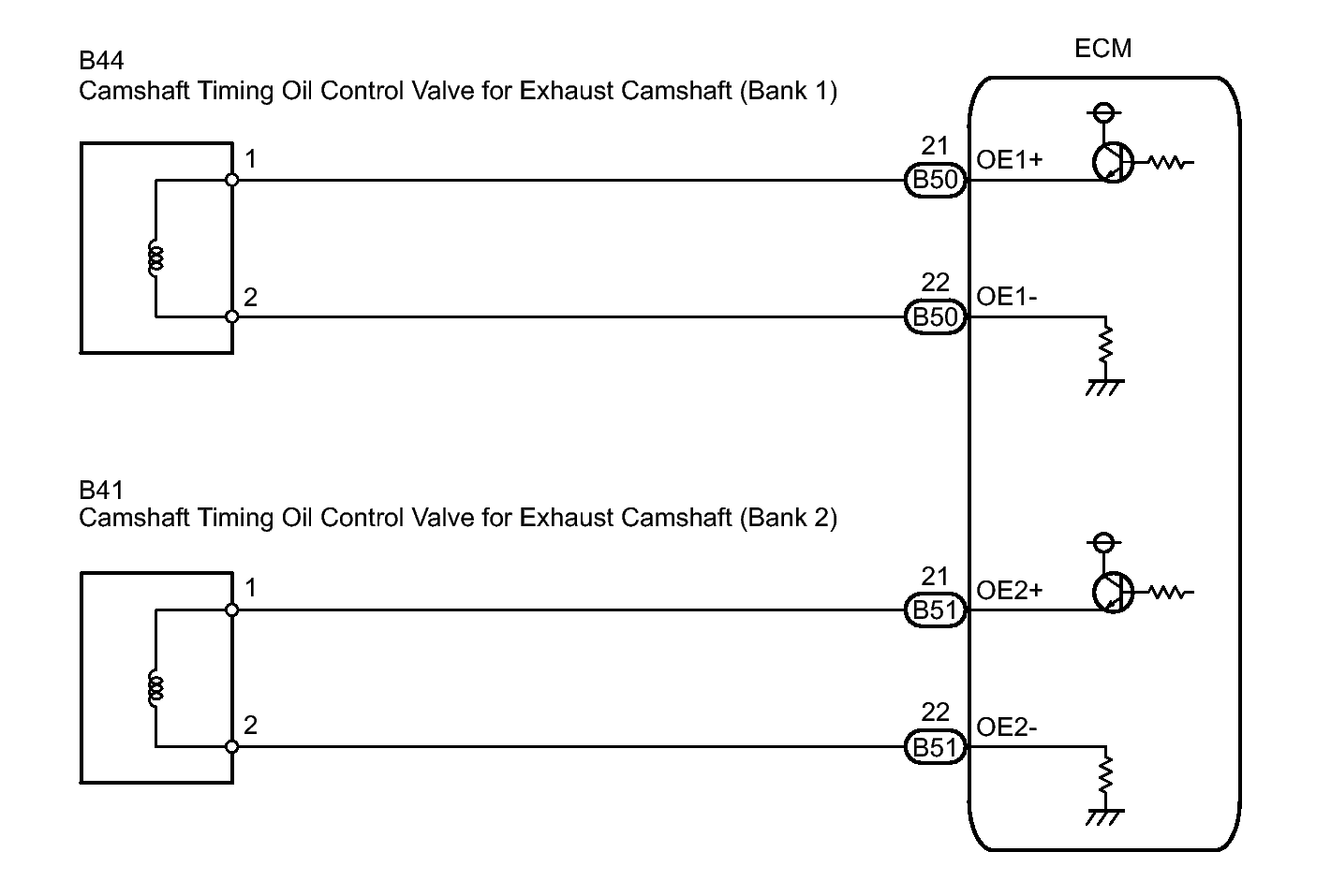

Fig 1: Identifying Camshaft Timing Oil Control Valve For Exhaust Camshaft Wiring Diagram
