DTC P0011: Camshaft Position "A" - Timing Over-Advanced or System Performance (Bank 1); DTC P0012: Camshaft Position "A" - Timing Over-Retarded (Bank 1); DTC P0021: Camshaft Position "A" - Timing Over-Advanced or System Performance (Bank 2); DTC P0022: Camshaft Position "A" - Timing Over-Retarded (Bank 2): Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch on (IG) and turn the tester on.
3. Select the following menu items: Powertrain / Engine and ECT / Trouble Code.
4. Read the DTCs.

   Result

   Display (DTC Output)	Proceed to
   P0011, P0012, P0021 or P0022	A
   P0011, P0012, P0021 or P0022 and other DTCs	B

   HINT:

   If any DTCs other than P0011, P0012, P0021 or P0022 are output, troubleshoot those DTCs first.

B → See step   9

A: Go to next step

1. Connect the Techstream to the DLC3.
2. Start the engine and turn the tester on.
3. Warm up the engine.
4. Select the following menu items: Powertrain / Engine and ECT / Active Test / Control the VVT Linear (Bank 1) or Control the VVT Linear (Bank 2).
5. Check the engine speed while operating the oil control valve using the tester.

   OK

   Tester Operation	Specified Condition
   0%	Normal engine idle speed
   100%	Engine idles roughly or stalls (soon after OCV switched from OFF to ON)

NG → See step   4

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch on (IG) and turn the tester on.
3. Clear the DTCs, refer to DTC CHECK / CLEAR .
4. Start the engine and warm it up.
5. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
6. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
7. Read the DTCs using the tester.

   OK

   No pending DTC output.

NG → See step   4

OK → SYSTEM IS OK

1. Remove the cylinder head covers RH and LH.

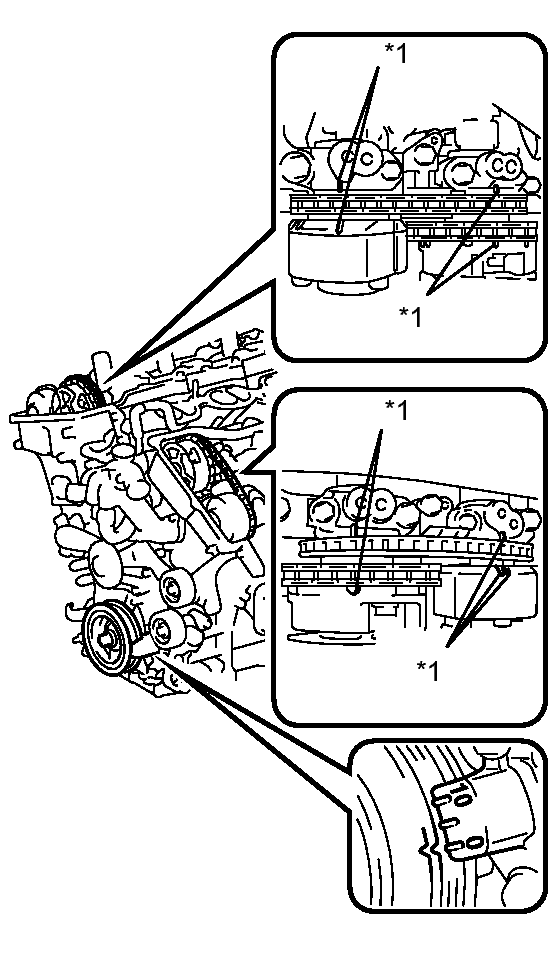

   Fig 1: Identifying Camshaft Pulley & Camshaft Bearing Cap Timing Marks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the crankshaft to align the timing marks of the crankshaft.
3. Align the notch of the crankshaft pulley to the "0" position.
4. Check if the timing marks of the camshaft pulley and camshaft bearing cap align.
5. Turn the crankshaft clockwise by 360° if the timing marks do not align. Check if they align once again.

   OK

   The timing marks of the camshaft pulley and the camshaft bearing cap align when the notch of the crankshaft pulley is in the "0" position.

   TEXT IN ILLUSTRATION



   *1	Timing Mark

NG → See step   10

OK: Go to next step

1. Remove the intake camshaft timing oil control valve.
2. Measure the resistance according to the value(s) in the table below.
   Fig 2: Measuring Resistance Between Terminals Of OCV

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	20°C (68°F)	6.9 to 7.9 Ω

3. Apply the positive battery voltage to terminal 1 and the negative battery voltage to terminal 2. Check the valve operation.

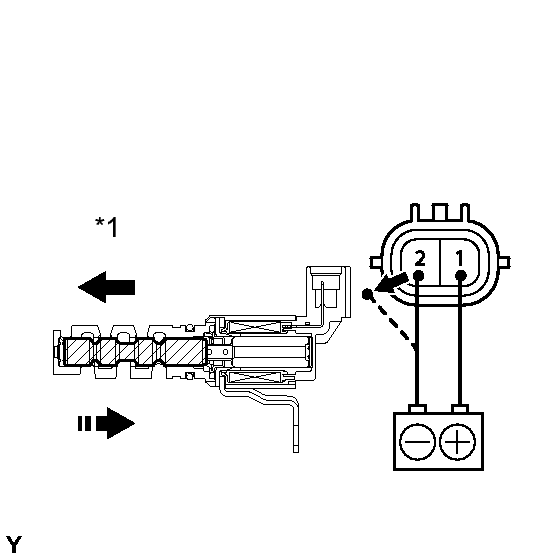

   Fig 3: Applying Positive Battery Voltage To Terminal 1 And The Negative Battery Voltage To Terminal 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Valve moves quickly.

   TEXT IN ILLUSTRATION



   *1	Valve Moves

4. Reinstall the camshaft timing oil control valve.

NG → See step   11

OK: Go to next step

1. Remove the oil pipe No. 1 or oil pipe assembly.

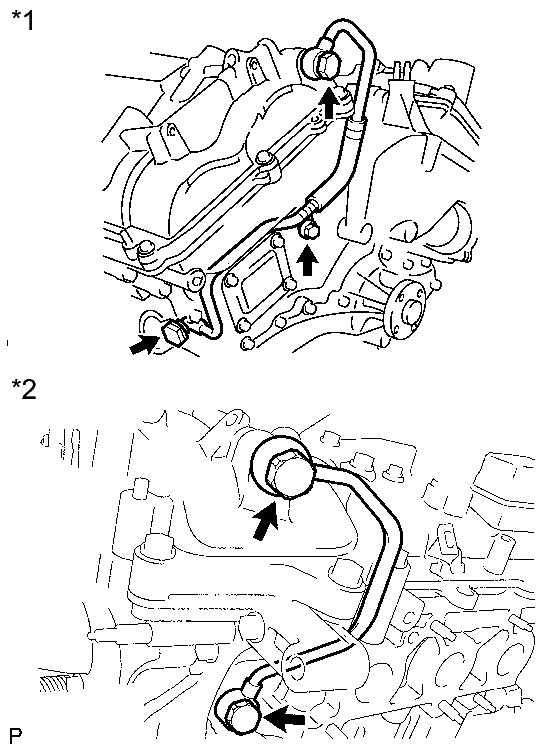

   Fig 4: Locating Oil Pipe No. 1 Assembly & Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the oil control valve filter.
3. Check that the filter and pipe are not clogged.

   OK

   The filter and pipe are not clogged.

   TEXT IN ILLUSTRATION



   *1	RH Bank
   *2	LH Bank

NG → REPLACE OIL CONTROL VALVE FILTER OR PIPE

OK: Go to next step

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch on (IG) and turn the tester on.
3. Clear the DTCs, refer to DTC CHECK / CLEAR .
4. Start the engine and warm it up.
5. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
6. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
7. Read the pending DTCs.

   OK

   No pending DTC output.

   HINT:

   DTC P0011, P0012, P0021 or P0022 is output when foreign objects in engine oil are caught in some parts of the system. These codes will stay output even if the system returns to normal after a short time. These foreign objects are then captured by the oil filter, thus eliminating the source of the problem.

NG → See step   12

OK → SYSTEM IS OK
