Section 69 (Engine Control System (2GR-FE) (Diagnostic Codes (P0010-P0340) & Circuit Tests))
>>
SFI System
>>
DTC P0010: Camshaft Position "A" Actuator Circuit (Bank 1); DTC P0020: Camshaft Position "A" Actuator Circuit (Bank 2)
>>
Wiring Diagram
DTC P0010: Camshaft Position "A" Actuator Circuit (Bank 1); DTC P0020: Camshaft Position "A" Actuator Circuit (Bank 2): Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

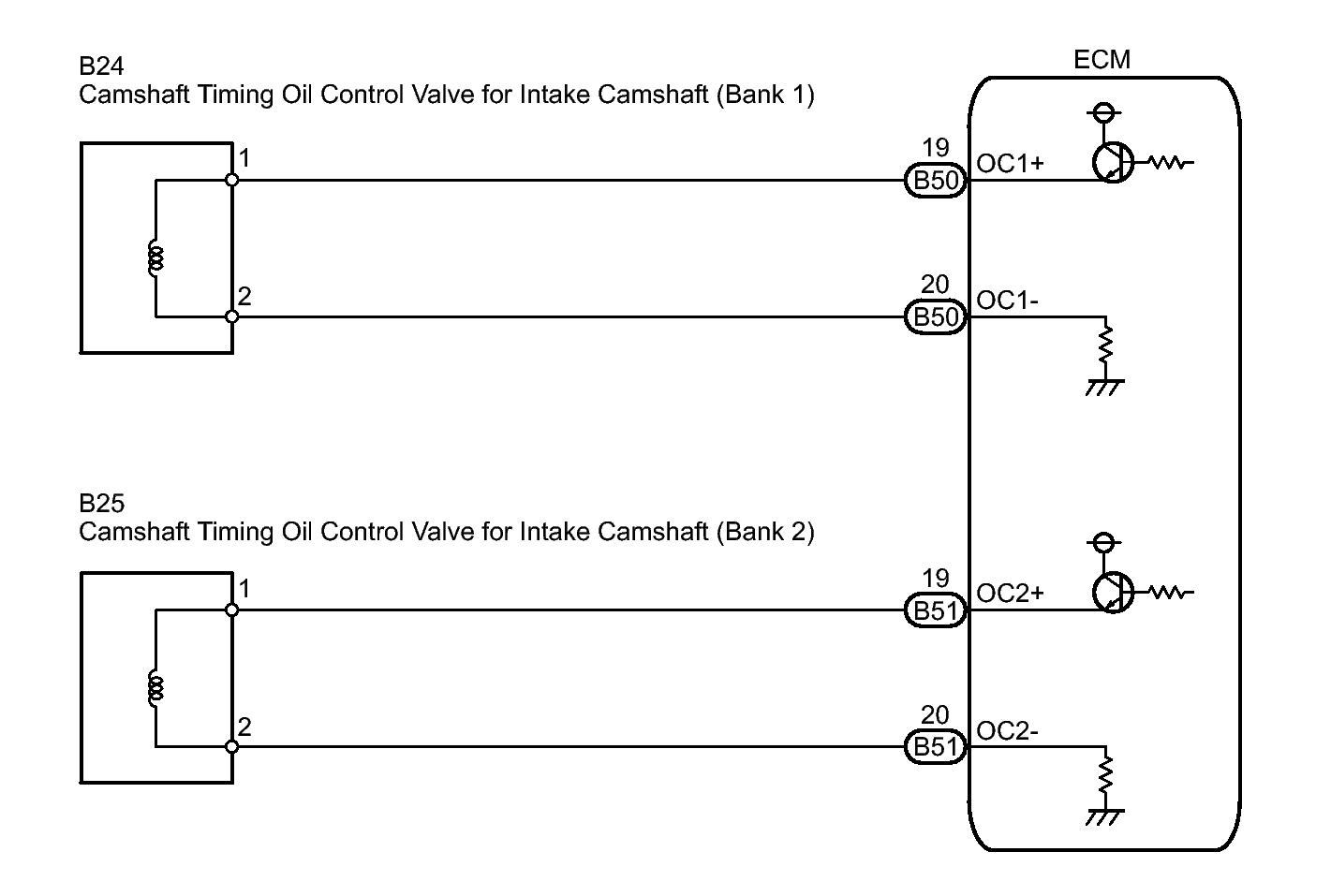

Fig 1: Identifying Camshaft Timing Oil Control Valve For Intake Camshaft Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
