Crankshaft Position Sensor: Inspection: Inspection
WARNING: This page is about a different variant/trim than selected.
- INSPECT CRANKSHAFT POSITION SENSOR

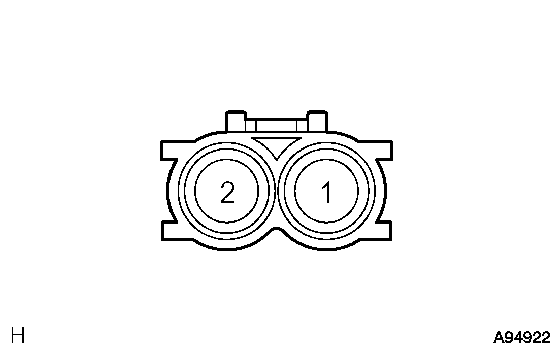

- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
Temperature Specified Condition Cold 1630 to 2740 Ω Hot 2065 to 3225 Ω NOTE:- "Cold" and "Hot" mean the temperature of the coils themselves.
- "Cold" is from -10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
If the resistance is not as specified, replace the crankshaft position sensor.
- Measure the resistance according to the value(s) in the table below.
