Section 67 (Engine Control System (2GR-FE) (Service Information))
>>
Camshaft Oil Control Valve
>>
Components
>>
Illustration
Camshaft Oil Control Valve: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

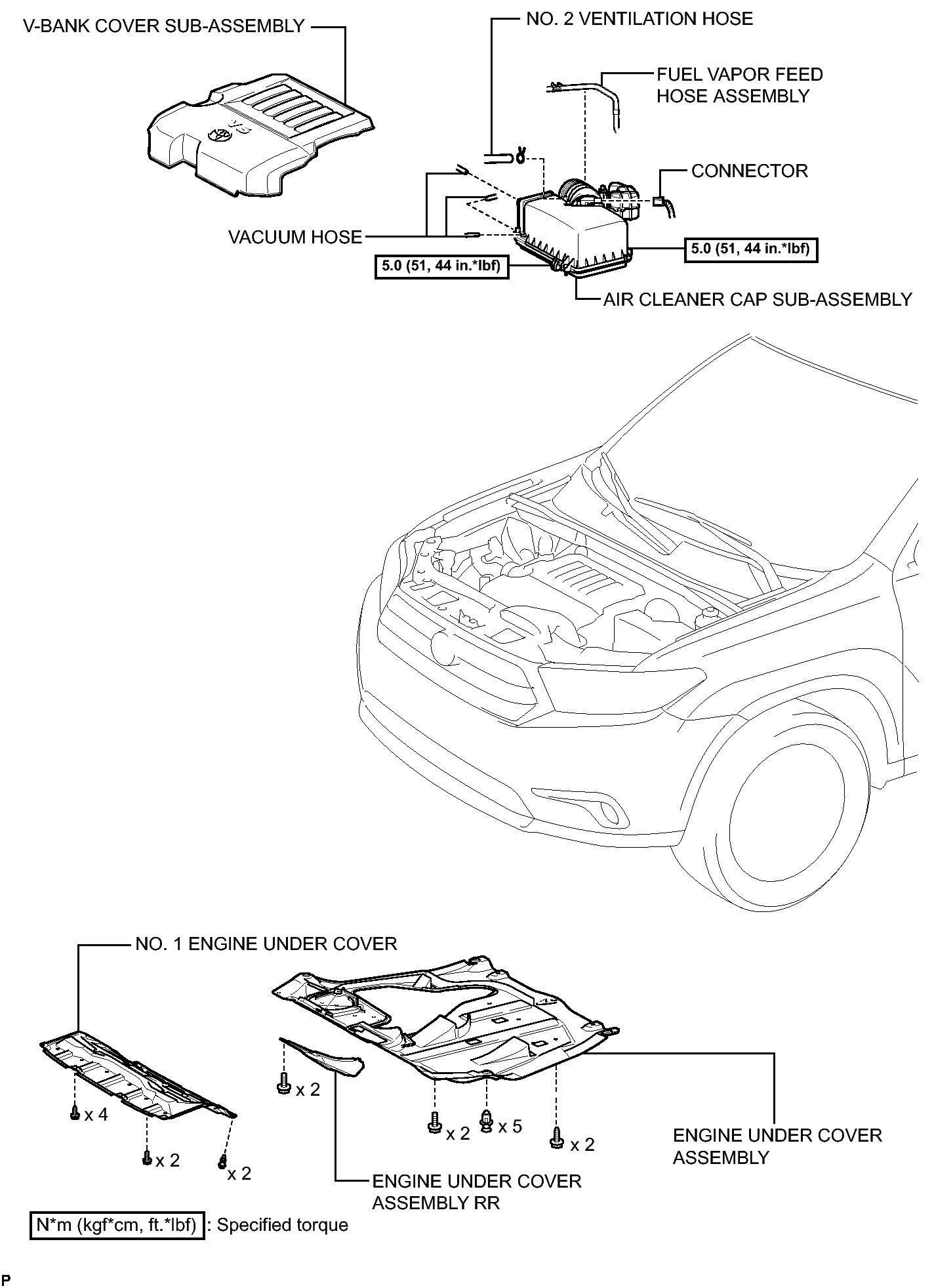

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

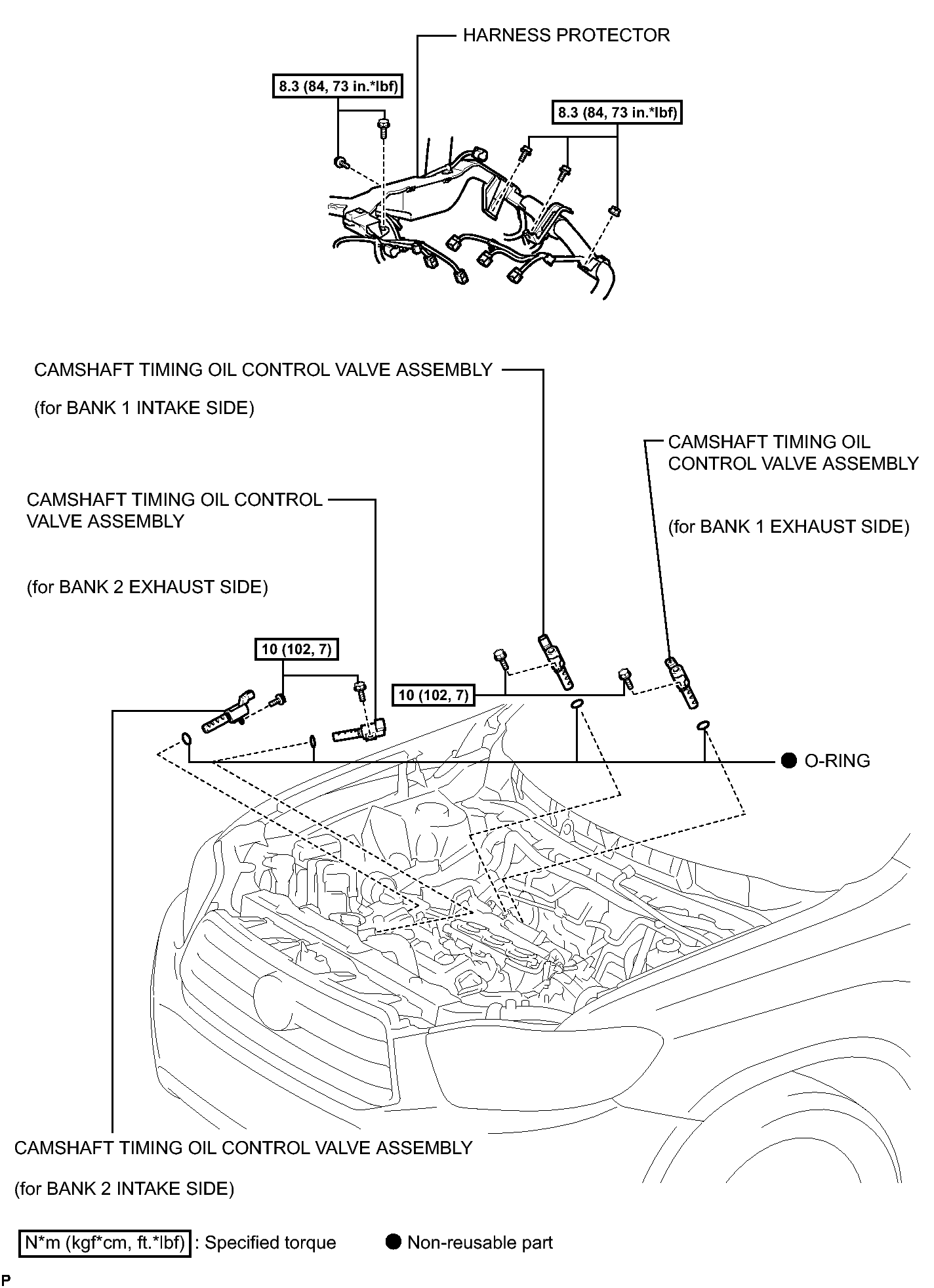

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (2 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
