INSTALL AIR FUEL RATIO SENSOR NO. 2 (for Bank 1 Sensor 1)
1. Using SST, install the air fuel ratio sensor to the exhaust manifold sub-assembly RH.

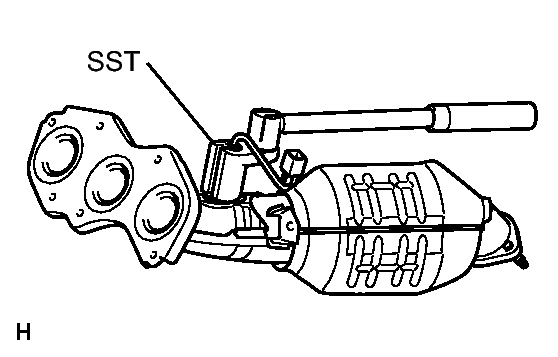

  Fig 1: Installing Air Fuel Ratio Sensor From Exhaust Manifold Sub-Assembly RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

  for use with SST

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

  for use without SST

  HINT:
  - Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
  - Make sure that SST and the wrench are connected in a straight line.
INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH . Refer to INSTALLATION - Step 2
INSTALL MANIFOLD STAY . Refer to INSTALLATION - Step 3
INSTALL FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY . Refer to INSTALLATION - Step 4
INSTALL CENTER EXHAUST PIPE ASSEMBLY . Refer to INSTALLATION - Step 5
INSTALL TAIL EXHAUST PIPE ASSEMBLY . Refer to INSTALLATION - Step 7
TEMPORARILY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 4WD) . Refer to INSTALLATION - Step 1
FULLY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 4WD) . Refer to INSTALLATION - Step 2
INSTALL AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
1. Using SST, install the air fuel ratio sensor to the exhaust manifold sub-assembly LH.

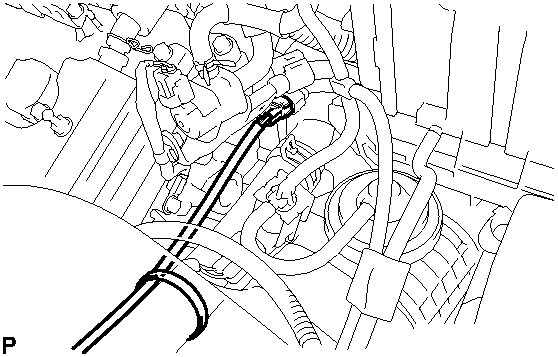

  Fig 2: Installing Sensor From Exhaust Manifold Sub-Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

  for use with SST

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

  for use without SST

  HINT:
  - Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
  - Make sure that SST and the wrench are connected in a straight line.
2. Connect the air fuel ratio sensor connector and install the clamp.

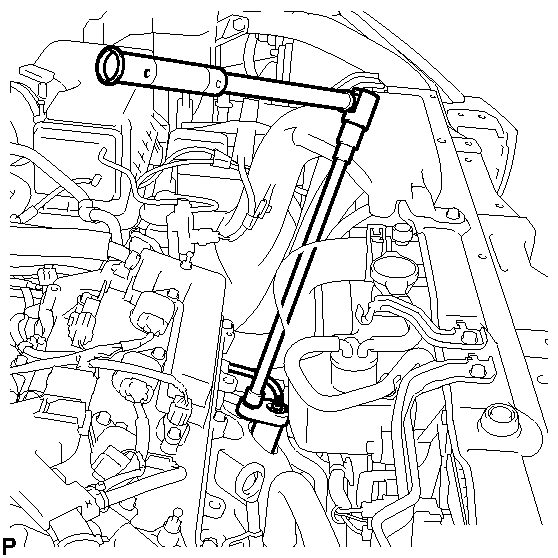

  Fig 3: Identifying Air Fuel Ratio Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FOR EXHAUST GAS LEAK . Refer to INSTALLATION - Step 8
INSPECT AND ADJUST TRANSFER OIL (for 4WD)
HINT:

Refer to ON-VEHICLE INSPECTION
INSTALL FRONT FLOOR COVER LH See step 11
INSTALL NO. 2 ENGINE UNDER COVER . Refer to INSTALLATION - Step 99
INSTALL NO. 1 ENGINE UNDER COVER . Refer to INSTALLATION - Step 100
INSTALL ENGINE UNDER COVER ASSEMBLY . Refer to INSTALLATION - Step 101
