Section 67 (Engine Control System (2GR-FE) (Service Information))
>>
Air Fuel Ratio Sensor
>>
Components
>>
Illustration
Air Fuel Ratio Sensor: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

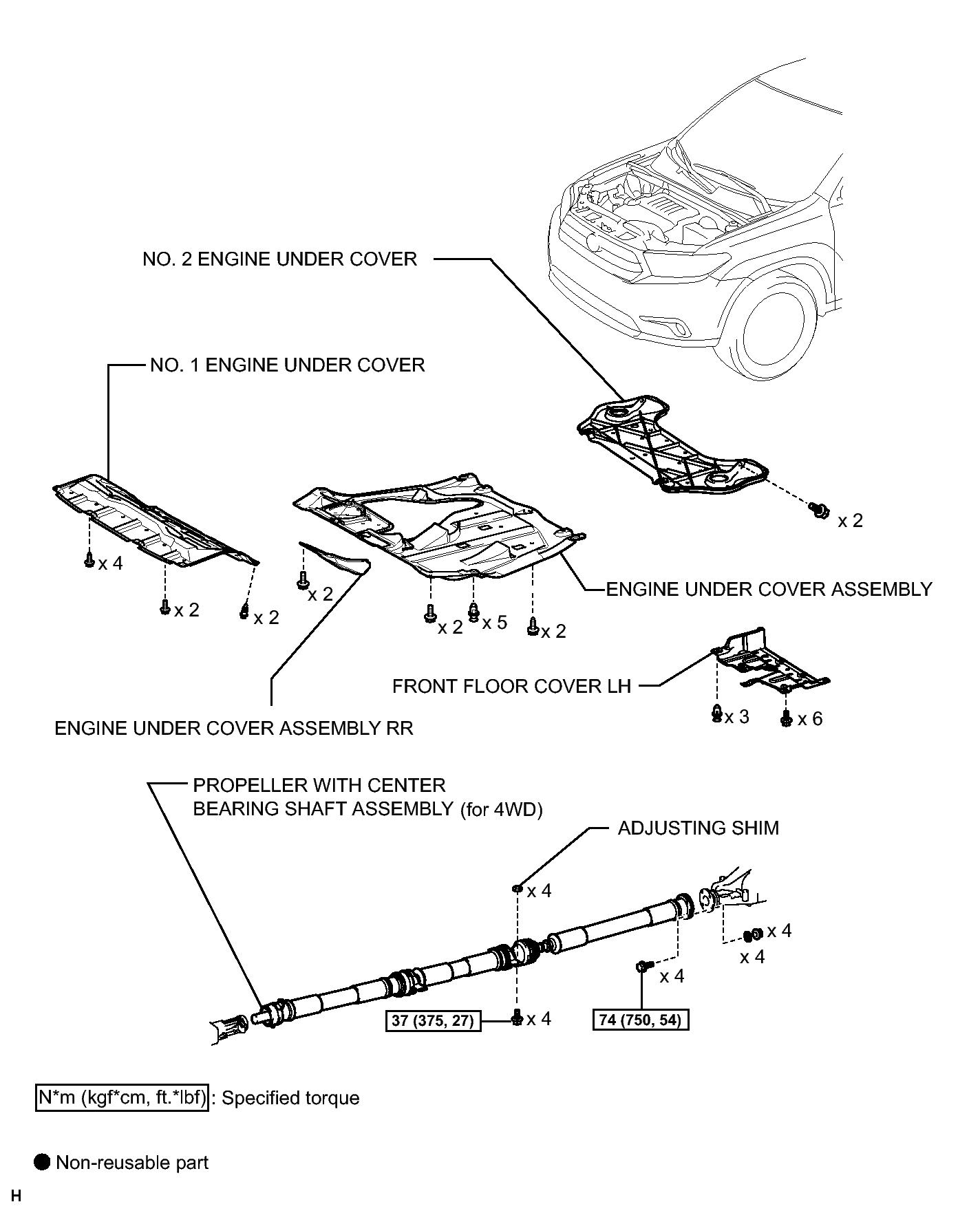

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

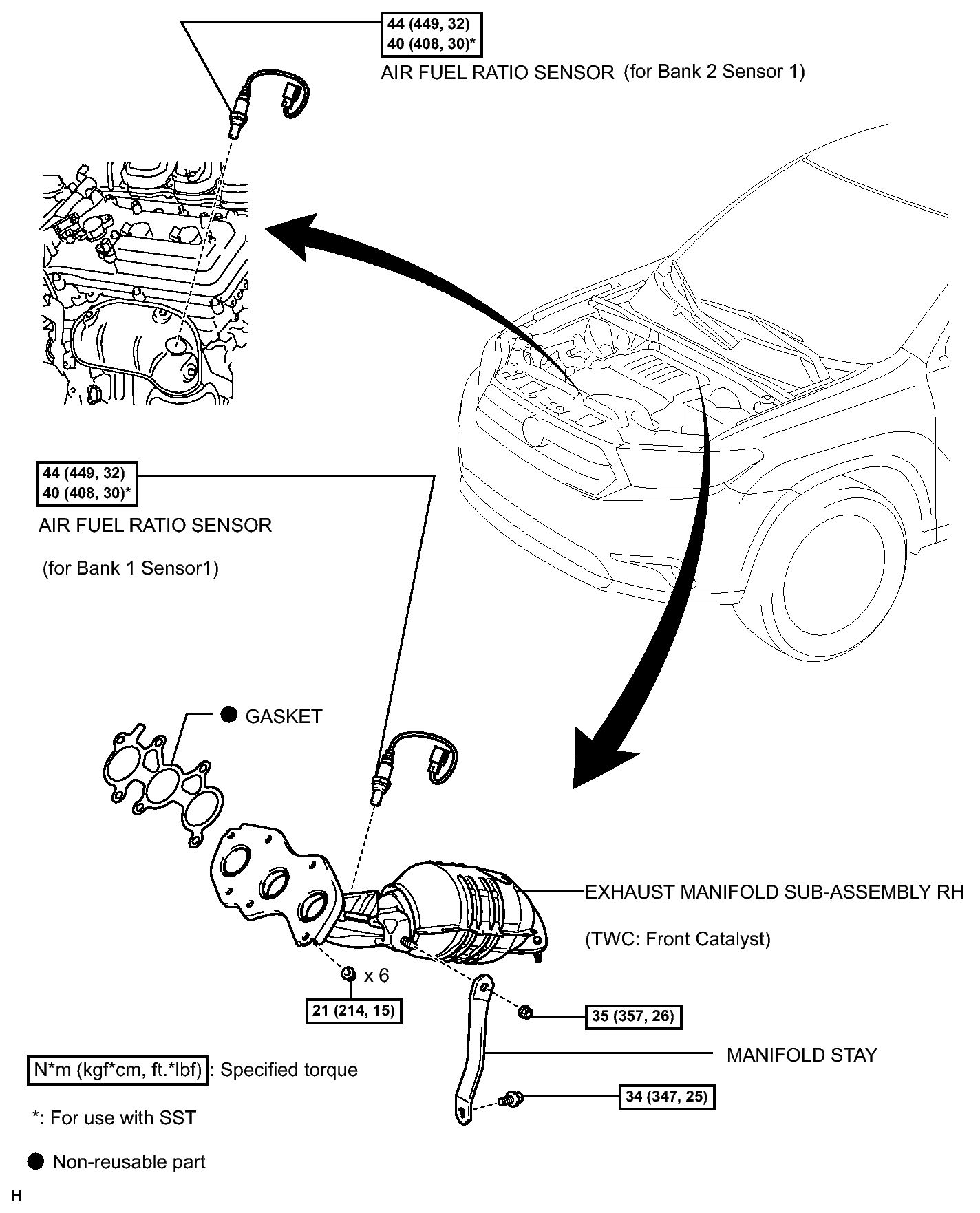

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

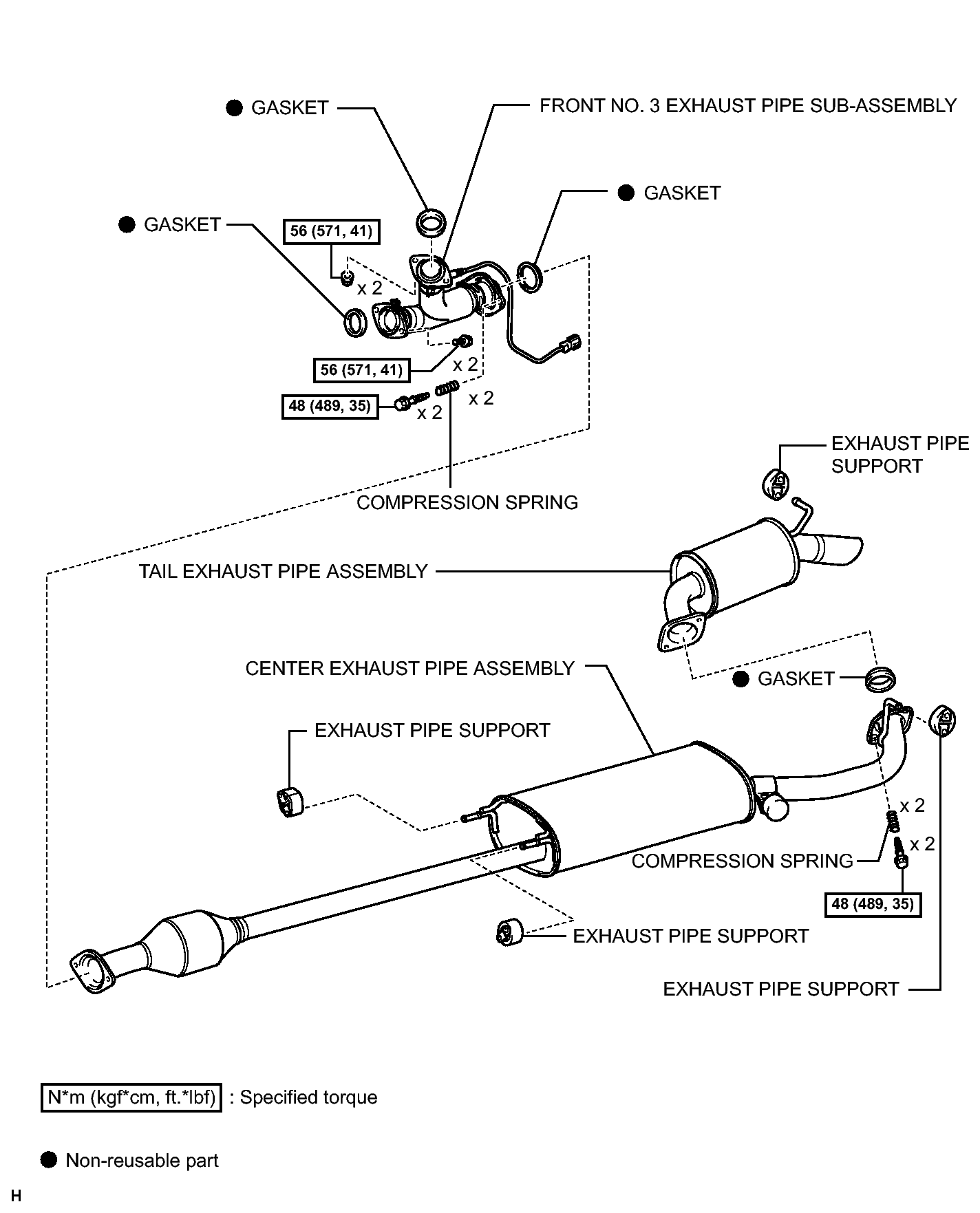

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
