Active Control Engine Mount: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Active Control Engine Mount Replacement Components (1 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

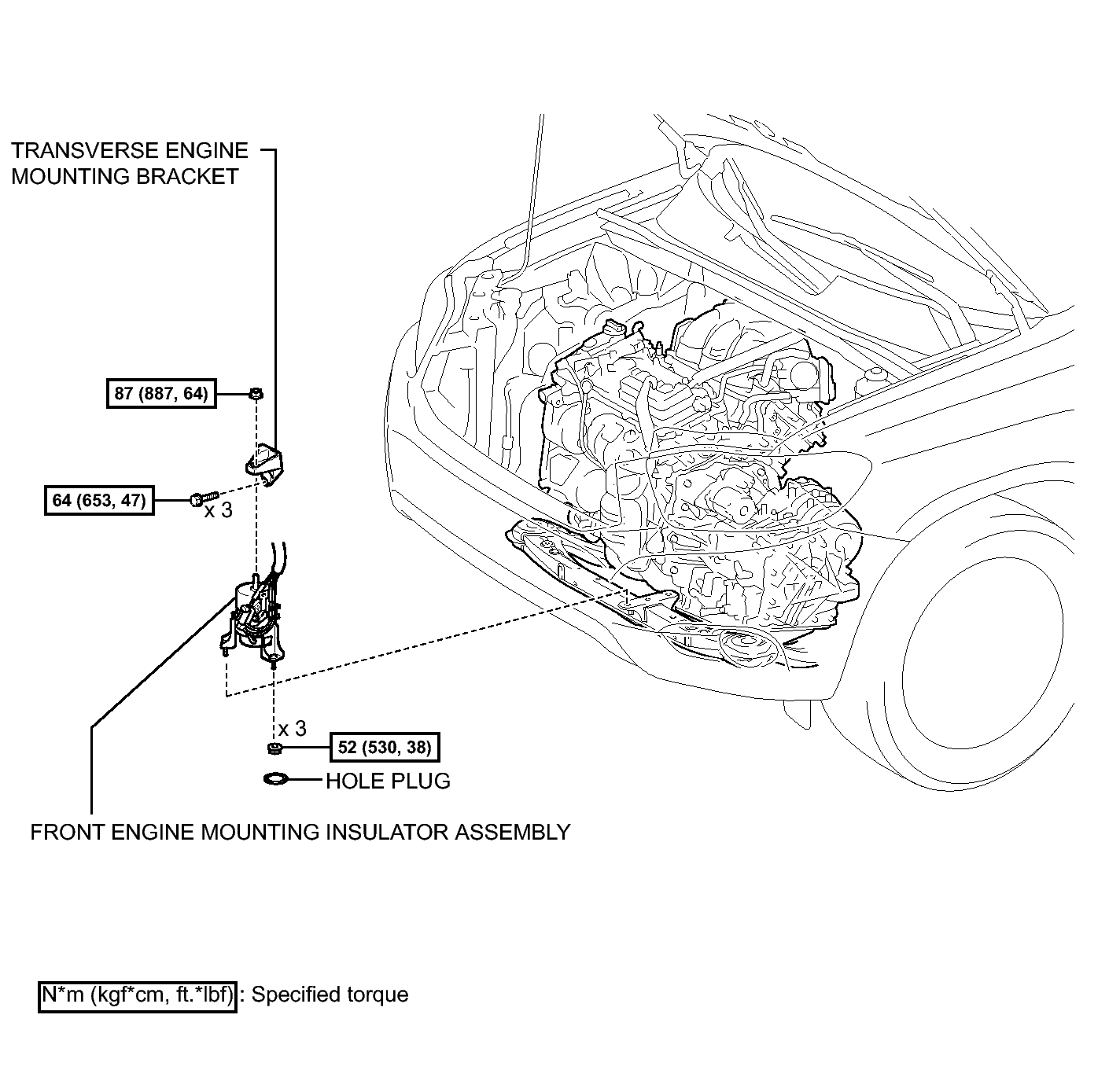

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications (4 Of 5)

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications (5 Of 5)
