Section 65 (Starting System (2GR-FE) (Service Information)): Starter: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

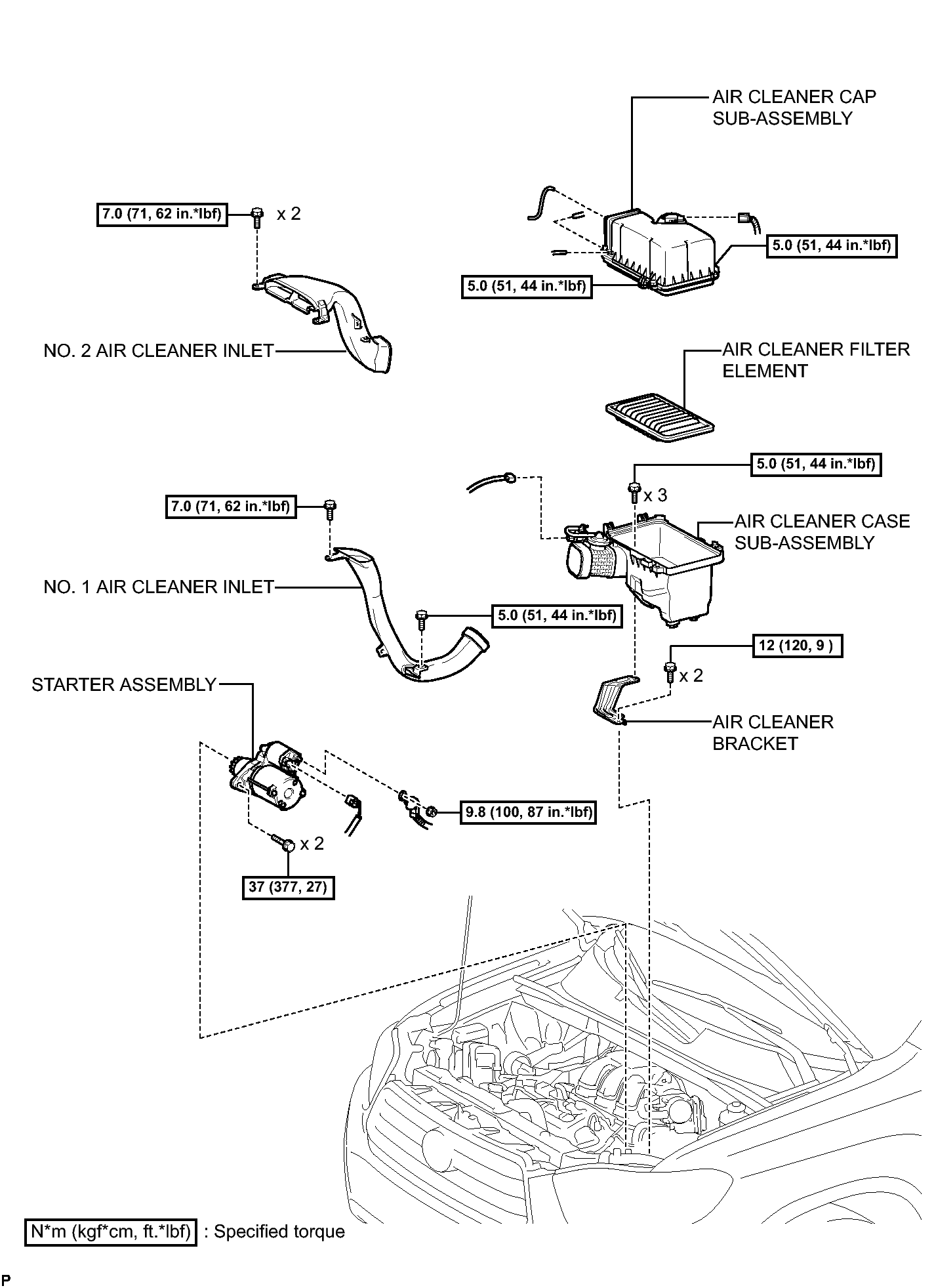

Fig 1: Identifying Starter Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

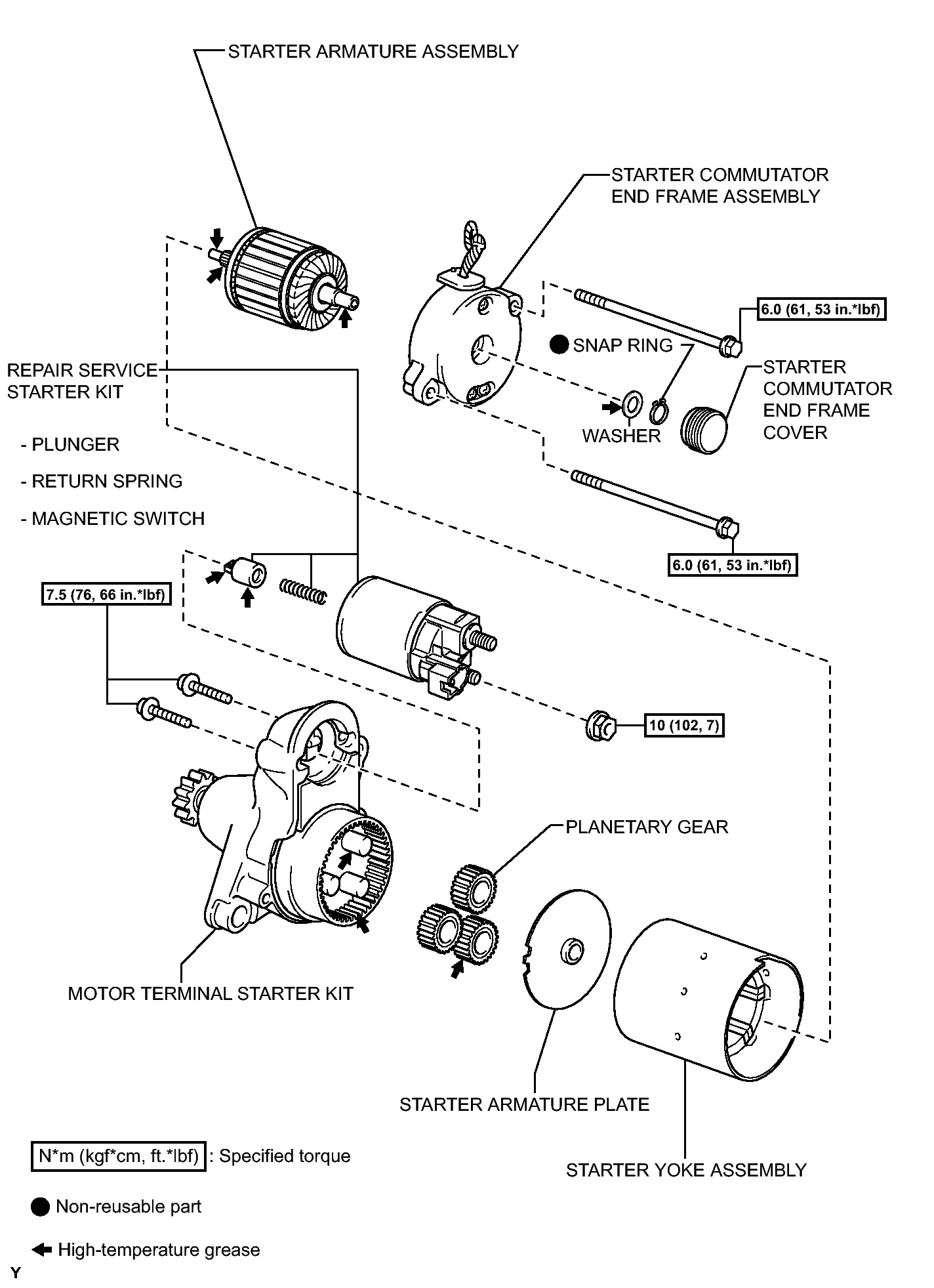

Fig 1: Identifying Starter Replacement Components With Torque Specifications (2 Of 3)

Fig 1: Identifying Starter Replacement Components With Torque Specifications (3 Of 3)
