MIL Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

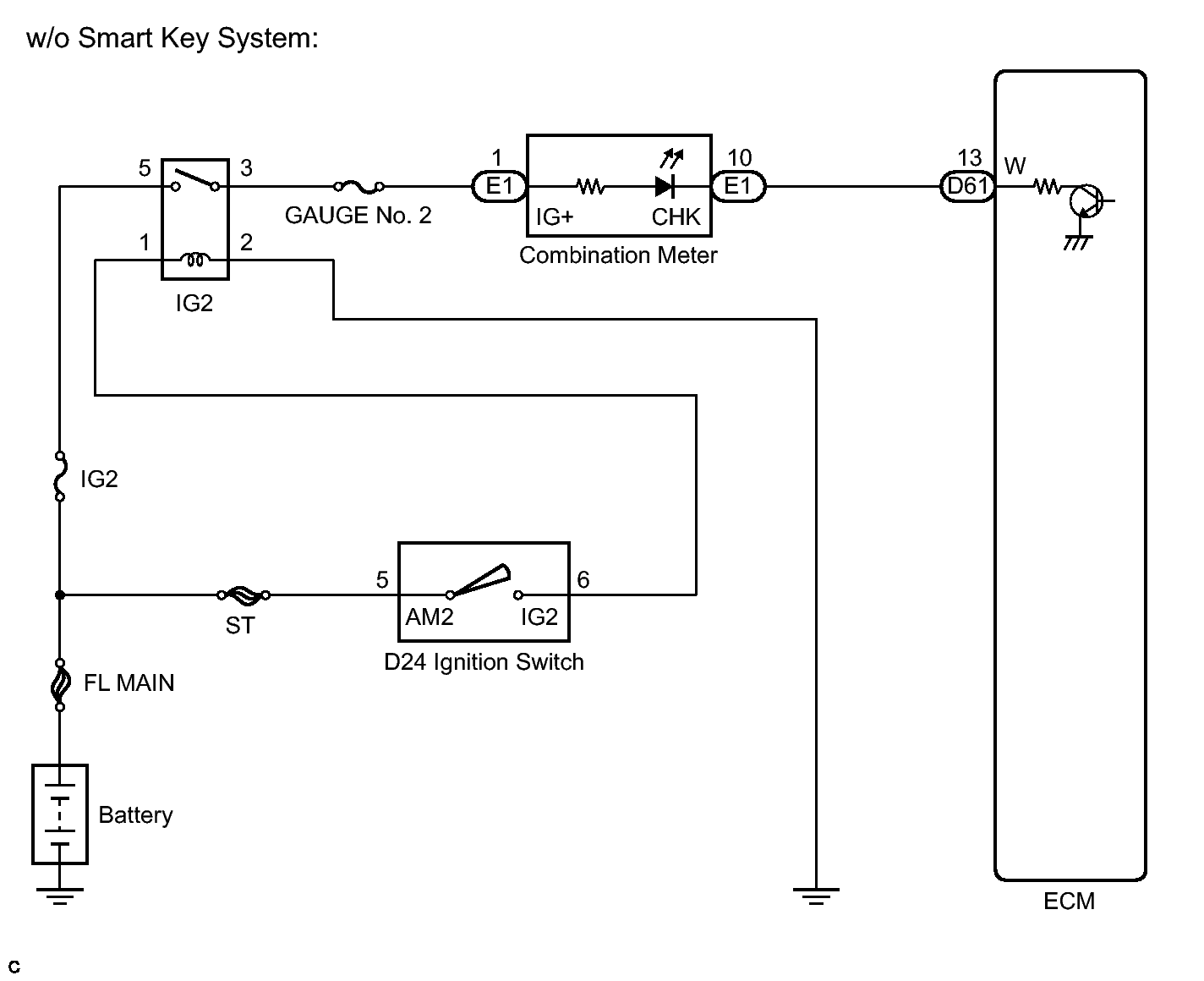

Fig 1: Identifying MIL Circuit Wiring Diagram (1 Of 2)
GTY298657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

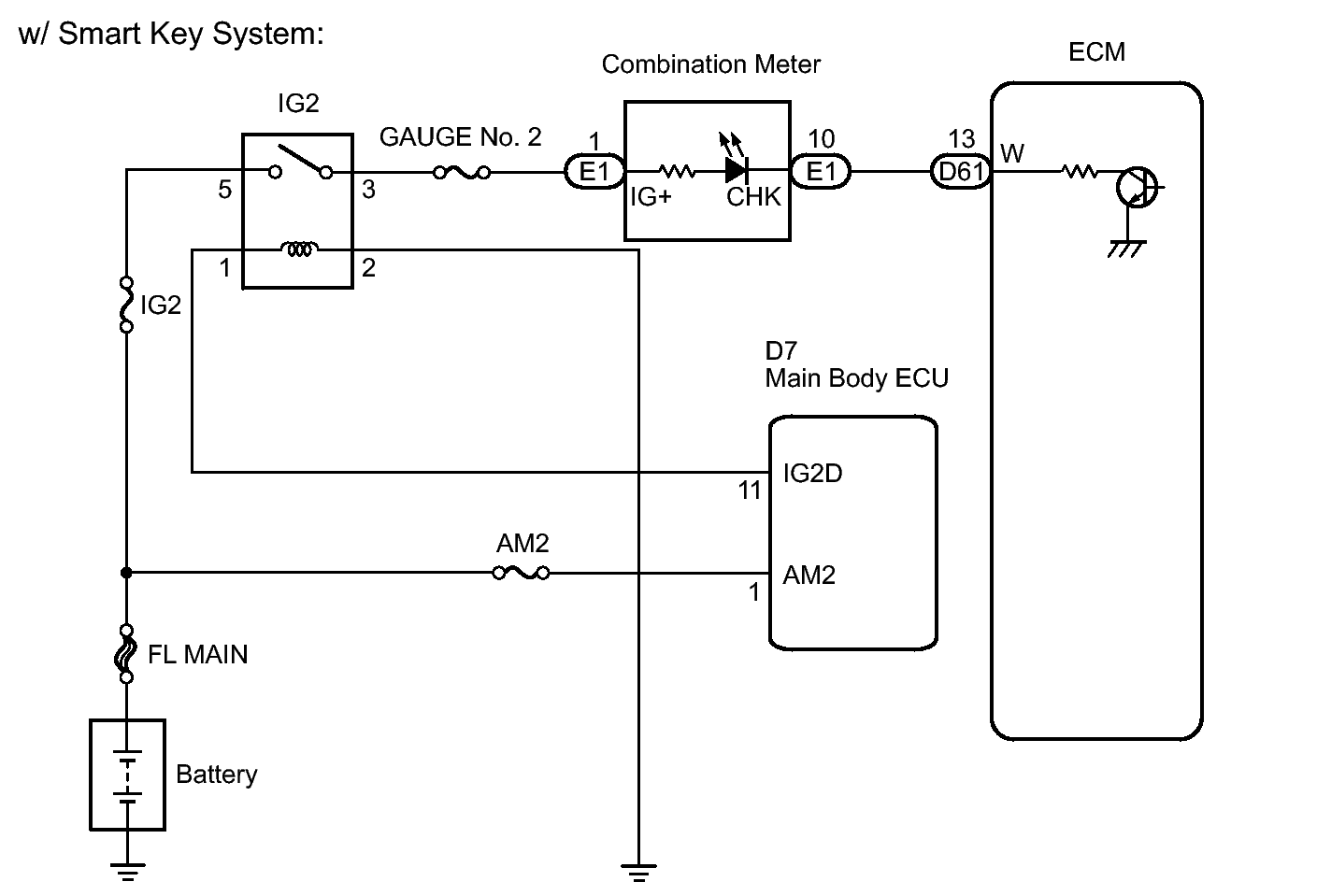

Fig 2: Identifying MIL Circuit Wiring Diagram (2 Of 2)
GTY299299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
