Fuel Injector Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

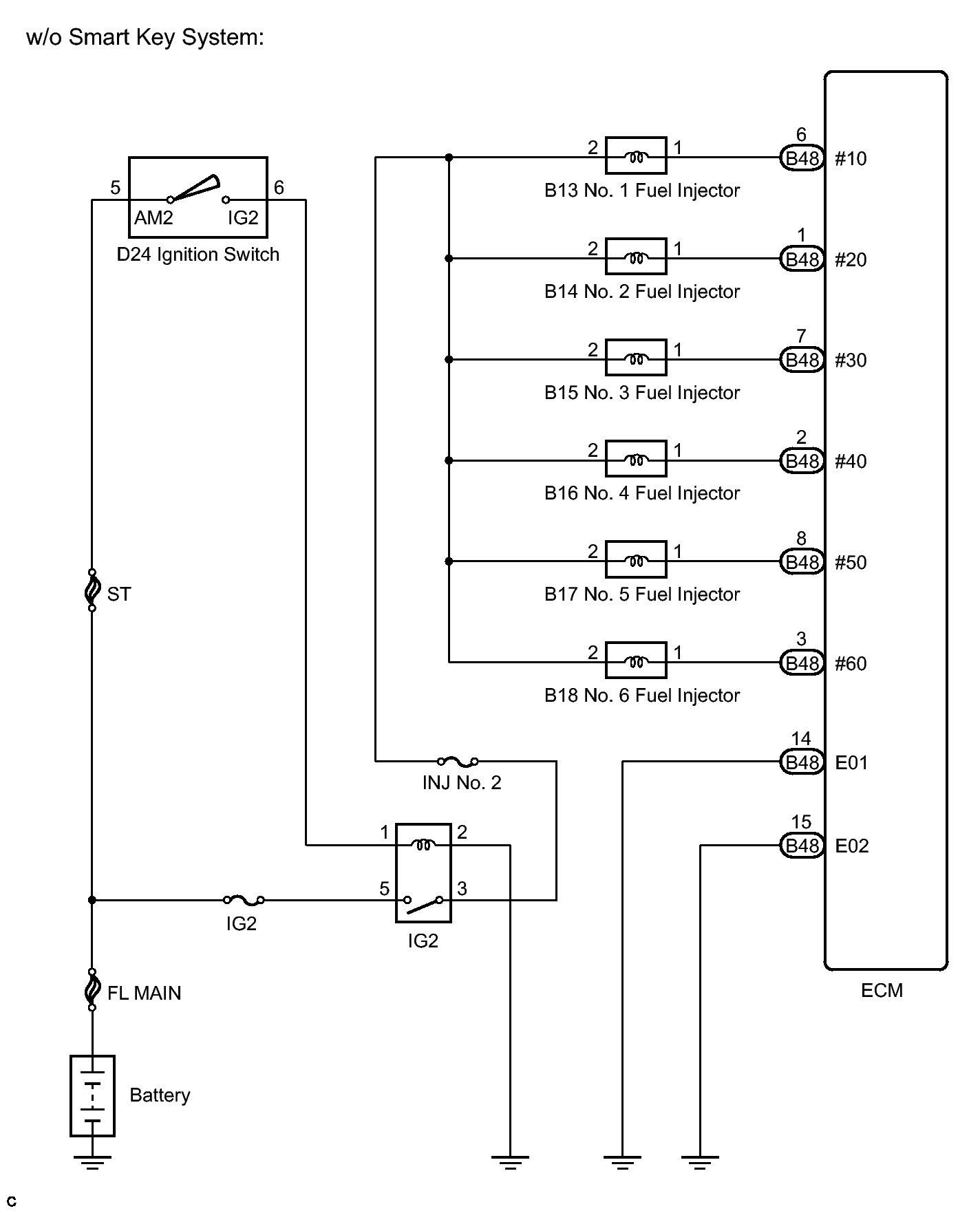

Fig 1: Identifying Fuel Injector Wiring Diagram (1 Of 2)
GTY298519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

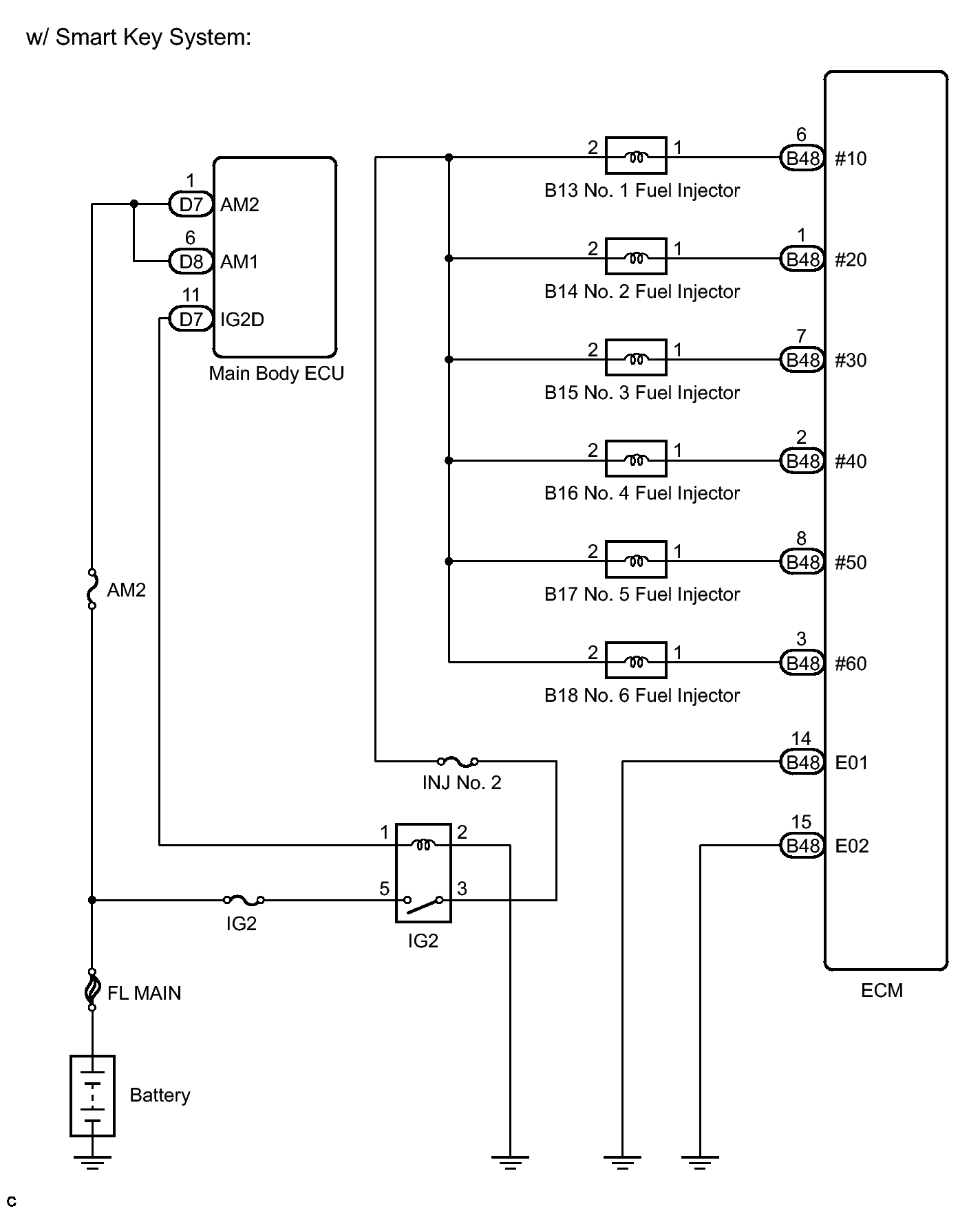

Fig 2: Identifying Fuel Injector Wiring Diagram (2 Of 2)
GTY305516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
