Monitor Result
WARNING: This page is about a different variant/trim than selected.
- Refer to Checking Monitor Status for detailed information, refer to CHECKING MONITOR STATUS .
- The test value and test limit information are described as shown in the following table. This information is included in Monitor Result of the emissions-related DTC sections:
- MID (Monitor Identification Data) is assigned to each emissions-related component.
- TID (Test Identification Data) is assigned to each test value.
- Scaling is used to calculate the test value indicated on generic OBD II scan tools.THERMOSTAT
MID TID Scaling Description of Test Value Minimum Test Limit Maximum Test Limit $3D $C9 Multiply by 0.01 [kPa] Test value for small leak (P0456)
Refer to pressure D*Minimum test limit for small leak Maximum test limit for small leak $3D $CA Multiply by 0.01 [kPa] Test value for gross leak (P0455)
Refer to pressure E*Minimum test limit for gross leak Maximum test limit for gross leak $3D $CB Multiply by 0.01 [kPa] Test value for vacuum pump stuck OFF (P2401)
Refer to pressure A*Minimum test limit for vacuum pump stuck OFF Maximum test limit for vacuum pump stuck OFF $3D $CD Multiply by 0.01 [kPa] Test value for vacuum pump stuck ON (P2402)
Refer to pressure A*Minimum test limit for vacuum pump stuck ON Maximum test limit for vacuum pump stuck ON $3D $CE Multiply by 0.01 [kPa] Test value for vent valve stuck OFF (vent) (P2420)
Refer to pressure C*Minimum test limit for vent valve stuck ON Maximum test limit for vent valve stuck ON $3D $CF Multiply by 0.01 [kPa] Test value for vent valve stuck ON (P2419)
Refer to pressure A*Minimum test limit for vent valve stuck OFF Maximum test limit for vent valve stuck OFF $3D $D0 Multiply by 0.01 [kPa] Test value for 0.02 inch orifice low flow (P043E)
Refer to pressure B*Minimum test limit for 0.02 inch orifice low flow Maximum test limit for 0.02 inch orifice low flow $3D $D1 Multiply by 0.01 [kPa] Test value for 0.02 inch orifice high flow (P043F)
Refer to pressure A*Minimum test limit for 0.02 inch orifice high flow Maximum test limit for 0.02 inch orifice high flow $3D $D4 Multiply by 0.01 [kPa] Test value for purge VSV stuck closed (P0441)
Refer to pressure F*Minimum test limit for purge VSV stuck closed Maximum test limit for purge VSV stuck closed $3D $D5 Multiply by 0.01 [kPa] Test value for purge VSV stuck open (P0441)
Refer to pressure E*Minimum test limit for purge VSV stuck open Maximum test limit for purge VSV stuck open $3D $D7 Multiply by 0.01 [kPa] Test value for purge flow (P0441)

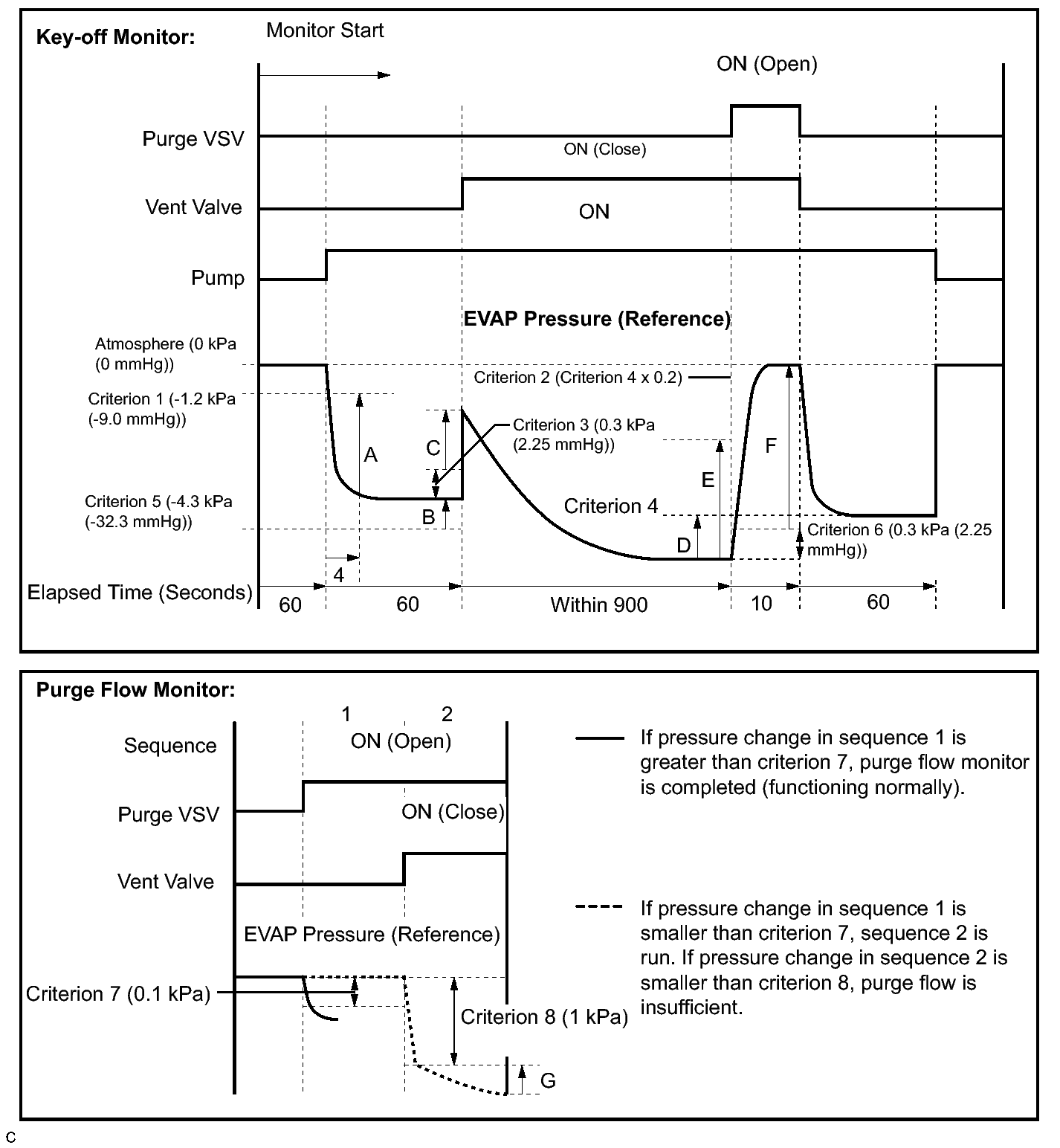

Refer to pressure G*Minimum test limit for purge flow Maximum test limit for purge flow * Pressures A to G are indicated as shown in the diagram below.
