Section 63 (Engine Control System (2GR-FE) (Diagnostic Codes (P1604 - P2610) & Circuit Tests)))
>>
SFI System
>>
ECM Power Source Circuit
>>
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

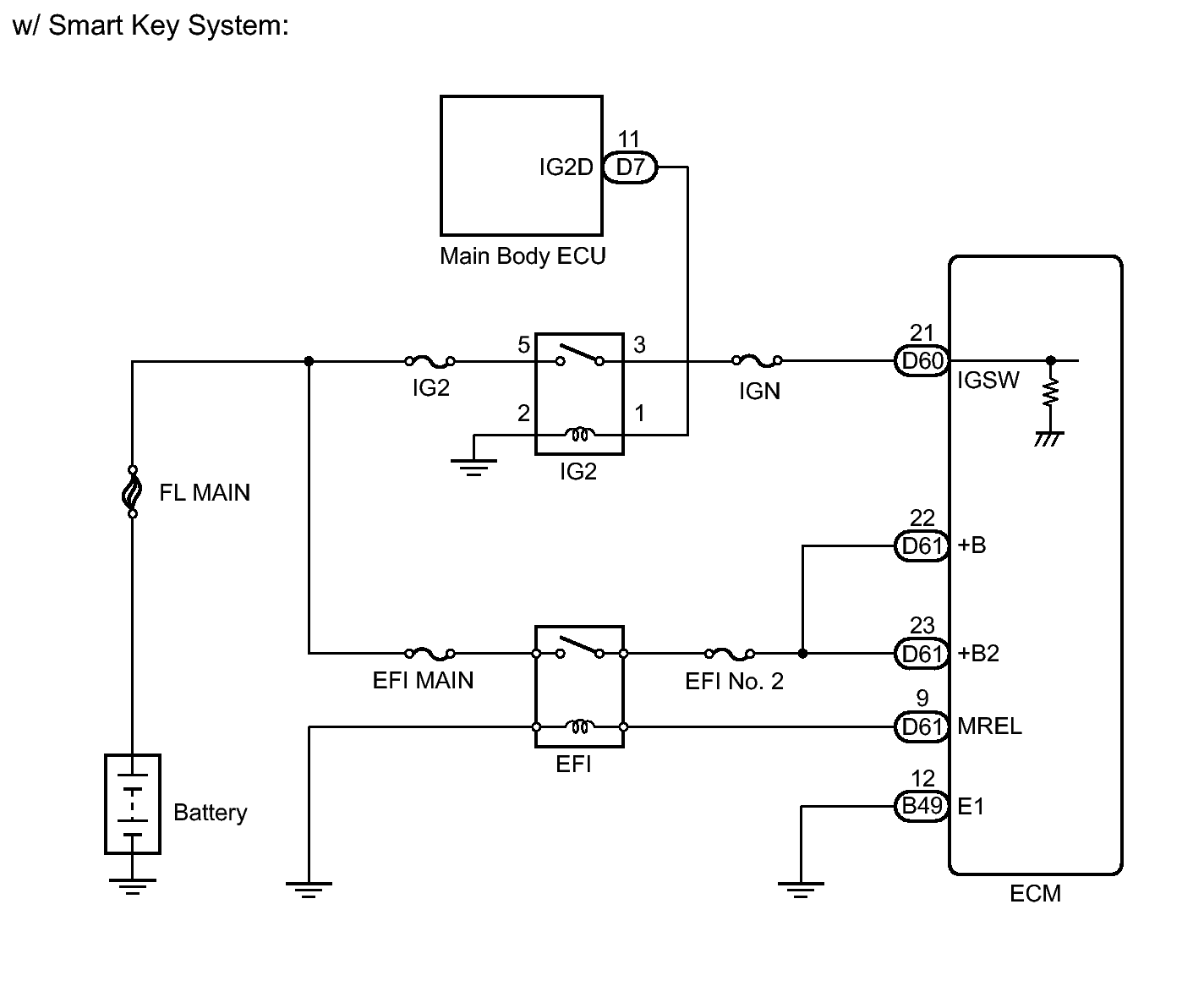

Fig 1: Identifying ECM Power Source Circuit Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

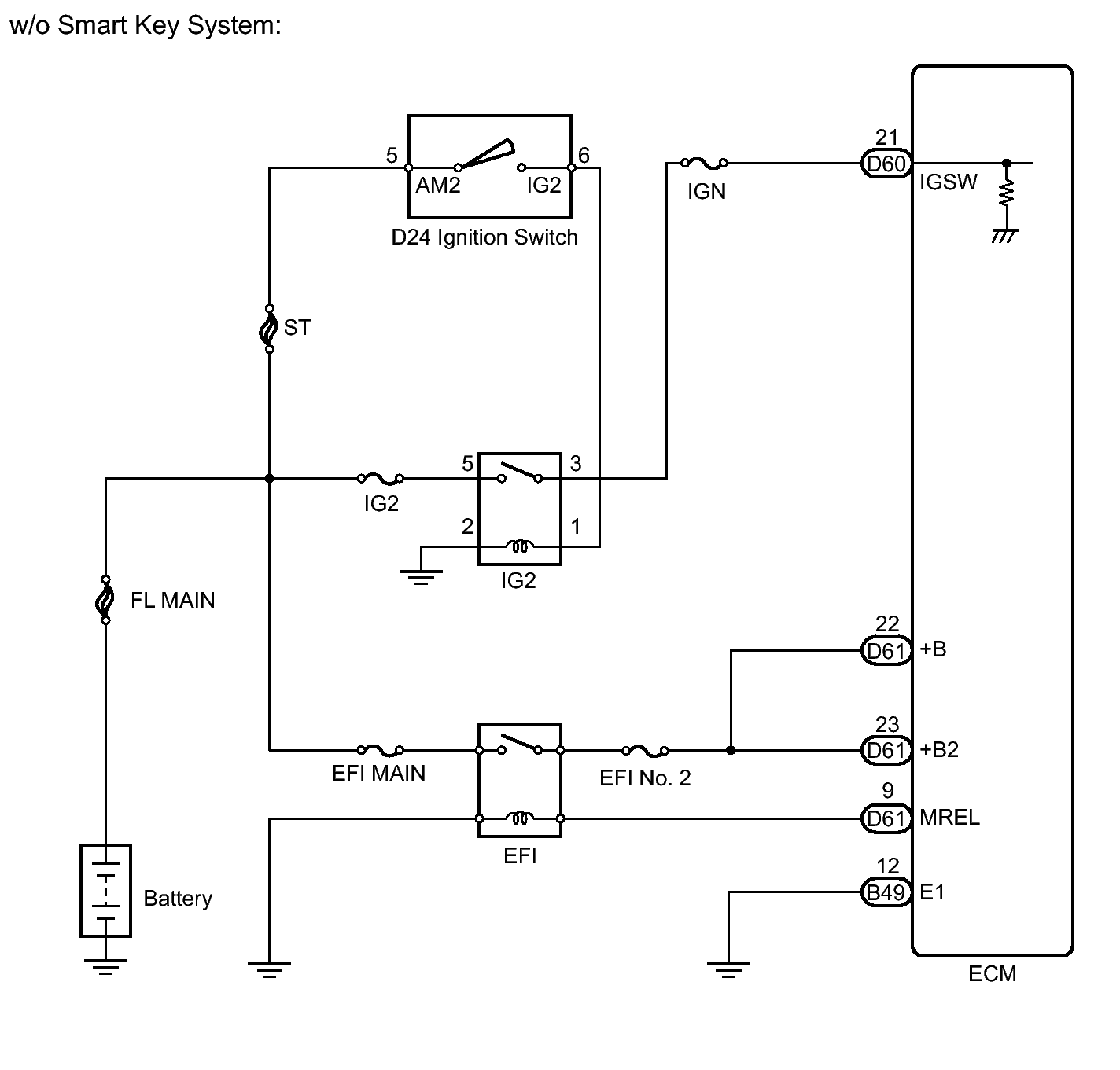

Fig 2: Identifying ECM Power Source Circuit Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
