DTC P2118: Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

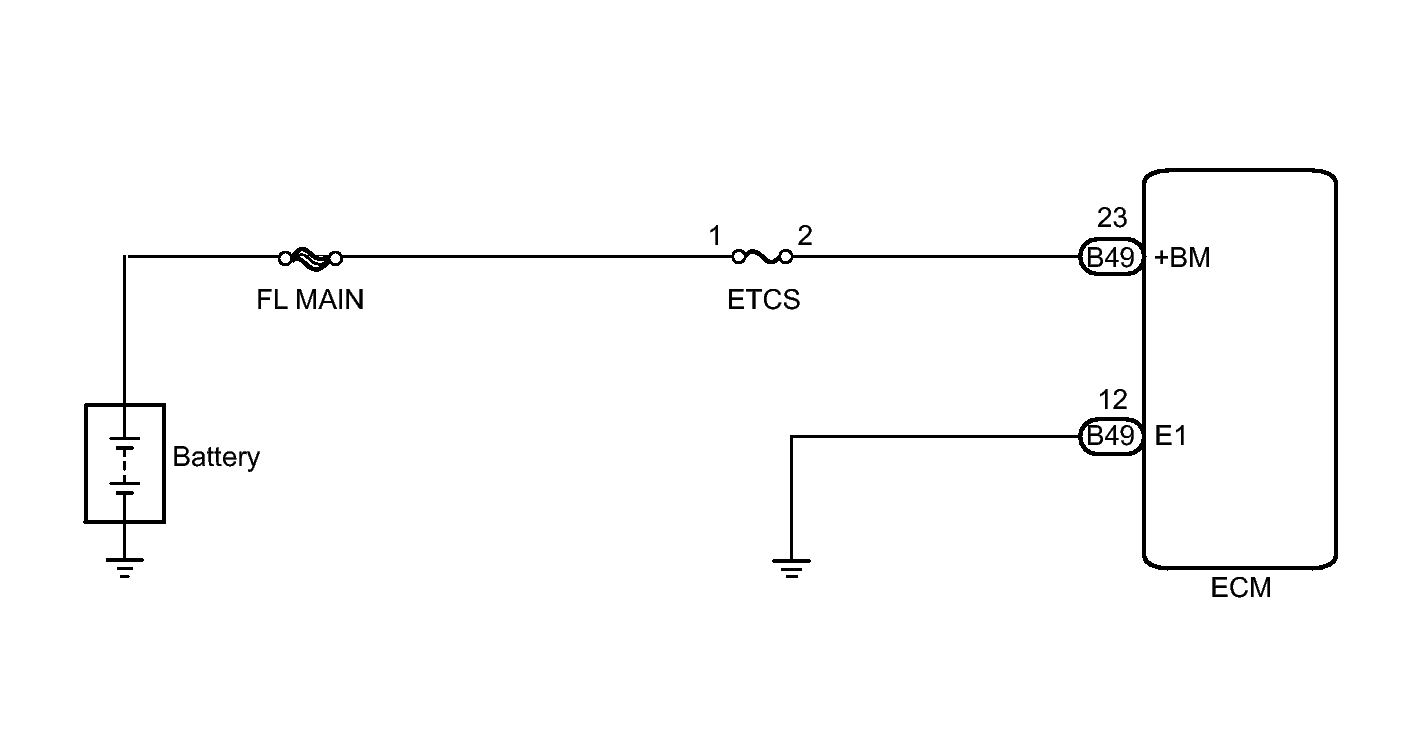

Fig 1: Identifying ECM Wiring Diagram
GTY296980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
