Section 63 (Engine Control System (2GR-FE) (Diagnostic Codes (P1604 - P2610) & Circuit Tests)))
>>
SFI System
>>
DTC P2102: Throttle Actuator Control Motor Circuit Low; DTC P2103: Throttle Actuator Control Motor Circuit High
>>
Wiring Diagram
DTC P2102: Throttle Actuator Control Motor Circuit Low; DTC P2103: Throttle Actuator Control Motor Circuit High: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

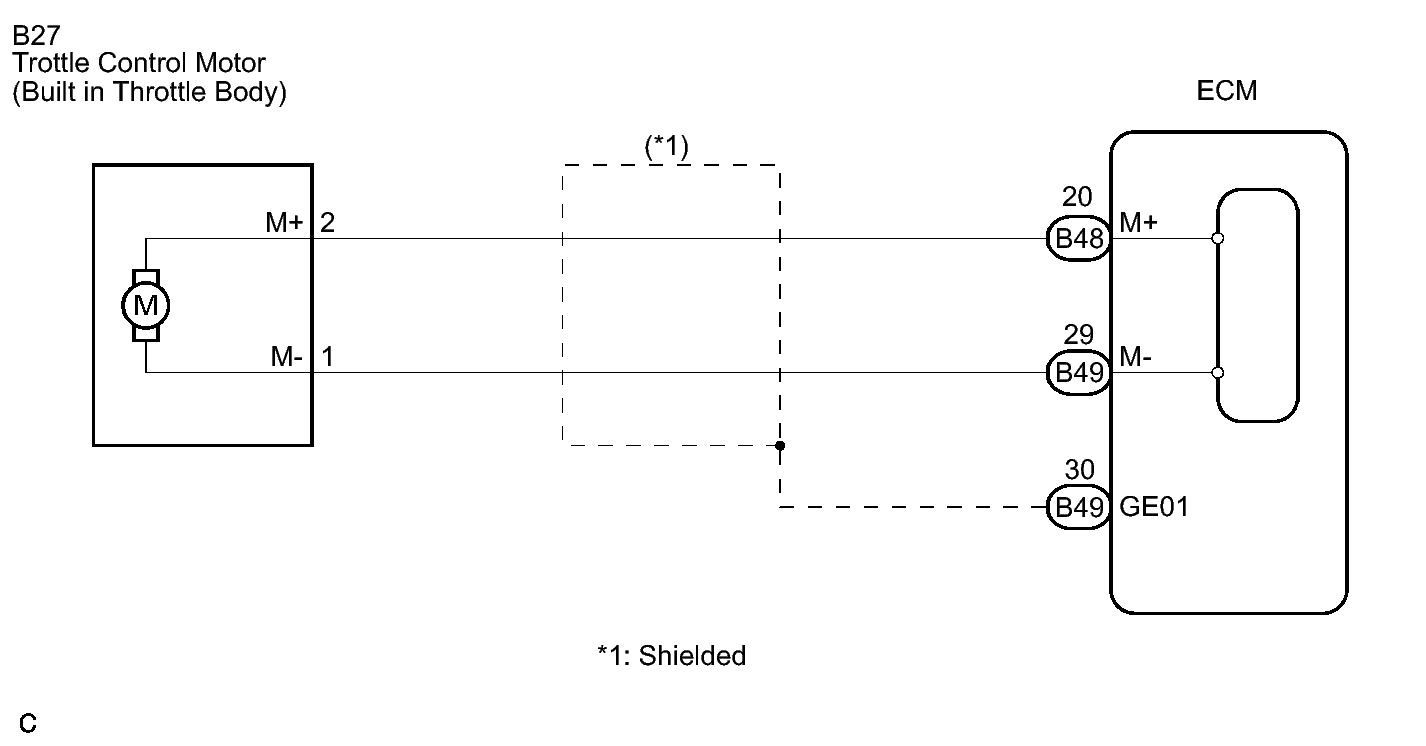

Fig 1: Identifying Throttle Control Motor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
