Cranking Holding Function Circuit: Description
WARNING: This page is about a different variant/trim than selected.

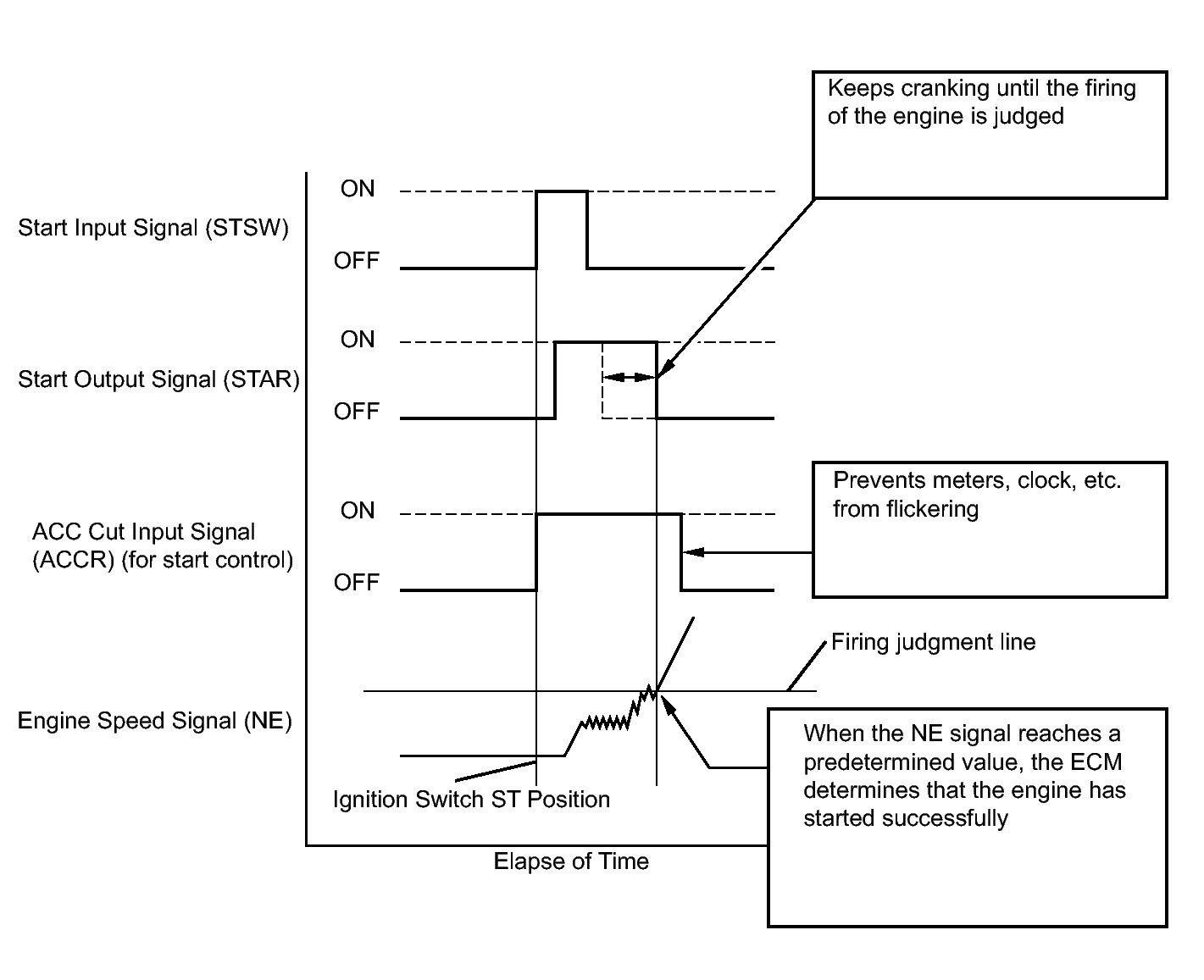

The system detects the ignition switch's starting signal (STSW) and then supplies current to the starter until the ECM judges that the engine has started successfully. The purpose is to reduce the holding time of the ignition key.
