Active Control Engine Mount System: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK VACUUM HOSES
    1. If the hose is damaged, replace the vacuum hose assembly.

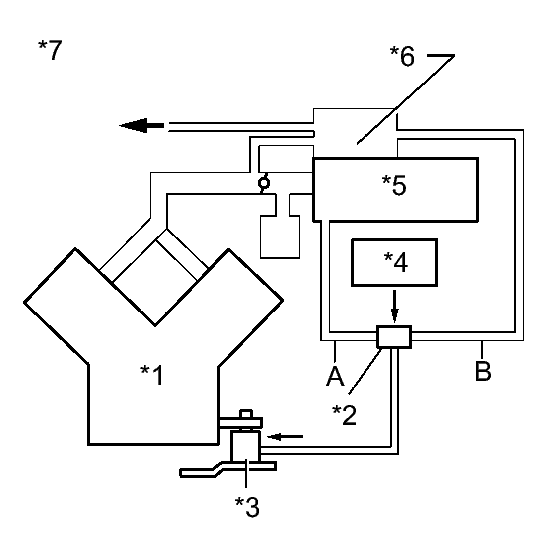

      Fig 1: Identifying Air & Vacuum Hose System Components
      GTY170294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the air and vacuum hoses for looseness, disconnection and blockage.
      TEXT IN ILLUSTRATION

      *1 Engine
      *2 VSV
      *3 Engine Mounting Insulator FR
      *4 ECM
      *5 Air Cleaner
      *6 Vacuum Tank
      *7 Intake Air Control Valve Actuator

    NG → REPAIR OR REPLACE VACUUM HOSES

    OK: Go to next step

  2. CHECK VACUUM TANK
    1. Check the vacuum tank, refer to ON-VEHICLE INSPECTION .

    NG → REPLACE AIR CLEANER CAP

    OK: Go to next step

  3. INSPECT ECM
    1. Connect the oscilloscope between terminals ACM and E1 of the ECM connectors.

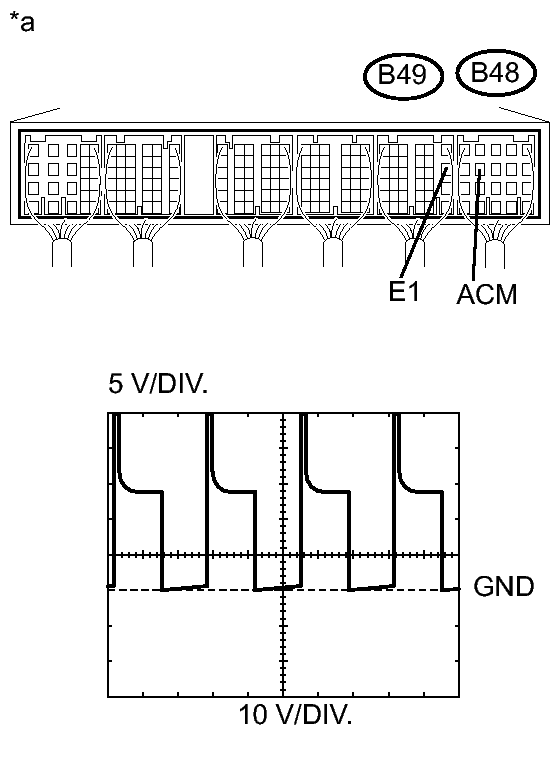

      Fig 2: Identifying ECM Connector & Waveform
      GTY299318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Warm up the engine to normal operating temperature.
    3. Turn the A/C switch on.
    4. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Condition Specified Condition
      B48-9 (ACM) - B49-12 (E1) Shift position is D, and engine speed is 850 RPM or less Pulse generation
      Shift position is D, and engine speed is 950 RPM or more 9 to 14 V
      Shift position is P 9 to 14 V
      TEXT IN ILLUSTRATION

      *a Component with harness connector
      (ECM)

    NG → See step   6

    OK: Go to next step

  4. INSPECT DUTY VACUUM SWITCHING VALVE (OPERATION)
    1. Remove the VSV for ACM.

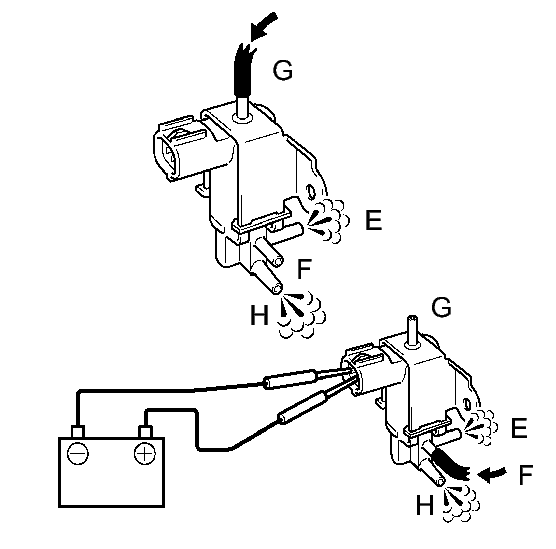

      Fig 3: Inspecting Duty Vacuum Switching Valve Operation
      GTY191104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check operation of the VSV for ACM when positive battery voltage is applied to the terminals of the VSV for ACM connector.

      Positive battery voltage is not applied

      The air from pipe G is flowing out through pipes E and H.

      Positive battery voltage is applied

      The air from pipe F is flowing out through pipes E and H.

    3. Reinstall the VSV for ACM.

    NG → See step   9

    OK: Go to next step

  5. INSPECT ENGINE MOUNTING INSULATOR ASSEMBLY FRONT
    1. Disconnect the vacuum hose from the front engine mount insulator.
      Fig 4: Inspecting Engine Mounting Insulator Assembly Front
      GTY121574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a vacuum pump, apply vacuum of 80 kPa (600 mmHg, 25 in.Hg) and wait for 1 minute.
    3. Check that there is no change in the needle movement of the vacuum pump gauge.
    4. Check that there is no fluid leakage caused by a break in the diaphragm.

      OK

      Vacuum pressure exists.

    5. Reconnect the vacuum hose.

    NG → See step   10

    OK → SYSTEM OK

  6. INSPECT DUTY VACUUM SWITCHING VALVE (RESISTANCE)
    1. Disconnect the VSV for ACM connector.

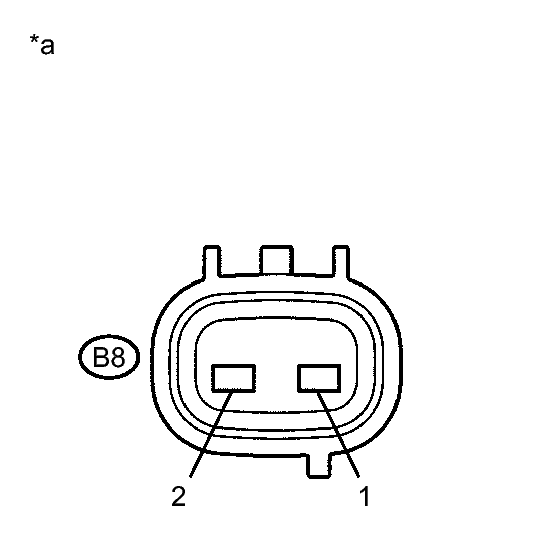

      Fig 5: Identifying VSV & ACM Connector
      GTY306285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 19 to 21 Ω
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (VSV for ACM Connector)
    3. Reconnect the VSV for ACM connector.

    NG → See step   9

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (VSV FOR ACM - ECM)
    1. Disconnect the VSV for ACM connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Check for open

      Check for open

      Tester Connection Condition Specified Condition
      B8-2 - B48-9 (ACM) Always Below 1 Ω
      Tester Connection Condition Specified Condition
      B8-2 or B48-9 (ACM) - Body ground Always 10 kΩ or higher
    4. Reconnect the ECM connector.
    5. Reconnect the VSV connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (VSV FOR ACM - ECM)

    OK: Go to next step

  8. INSPECT FUSE (EFI NO. 3 FUSE)
    1. Remove the EFI No. 3 fuse from the engine room relay block.

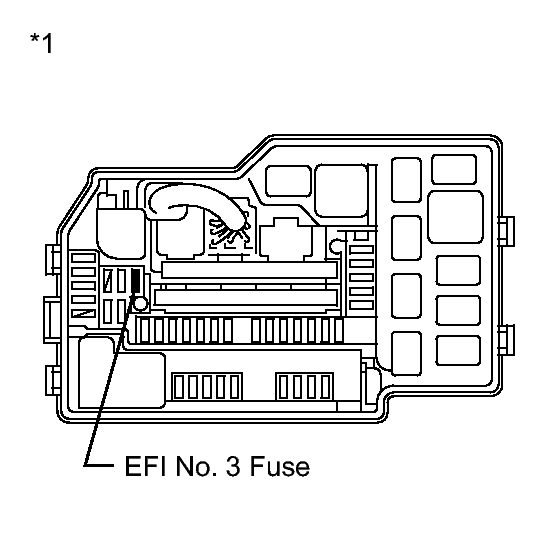

      Fig 6: Identifying Efi No. 3 Fuse From The Engine Room Relay Block
      GTY306355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      EFI No. 3 fuse Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Engine Room Relay Block
    3. Reinstall the EFI No. 3 fuse.

    NG → REPLACE FUSE (EFI NO. 3 FUSE)

    OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI NO. 3 FUSE - VSV FOR ACM)

  9. REPLACE DUTY VACUUM SWITCHING VALVE. Refer to  COMPONENTS
  10. REPLACE ENGINE MOUNTING INSULATOR ASSEMBLY FRONT. Refer to  COMPONENTS
