Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

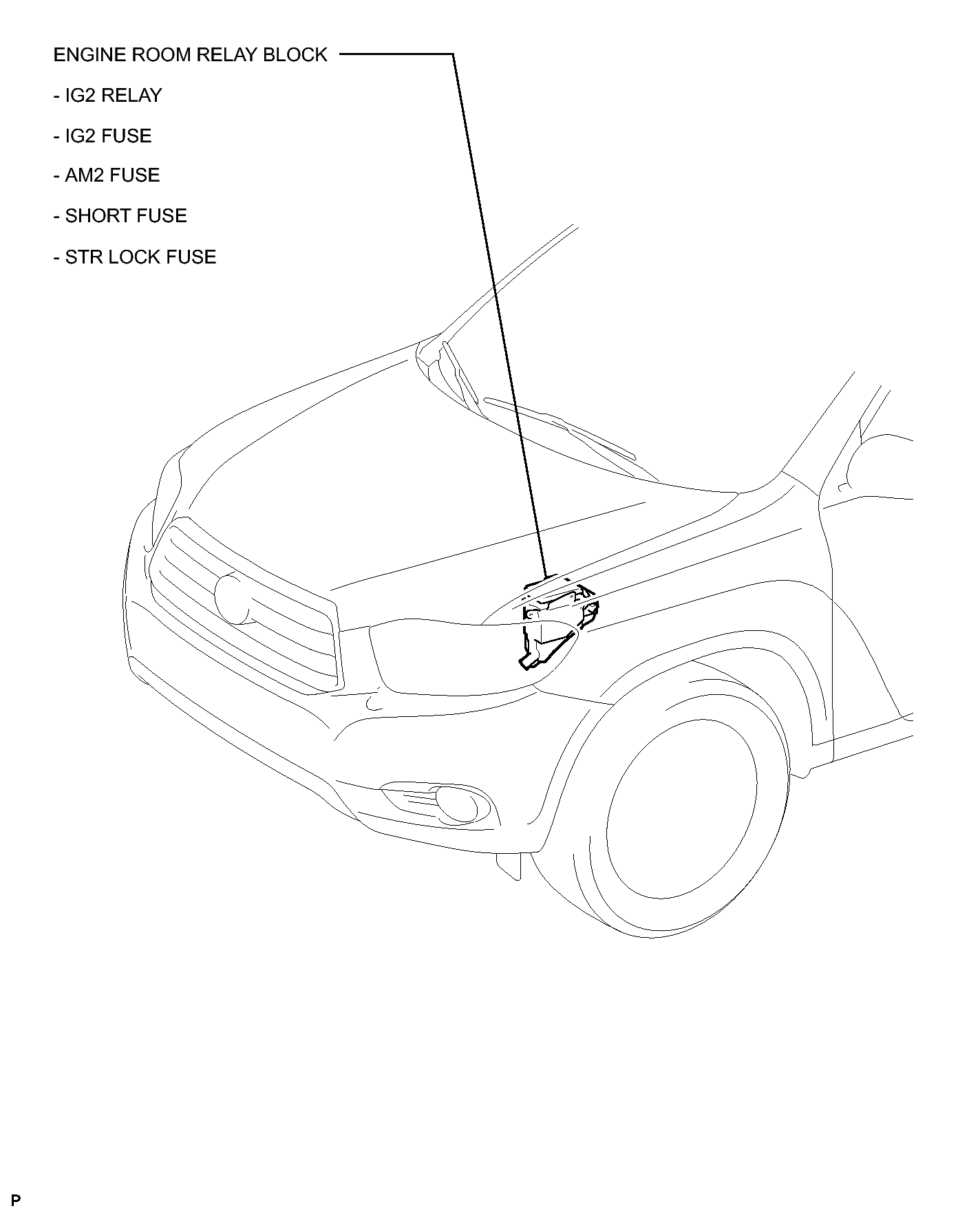

Fig 1: Identifying Steering Lock System Components (1 Of 2)
GTY177744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

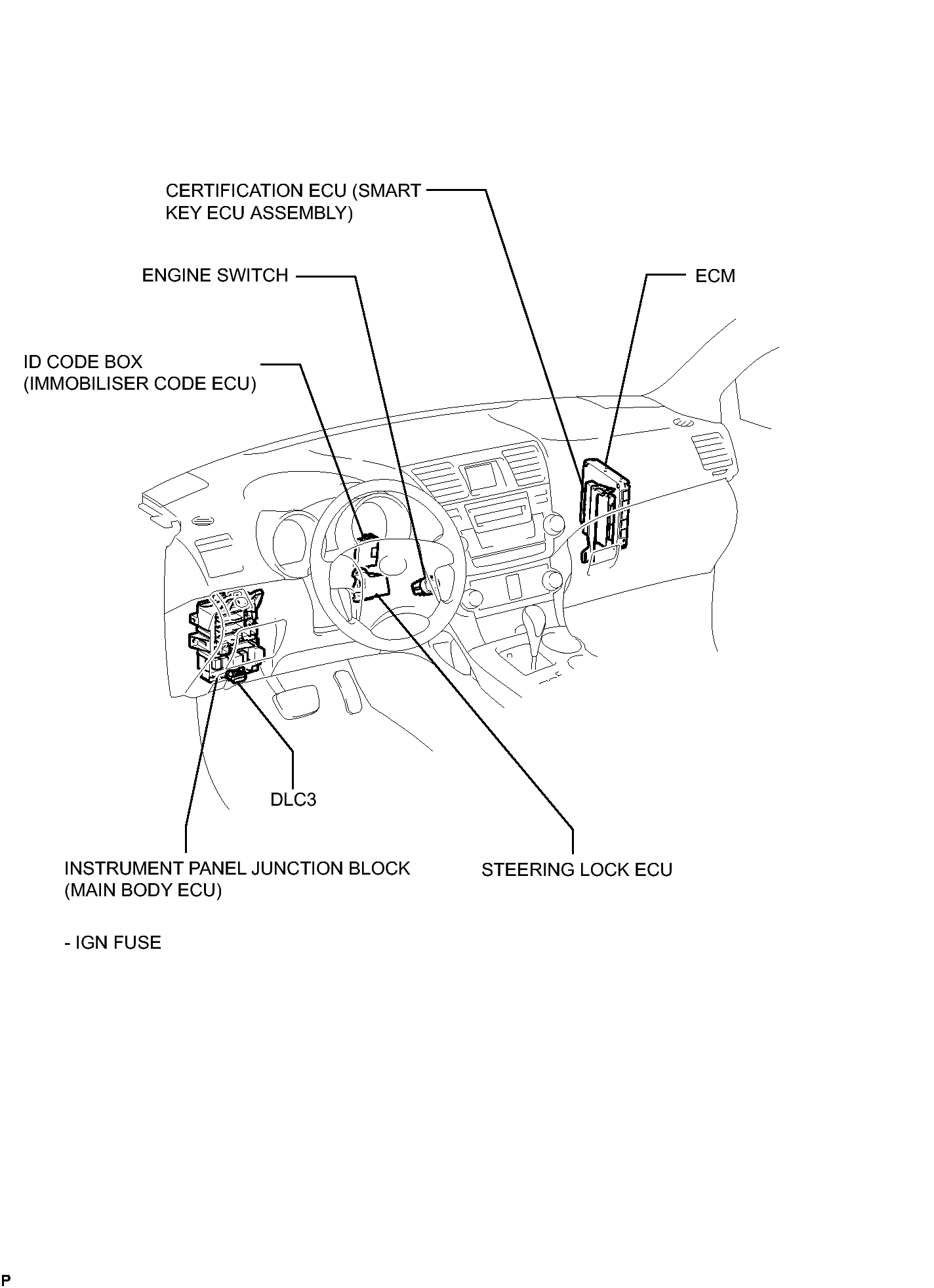

Fig 1: Identifying Steering Lock System Components (2 Of 2)
GTY204348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
