INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
1. Engage the claw and install the windshield wiper switch assembly.

  Fig 1: Locating Windshield Wiper Switch Assembly And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 connectors.
INSTALL STEERING COLUMN COVER
1. Engage the claw and install the upper steering column cover.

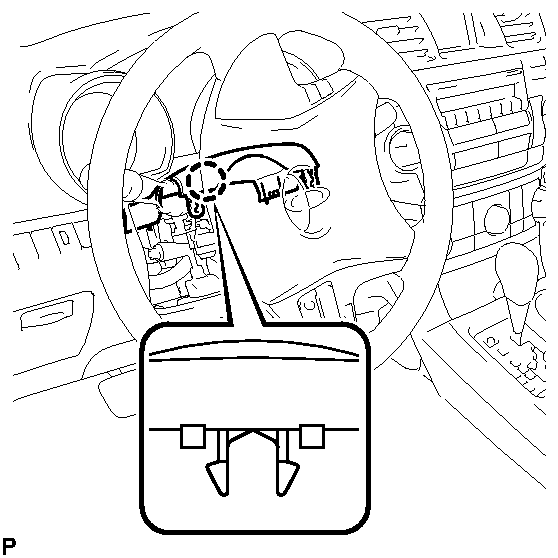

  Fig 2: Identifying Upper Steering Column Cover And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws and install the lower steering column cover.

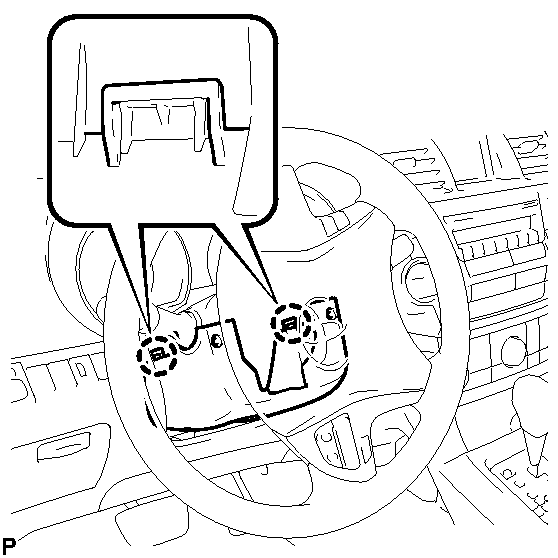

  Fig 3: Identifying Lower Steering Column Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn the steering wheel assembly to the left and install the screw as shown in the illustration.

  Fig 4: Locating Steering Wheel Assembly Screw (LEFT)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
4. Turn the steering wheel assembly to the right and install the screw as shown in the illustration.

  Fig 5: Locating Steering Wheel Assembly Screw (Right)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
