WASHER MOTOR (for Front Side): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

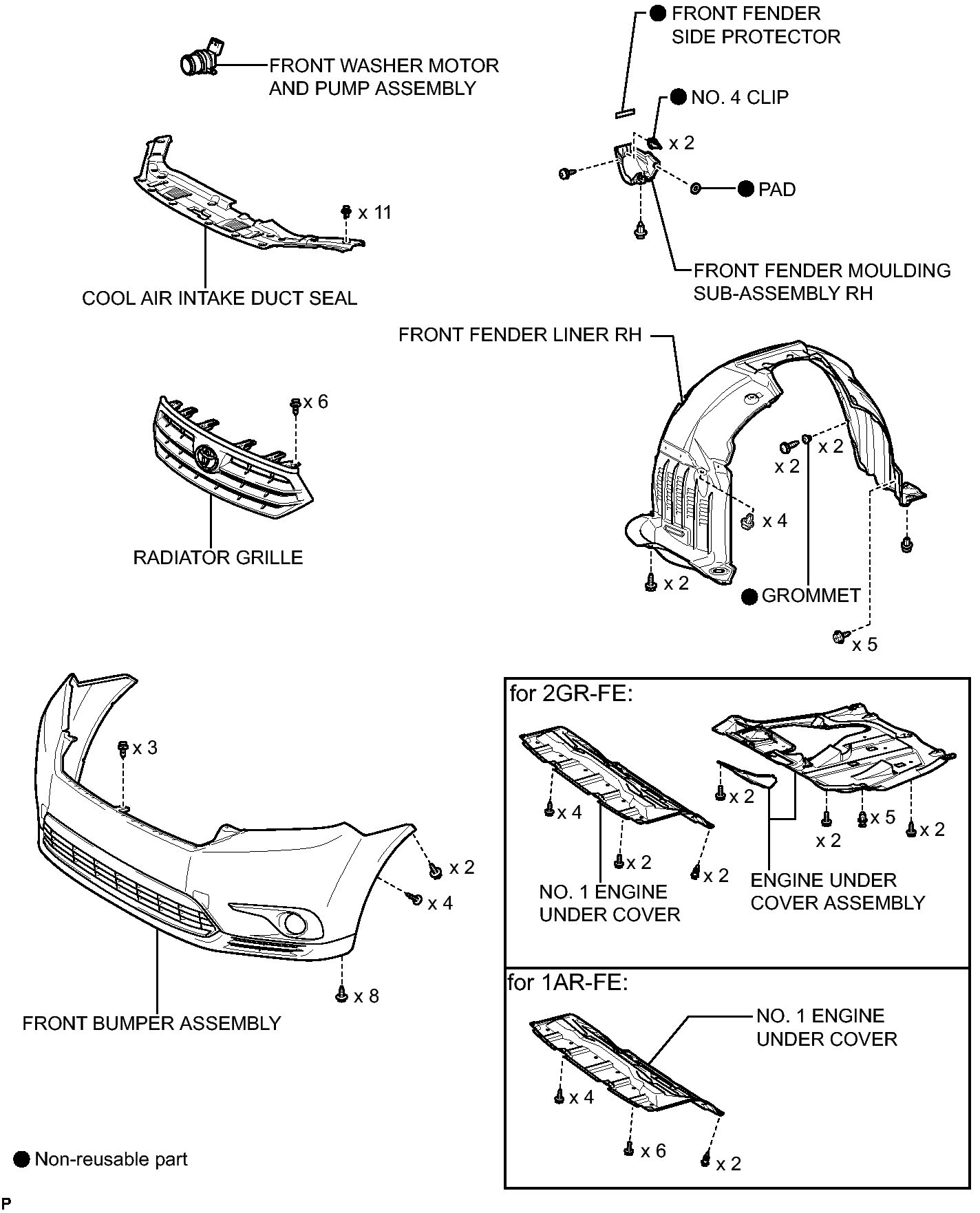

Fig 1: Identifying Front Side Washer Motor Replacement Components
GTY303399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
